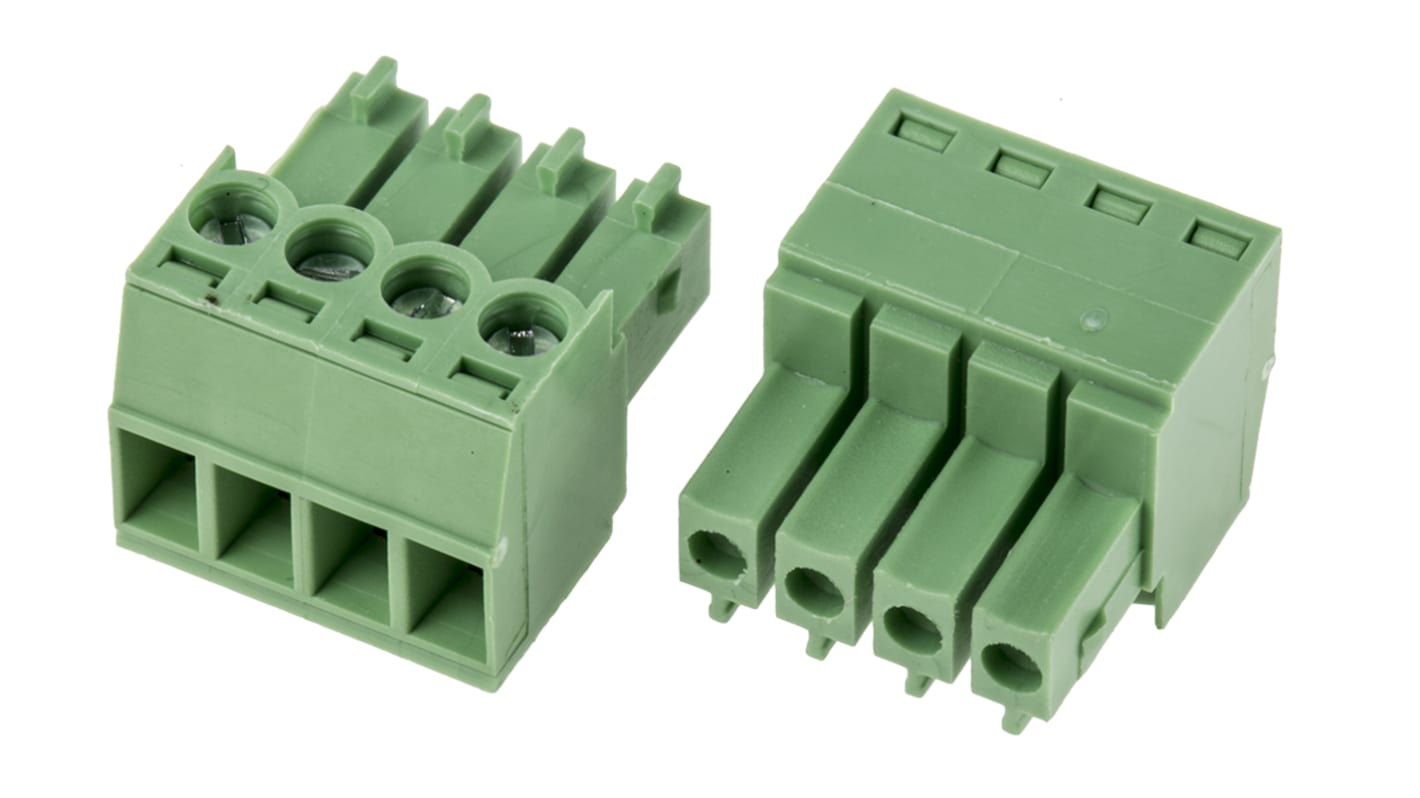

RS PRO CTB922HD Series Pluggable Terminal Block, 4-Contact, 3.5 mm Pitch, 1 Row

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩9,042.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 800 개 단위 배송 준비 완료
  • 추가로 2026년 3월 27일 부터 9,750 개 단위 배송
  • 추가로 2026년 6월 03일 부터 2,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 95₩1,808.56₩9,042.80
100 - 495₩1,759.68₩8,798.40
500 +₩1,447.60₩7,238.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
897-1004
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Number of Contacts

4

Product Type

Pluggable Terminal Block

Pitch

3.5mm

Number of Rows

1

Current

10A

Minimum Wire Size mm²

0.13mm²

Housing Material

Polyamide

Maximum Wire Size mm²

1.3mm²

Connector Gender

Female

Orientation

Right Angle

Colour

Green

Wire Connection Method

Screw

Voltage

200 V

Width

11.4 mm

Length

14mm

Standards/Approvals

RoHS

Depth

15.6mm

Series

CTB922HD

COO (Country of Origin):
CN

RS PRO 3.5 mm Pitch, 4-Way PCB Terminal Block


Looking for a safe and easy way to set up circuits on your PCB (printed circuit board)? This time-saving 4-way PCB terminal block can be used to connect two or more wires, and you can mount it directly on the board.

The block is pluggable for easy connections that can be quickly disconnected if there are any issues or adjustments needed. Through-hole mounting makes it straightforward to set up. The screw termination method allows connections to be secured simply. The PCB terminal block's steel screws are tin-plated to reduce corrosion, oxidation and degradation, as are the four contacts. This connector is highly versatile, accepting solid and strained cable with a wire size range of 0.13 mm² to 1.3 mm².

The housing of this PCB terminal block is made of green polyamide (PA66), which has a UL94-V0 certification, indicating good fire safety. The component has also been tested in order to meet our exacting RS PRO standards. It can be used effectively in anything from everyday electronics equipment to industrial circuitry.

Features and Benefits


• Green 4-way PCB Terminal Block

• Pitch of 3.5 mm

• Dimensions of 14 mm (length) x 15.6 mm (depth) x 11.4 mm (width)

• Single row

• Through-hole mounting

• Female connection (socket)

• Screw termination method

• Right-angle body orientation

• Current rating of 10 A

• Voltage rating of 200 V

• Made of Polyamide

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
