Phoenix Contact MINI COMBICON MC 3.81mm Pitch Terminal Block Plug Connectors
MINI COMBICON MC 3.81mm pitch mini plug-in cable mount terminal block connectors with a 0.14 - 1.5mm
2 screw connection and a horizontal wire entry.
MC Part numbers prefixed with 1827, 1848 and 1892 have a screw flange (MC 1,5 - STF)
Stock number
802-6296 has a pull-out aid
Stock numbers
804-2377,
804-2311 and
804-5124 have gold plated contacts
For marker card see stock number
648-5508For screwdriver see stock number
390-9663For cable housings see stock numbers
742-7409 and
804-2743
MINI COMBICON MC 3.81mm Features and Benefits:
• Maximum reliability due to high quality materials
• 3.81mm pitch
• Screw connection with termination device to help prevent loosening of wire in high vibration
• Copper alloy contact material with tin plated terminal points
• -40°c to +70°c operating temperatures
• Height of only 8mm above the board for a small compact fit
These connectors use a M2 slotted (L) screw. If you need a screwdriver, check out “
125-3078”
Approvals
UL (E60425); CSA (LR13631)

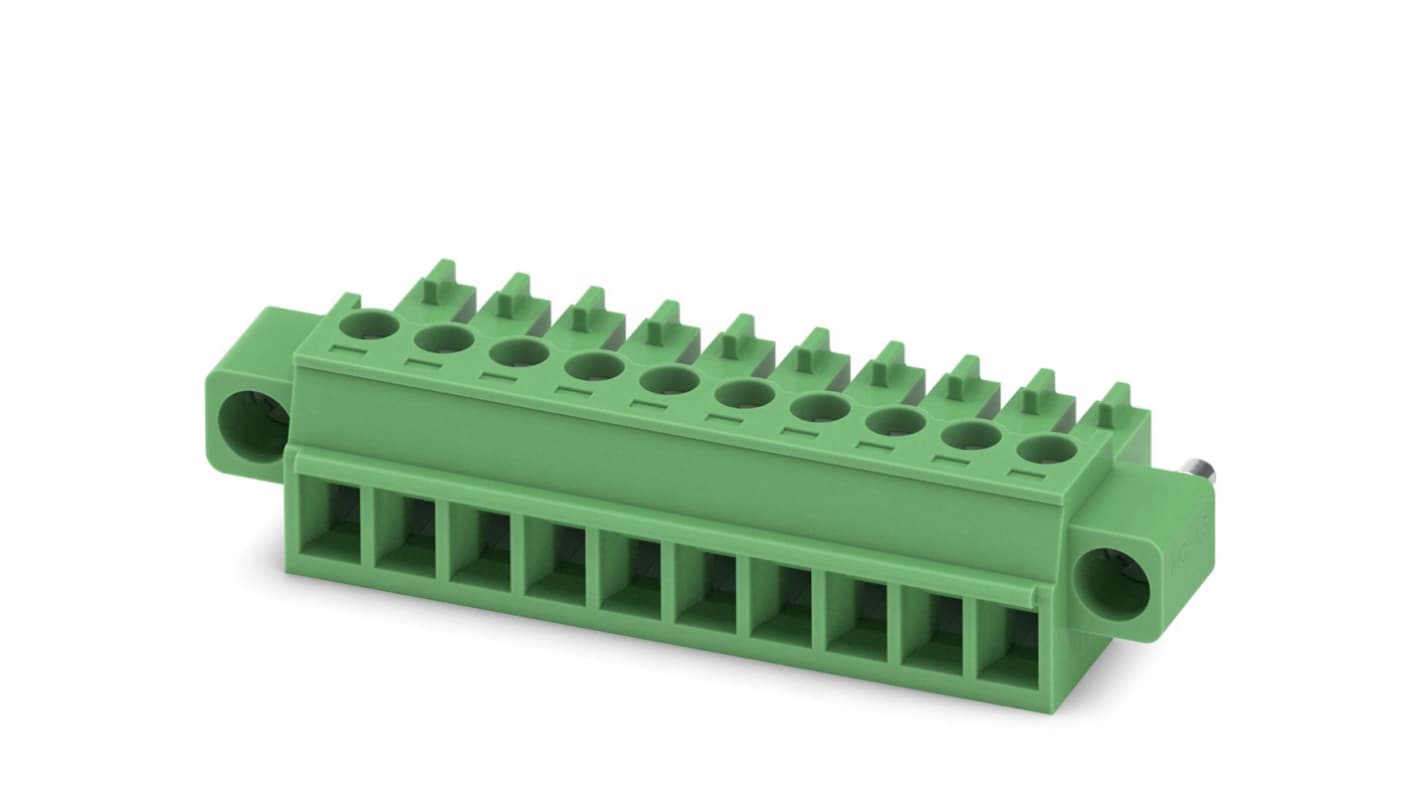

Phoenix Contact 10-Pin Pluggable Terminal Block, 3.81 mm Pitch - MC 1.5/10-STF-3.81 - 1827787
This Phoenix Contact terminal block allows you to safely transfer data, signals and power directly to your printed circuit board (PCB). It has a 3.81 mm pitch (the distance between pins) and is designed for a range of wires with a cross-sectional area of 0.14 mm² to 1.5 mm².
This block can provide up to 10 connections and, with a height of only 8 mm above the board, still offers a compact fit. It also comes with a screwable flange for superior mechanical stability. It comes with a screw termination method, which makes for secure connections. A tension sleeve prevents the loosening of wires.
The unit features tin-plated terminal points to maintain conductivity with greater resistance to wear and corrosion. The polyamide housing is durable and can withstand high temperatures.
• Straight body orientation
• Cable mounting type
• Plug type
• Female gender
• Single row
• Dimensions of 48.49 (length) x 16.1 (width) x 11.1 mm (depth)
• Current rating of 8 A
• Voltage rating of 320 V
• Green in colour
