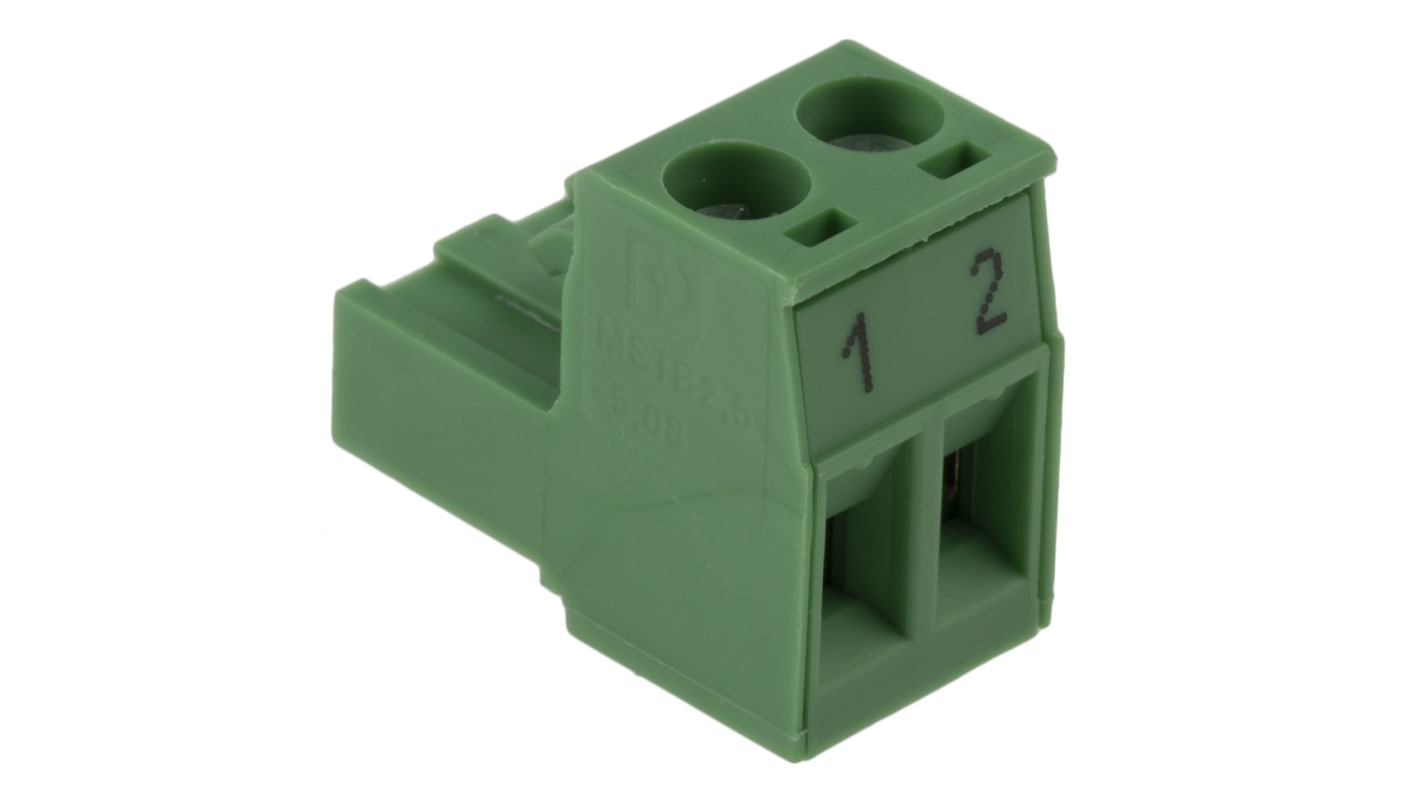

Phoenix Contact MSTB 2.5/2-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1758364
- RS 제품 번호:
- 802-5919
- 제조사 부품 번호:
- 1758364
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩2,782.40
재고있음
- 682 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩2,782.40 |
| 25 - 99 | ₩2,707.20 |
| 100 + | ₩2,594.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 802-5919
- 제조사 부품 번호:
- 1758364
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 5.08mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Horizontal | |
| Wire Connection Method | Spring Cage | |
| Colour | Green | |
| Voltage | 320 V | |
| Depth | 15mm | |
| Width | 10.16 mm | |
| Series | MSTB 2.5/2-5.08 | |
| Standards/Approvals | No | |
| Length | 18.3mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Current 12A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Horizontal | ||
Wire Connection Method Spring Cage | ||
Colour Green | ||
Voltage 320 V | ||
Depth 15mm | ||
Width 10.16 mm | ||
Series MSTB 2.5/2-5.08 | ||
Standards/Approvals No | ||
Length 18.3mm | ||
- COO (Country of Origin):
- DE
Phoenix Contact Pluggable Terminal Block, 18.3 (L) x 10.16 (W) x 15mm (H), 3.4g Weight - MSTB 2,5/ 2-ST-5,08 BD:1- 2 - 1758364
Need an easy way to make or break electrical connections to your printed circuit board? Link up with this pluggable terminal block from Phoenix Contact. For super-quick installation, it features two female sockets that slot into a male base attached to the PCB. This not only saves time during set-up, but it also means it's a breeze to disconnect your cables for maintenance and troubleshooting. That's why you'll find devices like this one commonly used in equipment testing applications and HVAC technology.
Tin-plated copper alloy contacts offer reliable conductivity and corrosion resistance for long-lasting performance. The tough polyamide housing can handle a challenging industrial environment with ease. Thanks to its high electrical resistance, this hardy material also protects your circuits by keeping conductors well insulated from each other. Plus, as polyamide is self-extinguishing in under 10 seconds to help prevent fire hazards, this sturdy piece of kit is a safety-boosting solution for your industrial electronics.
Features & Benefits
• Compact dimensions of 18.3 (L) x 10.16 (W) x 15mm (H) won't take up much space on a crowded board
• 24 to 12AWG cable size range offers flexible wiring options
• Straightforward screw terminal method lets you achieve secure connections in a jiffy
