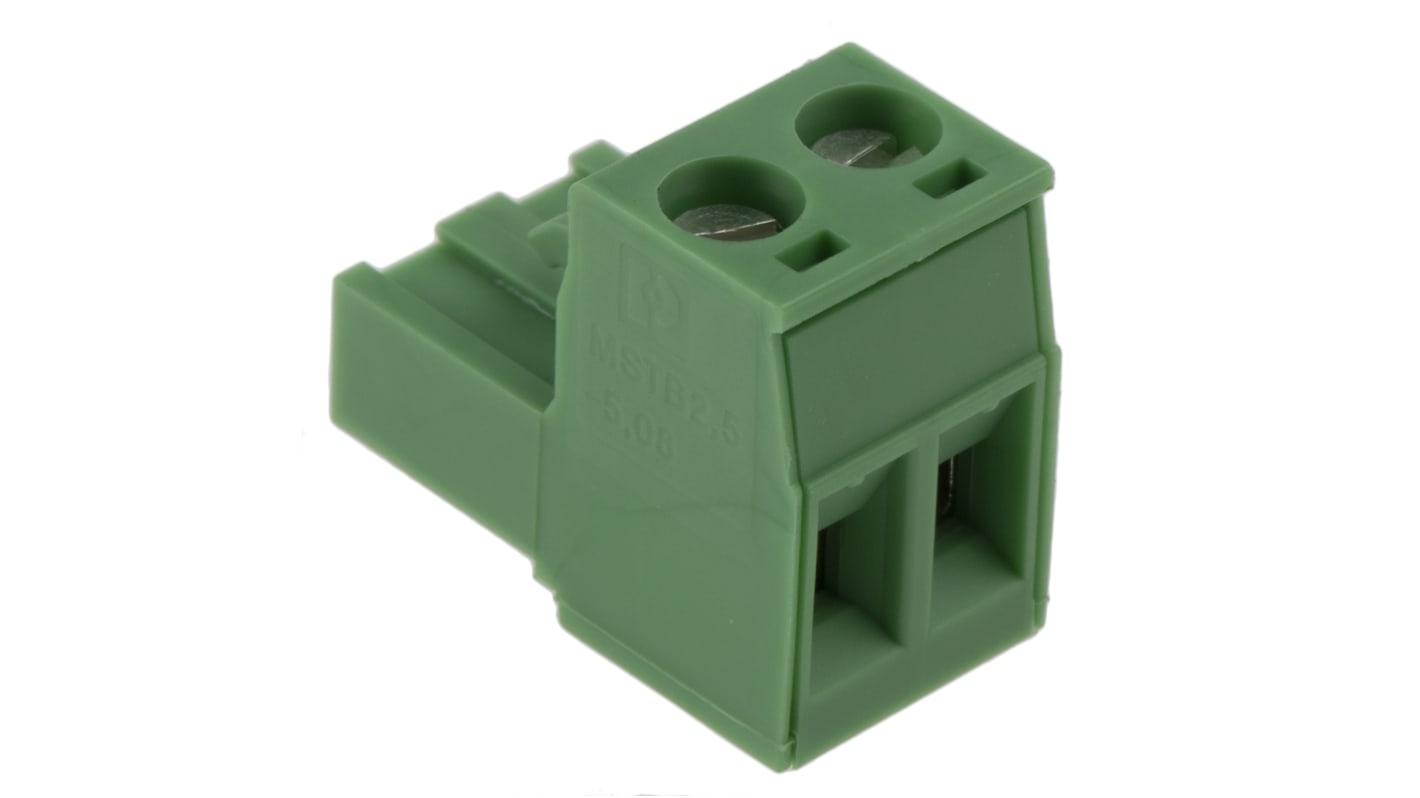

Phoenix Contact MSTB 2.5/2-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1757019

RS 제품 번호:: 189-6010
Distrelec 제품 번호:: 304-28-351
제조사 부품 번호:: 1757019
제조업체:: Phoenix Contact

Phoenix Contact MSTB 2.5/2-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1757019

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩12,238.80

재고있음

6,015 개 단위 배송 준비 완료
추가로 2026년 4월 24일 부터 1,300 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 370	₩2,447.76	₩12,238.80
375 - 1995	₩2,346.24	₩11,731.20
2000 +	₩2,252.24	₩11,261.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 189-6010
Distrelec 제품 번호:: 304-28-351
제조사 부품 번호:: 1757019
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Pluggable Terminal Block
	Number of Contacts	2
	Pitch	5.08mm
	Current	12A
	Number of Rows	1
	Minimum Wire Size mm²	0.2mm²
	Housing Material	Polyamide
	Maximum Wire Size mm²	4mm²
	Connector Gender	Female
	Minimum Wire Size AWG	24 AWG
	Maximum Wire Size AWG	12 AWG
	Orientation	Straight
	Wire Connection Method	Screw
	Colour	Green
	Voltage	320 V
	Standards/Approvals	No
	Series	MSTB 2.5/2-5.08
	Width	10.16 mm
	Depth	15mm
	Length	18.3mm

	모두 선택
	브랜드 Phoenix Contact
	Product Type Pluggable Terminal Block
	Number of Contacts 2
	Pitch 5.08mm
	Current 12A
	Number of Rows 1
	Minimum Wire Size mm² 0.2mm²
	Housing Material Polyamide
	Maximum Wire Size mm² 4mm²
	Connector Gender Female
	Minimum Wire Size AWG 24 AWG
	Maximum Wire Size AWG 12 AWG
	Orientation Straight
	Wire Connection Method Screw
	Colour Green
	Voltage 320 V
	Standards/Approvals No
	Series MSTB 2.5/2-5.08
	Width 10.16 mm
	Depth 15mm
	Length 18.3mm

COO (Country of Origin):: DE

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 2 Way - MSTB 2.5/2-5.08 - 1757019

The 1757019 terminal block from Phoenix Contact can be used to safely transmit power and data directly to your printed circuit boards (PCBs). Its compact design means that it's suitable for use in small spaces and at just 3.48g, it's easy to handle and won't add strain to your setup.

The component's polyamide (PA) body material offers excellent durability and impact resistance, so you can use it in harsh environments. This material also has effective insulation properties, protecting you from electrical shocks. Its copper-alloy contacts are highly conductive and offer you a reliable connection. These contacts are tin-plated to provide corrosion resistance, so you can use them for a long time without having to worry about rust.

Thanks to a screw termination method, installation is easy and doesn't need complex tools. A tension sleeve ensures there's no accidental disconnection, making this a useful choice for vibrating systems.

1757019 - Features & Benefits:

• Voltage rating of 630V for heavy-duty applications

• Compatible with wire size range of 12 to 30 AWG (American Wire Gauge) for versatile use

• Rated surge voltage of 4kV to withstand sudden spikes for electrical safety

• Contact material – Copper Alloy

• Contact plating – Tin

• UL94 V-0 flammability rating

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection

• Well-known connection principle allows you to use worldwide

• Maximum contact force gives low temperature rise

• Long service life

Approvals

UL; CSA
