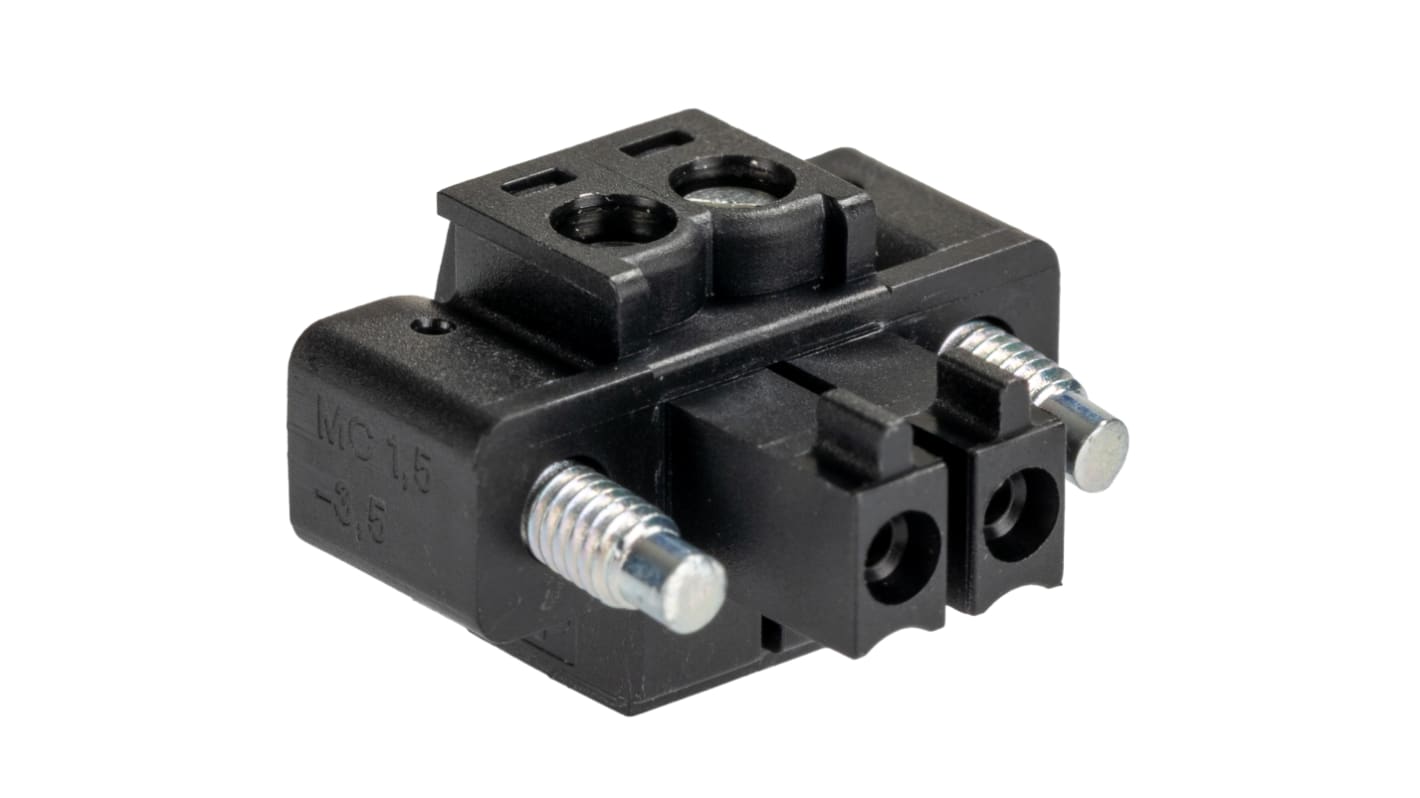

Phoenix Contact, 3.5mm Pitch, 2 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, 1714977
- RS 제품 번호:
- 802-0516
- 제조사 부품 번호:
- 1714977
- 제조업체:
- Phoenix Contact
가격 개당가격(50개가 1팩안에)**
Was ₩145,286.96
귀하의 지불
₩2,469.74
100 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 | 한팩당** |
|---|---|---|
| 50 + | ₩2,469.74 | ₩123,487.00 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 802-0516
- 제조사 부품 번호:
- 1714977
- 제조업체:
- Phoenix Contact
- COO (Country of Origin):
- DE
Phoenix Contact MINI COMBICON MC 3.5mm Terminal Block Plug Connectors
The 1840379 from Phoenix Contact is a brilliant and well-known PCB terminal block. It comes from Phoenix's brilliant range of 'MINI COMBICON MC' connectors and has a 3.5mm pitch, 0.14 – 1.5mm2 screw connection and horizontal wire entry. This PCB terminal block is massively versatile and allows connection of many products due to is worldwide known connection method and features a minimal temperature rise thank to its maximum contact force.
Features and benefits:
- Nominal current of 8A
- 3.5mm pitch
- Screw-in connection method for a tight connection
- Low temperature rise
- Up-to 1.5 mm2 wire
Accessories:
Phoenix Contact MC 1.5/2-STF-3.5 BK Series Pluggable Terminal Block, 3.5mm Pitch, Screw Termination Method - 1714977
This pluggable terminal block is designed to ensure dependable connections across various electrical applications. Its compact design and flexible mounting options make it a key component for effective cable management in automation and control systems, appealing to professionals in the electronics and electrical fields.
Features & Benefits
• Nominal current rating of 8A for improved performance
• Voltage rating of 160V to ensure safety
• Screw termination method for secure connections
• 3.5mm pitch to support compact designs
• Black housing offers adaptability for various uses
• Capable of accommodating up to two conductor connections for efficiency
• Voltage rating of 160V to ensure safety
• Screw termination method for secure connections
• 3.5mm pitch to support compact designs
• Black housing offers adaptability for various uses
• Capable of accommodating up to two conductor connections for efficiency
Applications
• Interconnecting electrical circuits in automation systems
• Suitable for PCB requiring compact, dependable connections
• Utilised in control panels for different electrical devices
• Employed in machinery where secure wiring connections are essential
• Used in power distribution to maintain stable electrical flows
• Suitable for PCB requiring compact, dependable connections
• Utilised in control panels for different electrical devices
• Employed in machinery where secure wiring connections are essential
• Used in power distribution to maintain stable electrical flows
How can I ensure proper installation of the product?
It is essential to follow the manufacturer's guidelines regarding conductor sizes and stripping lengths for optimal performance.
Can this product be used in outdoor applications?
This product is best suited for indoor use
environmental factors should be considered for outdoor applications.
What is the maximum conductor cross-section this can accommodate?
It can accept rigid and flexible conductors with a maximum cross-section of up to 1.5mm².
Will this work in high-vibration environments?
Although the product has passed mechanical tests, additional measures may be required for securing connections in high-vibration applications.
How do I clean the terminals if they get dirty?
Use a soft, dry cloth to gently wipe away debris from the terminals to ensure optimal conductivity.
Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks
속성 | 값 |
|---|---|
| Pluggable Terminal Block Type | Plug |
| Number of Contacts | 2 |
| Pitch | 3.5mm |
| Series | MC 1.5/2-STF-3.5 BK |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Termination Method | Screw |
| Current Rating | 8A |
| Voltage Rating | 160 V |
| Colour | Black |
| Wire Size | 28 → 16 AWG |
| Contact Material | Copper Alloy |
| Material | Polyamide |
| Contact Plating | Tin |
