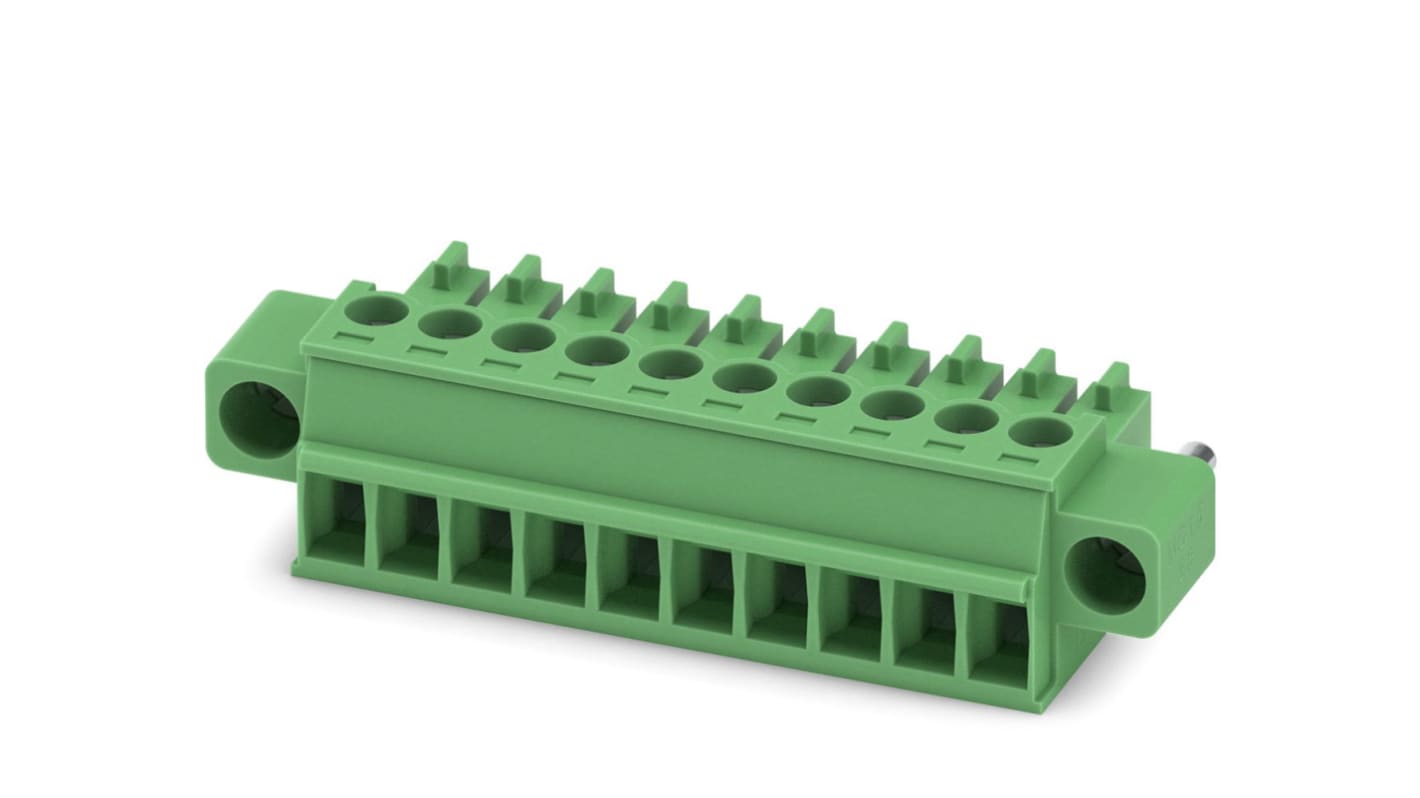

Phoenix Contact 5, 5/10-STF-3, MC 1 Series Pluggable Terminal Block, 10-Contact, 3.5 mm Pitch, 1 Row, 1847204
- RS 제품 번호:
- 241-5970
- 제조사 부품 번호:
- 1847204
- 제조업체:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
₩802,230.00
재고있음
- 추가로 2026년 6월 15일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 + | ₩16,044.60 | ₩802,230.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 241-5970
- 제조사 부품 번호:
- 1847204
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 10 | |
| Pitch | 3.5mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 2mm² | |
| Housing Material | Polyamide | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 0° | |
| Colour | Green | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Voltage | 160V | |
| Length | 16.1mm | |
| Series | 5, 5/10-STF-3, MC 1 | |
| Depth | 11.1mm | |
| Width | 45.3mm | |
| Standards/Approvals | CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 10 | ||
Pitch 3.5mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 2mm² | ||
Housing Material Polyamide | ||
Connector Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 0° | ||
Colour Green | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Voltage 160V | ||
Length 16.1mm | ||
Series 5, 5/10-STF-3, MC 1 | ||
Depth 11.1mm | ||
Width 45.3mm | ||
Standards/Approvals CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | ||
- COO (Country of Origin):
- DE
The Phoenix Contact's PCB connector has nominal cross section of 1.5 mm2, nominal current of 8 A and rated voltage (III/2) of 160 V.
Type standard
Number of positions 10
Number of connections 10
Number of rows 1
Connector system MINI COMBICON
Mounting flange screw flange
Number of potentials 10
