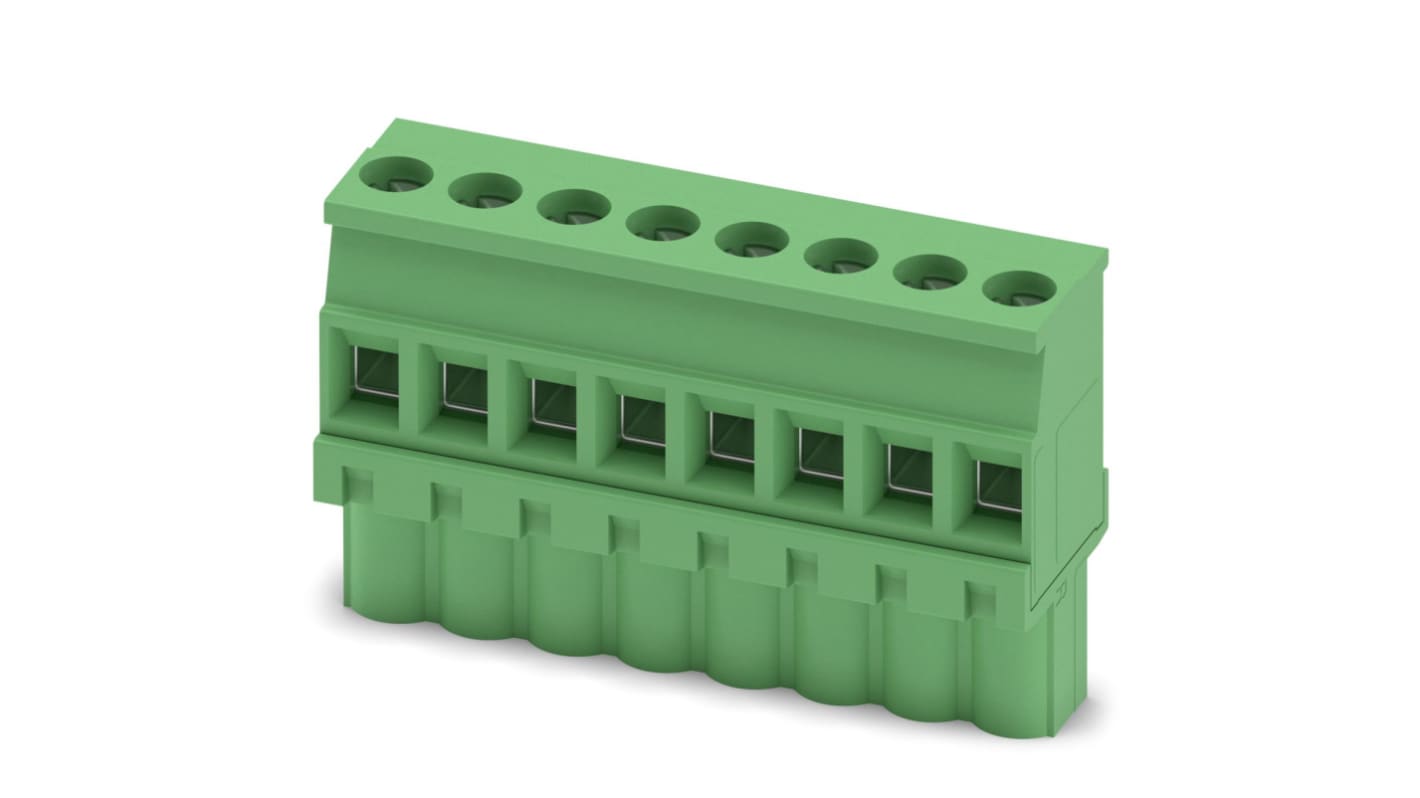

Phoenix Contact, 5.08mm Pitch, MVSTBW 2.5/ 8-ST-5.08, 8 Way, Pluggable Terminal Block, Plug, Cable Mount, Screw Down
- RS 제품 번호:
- 648-7992
- 제조사 부품 번호:
- 1792812
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩8,836.00
제한된 재고
- 275 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 74 | ₩8,836.00 |
| 75 - 399 | ₩8,460.00 |
| 400 + | ₩8,140.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 648-7992
- 제조사 부품 번호:
- 1792812
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Pluggable Terminal Block Type | Plug | |
| Number of Contacts | 8 | |
| Pitch | 5.08mm | |
| Series | MVSTBW 2.5/ 8-ST-5.08 | |
| Mounting Type | Cable Mount | |
| Termination Method | Screw Down | |
| Current Rating | 12A | |
| Voltage Rating | 320 V | |
| Colour | Green | |
| Wire Size | 24 → 12 AWG | |
| Contact Plating | Tin | |
| Material | Nylon | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Pluggable Terminal Block Type Plug | ||
Number of Contacts 8 | ||
Pitch 5.08mm | ||
Series MVSTBW 2.5/ 8-ST-5.08 | ||
Mounting Type Cable Mount | ||
Termination Method Screw Down | ||
Current Rating 12A | ||
Voltage Rating 320 V | ||
Colour Green | ||
Wire Size 24 → 12 AWG | ||
Contact Plating Tin | ||
Material Nylon | ||
- COO (Country of Origin):
- DE
Phoenix Contact CLASSIC COMBICON MVSTBR & MVSTBW 5.08mm Plug-in Terminal Block Connectors
The MVSTBR and MVSTBW series of PCB connectors are from the series 'CLASSIC COMBICON' and feature and 5.08mm pitch and a 0.2mm² to 2.5mm² screw connection terminal. Screw connections provide a strong connection and an easy install and also have a low-temperature rise thanks to the maximum contact force. Rated at 12 A, these PCB connectors will be suitable for most applications and they also have a well-known connection principle that allows you to incorporate these into designs to be used worldwide.
Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.
Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.
Features and benefits:
- Universal 5.08mm pitch
- Well known connection principle allows for worldwide use
- Easy screw connection with tension sleeves
- Allows connection of two conductors
- Connectors come in various positions ranging from 2 to 24 way
- Once mated, allows for effortless push-in connection to PCB blocks
Applications:
The MVSTBR and MVSTBW series can be used in the below applications, but are not limited to:
- Control wiring
- Instrumentation
- Control and measurement
- Industrial electronics
Approvals
UL, CUL, CSA
