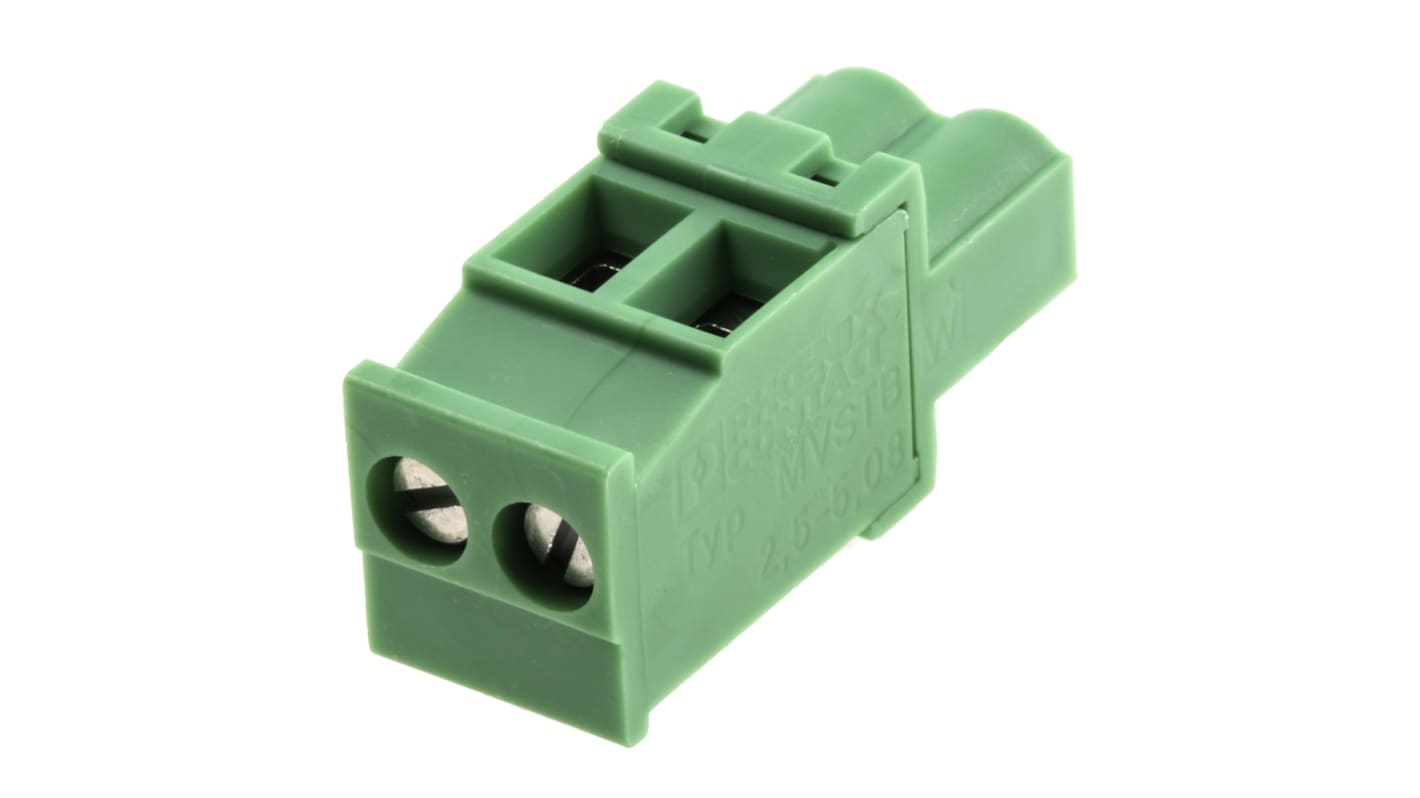

Phoenix Contact MVSTBW 2.5/2-ST-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1792757

RS 제품 번호:: 648-7958
Distrelec 제품 번호:: 304-09-794
제조사 부품 번호:: 1792757
제조업체:: Phoenix Contact

Phoenix Contact MVSTBW 2.5/2-ST-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 1792757

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩3,120.00

285 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 99	₩3,120.00
100 - 499	₩3,000.00
500 +	₩2,860.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 648-7958
Distrelec 제품 번호:: 304-09-794
제조사 부품 번호:: 1792757
제조업체:: Phoenix Contact

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Pluggable Terminal Block
	Number of Contacts	2
	Pitch	5.08mm
	Current	12A
	Number of Rows	1
	Housing Material	Polyamide
	Minimum Wire Size mm²	0.2mm²
	Maximum Wire Size mm²	2.5mm²
	Connector Gender	Male
	Minimum Wire Size AWG	24AWG
	Maximum Wire Size AWG	12AWG
	Orientation	Right Angle
	Colour	Green
	Wire Connection Method	Screw
	Voltage	320V
	Width	10.16mm
	Length	12.5mm
	Depth	26mm
	Standards/Approvals	No
	Series	MVSTBW 2.5/2-ST-5.08

	모두 선택
	브랜드 Phoenix Contact
	Product Type Pluggable Terminal Block
	Number of Contacts 2
	Pitch 5.08mm
	Current 12A
	Number of Rows 1
	Housing Material Polyamide
	Minimum Wire Size mm² 0.2mm²
	Maximum Wire Size mm² 2.5mm²
	Connector Gender Male
	Minimum Wire Size AWG 24AWG
	Maximum Wire Size AWG 12AWG
	Orientation Right Angle
	Colour Green
	Wire Connection Method Screw
	Voltage 320V
	Width 10.16mm
	Length 12.5mm
	Depth 26mm
	Standards/Approvals No
	Series MVSTBW 2.5/2-ST-5.08

COO (Country of Origin):: DE

Phoenix Contact MVSTBW 2.5/ 2-ST-5.08 Series Pluggable Terminal Block, 2 Contacts, 12A Current Rating - 1792757

This pluggable terminal block is a PCB connector designed for efficient electrical connections with a current rating of 12A and a voltage rating of 320V. The connector features a straight body orientation with a 5.08mm pitch, accommodating up to 2 positions, and is ideal for compact mounting applications.

Features & Benefits

• Screw down termination for secure connections

• Durable copper alloy contact material

• 12A current rating suitable for power distribution

Applications

• Automation control systems

• Electrical panel connections

• Instrumentation equipment

• PCB modules

• Mechanical and electrical assembly

Can it handle both rigid and flexible conductors?

Yes, it accommodates conductor cross sections from 0.2mm² to 2.5mm².

Is it compliant with environmental standards?

Yes, it is WEEE/RoHS compliant.

Approvals

UL, CUL, CSA
