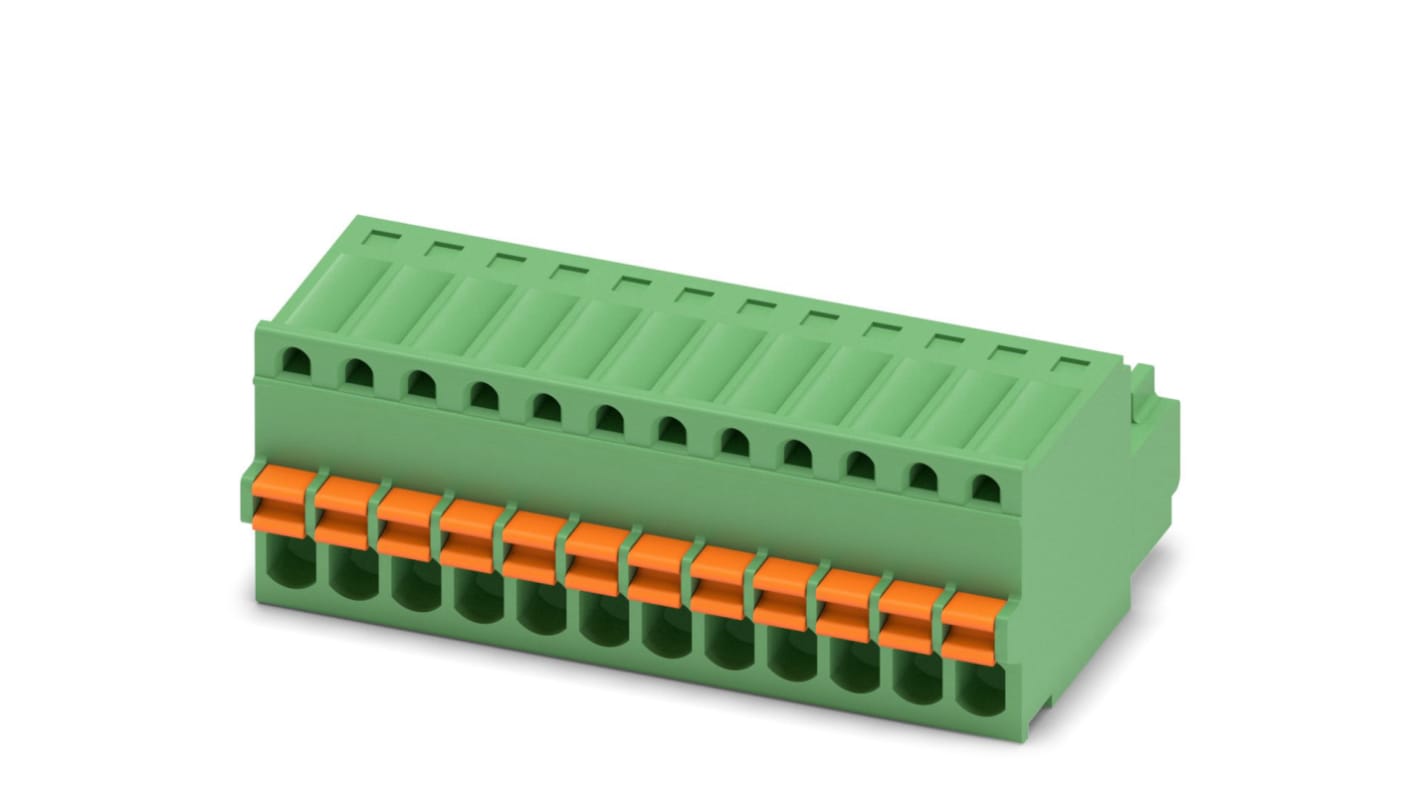

Phoenix Contact FK-MC 0.5/12-ST-2.5 Series Pluggable Terminal Block, 12-Contact, 2.5 mm Pitch, 1 Row, 1881422

모든 Pluggable Terminal Blocks 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩109,096.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 10 개 단위 배송 준비 완료
  • 추가로 2026년 3월 06일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
5 - 370₩21,819.28₩109,096.40
375 - 995₩20,946.96₩104,734.80
1000 +₩20,074.64₩100,373.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
493-2563
Distrelec 제품 번호:
304-33-774
제조사 부품 번호:
1881422
제조업체:
Phoenix Contact
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Phoenix Contact

Product Type

Pluggable Terminal Block

Number of Contacts

12

Pitch

2.5mm

Number of Rows

1

Current

13.5A

Housing Material

Polyamide

Minimum Wire Size mm²

0.2mm²

Connector Gender

Female

Maximum Wire Size mm²

1.5mm²

Minimum Wire Size AWG

26 AWG

Maximum Wire Size AWG

16 AWG

Orientation

Horizontal

Wire Connection Method

Spring Cage

Colour

Green

Voltage

320 V

Series

FK-MC 0.5/12-ST-2.5

Standards/Approvals

No

Length

19.05mm

Width

30.6 mm

Depth

11.05mm

COO (Country of Origin):
DE

FK-MC PCB Connectors - Phoenix Contact


The FK-MC series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MC series are rated for 4 A with a voltage of 160 V and boasts a 2.5mm pitch for versatile use.

The contact material is the FK-MC connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.

Features and benefits:


  • Spring clamp technology for quick connection - no tools needed

  • High copper content for low resistance and greater conductivity

  • Integrated test points for testing with connector inserted

  • 2 to 12-way versions

  • Flammability rating UL94 V0

  • Defined contact force allows your connection to stay strong over-time

  • 1mm testing port for convenient testing

  • Operation and conductor connection from one direction enable integration into front of the device

    • Applications:


    The MICRO COMBICON 0.5 series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.
