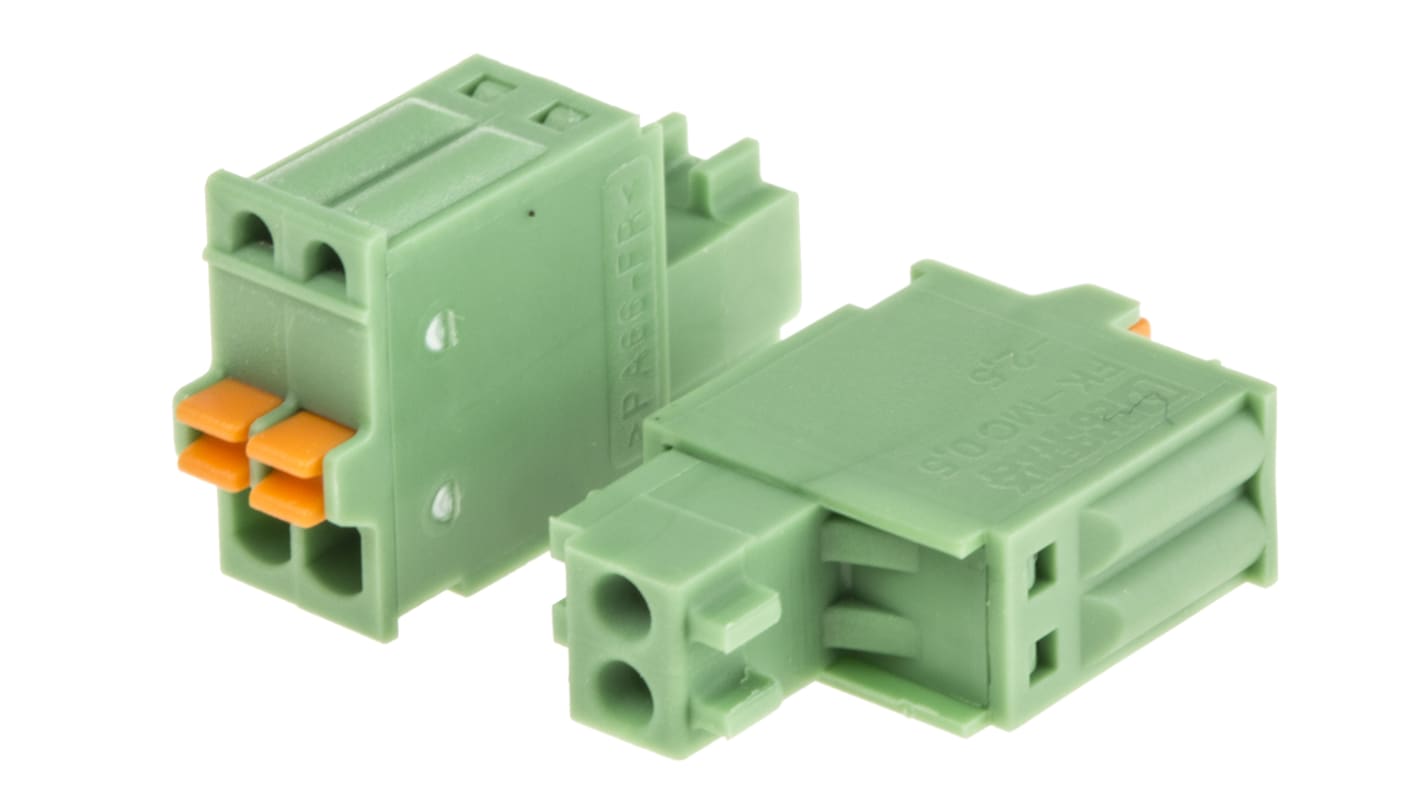

Name: Phoenix Contact FK-MC 0.5/2-ST-2.5 Series Pluggable Terminal Block, 2-Contact, 2.5 mm Pitch, 1 Row, 1881325
Brand: Phoenix Contact
SKU: 357-9470
Price: 2643.28 KRW
Availability: InStock

수량

수량 선택 또는 입력

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Phoenix Contact
	Product Type	Pluggable Terminal Block
	Number of Contacts	2
	Pitch	2.5mm
	Number of Rows	1
	Current	20A
	Minimum Wire Size mm²	0.2mm²
	Housing Material	Polyamide
	Maximum Wire Size mm²	4mm²
	Connector Gender	Female
	Minimum Wire Size AWG	24 AWG
	Maximum Wire Size AWG	10 AWG
	Orientation	Straight
	Colour	Green
	Wire Connection Method	Spring Cage
	Voltage	630 V
	Standards/Approvals	No
	Depth	11.75mm
	Series	FK-MC 0.5/2-ST-2.5
	Width	5.6 mm
	Length	19.2mm

	모두 선택
	브랜드 Phoenix Contact
	Product Type Pluggable Terminal Block
	Number of Contacts 2
	Pitch 2.5mm
	Number of Rows 1
	Current 20A
	Minimum Wire Size mm² 0.2mm²
	Housing Material Polyamide
	Maximum Wire Size mm² 4mm²
	Connector Gender Female
	Minimum Wire Size AWG 24 AWG
	Maximum Wire Size AWG 10 AWG
	Orientation Straight
	Colour Green
	Wire Connection Method Spring Cage
	Voltage 630 V
	Standards/Approvals No
	Depth 11.75mm
	Series FK-MC 0.5/2-ST-2.5
	Width 5.6 mm
	Length 19.2mm

제외

COO (Country of Origin):: DE

Phoenix Contact Pluggable Terminal Block, Straight Body, 4A Contact Rating - FK-MC 0,5/ 2-ST-2,5 - 1881325

Ready to add plug-and-play connections to your PC card? Install this pluggable terminal block from Phoenix Contact. It's a two-way unit that accepts two wires in a jiffy, thanks to the push-in spring connection. To use it, insert crimped wire ends until the component catches onto it. If you need to remove that cable at any point, push down on the orange tab and pull with about 6N of force.

To protect your system, the PA insulation resists fire and withstands surges up to 2.5kV. The unit's copper contacts are highly conductive to support fast-paced equipment. You can rest easy, as those connections are hot-dip tin-plated to minimise corrosion, giving you smooth performance in the long term.

Features & Benefits

• PA insulation is fire-resistant and self-extinguishing to protect your components

• Compact dimensions of 5.6 (W) x 19.05 (L) 11.75 (H) save space on densely packed PCBs

• Suitable for extreme environments as it withstands +100°C temperatures for up to 168 hours before breaking down

• Finger-safe for risk-free handling

• Can be withdrawn and inserted up to 25 times for longevity

Phoenix Contact FK-MC 0.5/2-ST-2.5 Series Pluggable Terminal Block, 2-Contact, 2.5 mm Pitch, 1 Row, 1881325

Phoenix Contact Pluggable Terminal Block, Straight Body, 4A Contact Rating - FK-MC 0,5/ 2-ST-2,5 - 1881325

Features & Benefits
