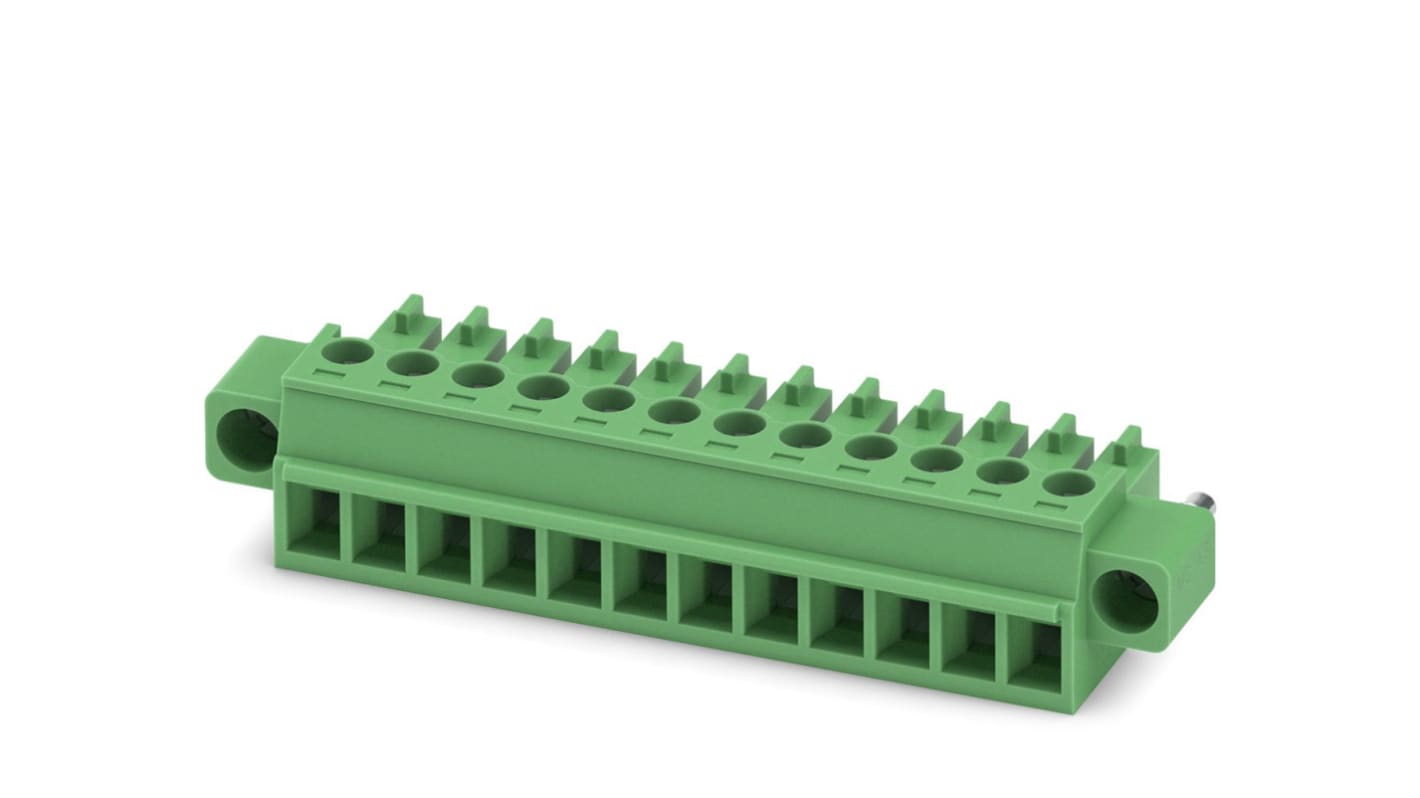

Phoenix Contact 5/12-STF-3, 81, MC 1 Series Pluggable Terminal Block, 12-Contact, 3.81 mm Pitch, 1 Row, 1827800
- RS 제품 번호:
- 241-5956
- 제조사 부품 번호:
- 1827800
- 제조업체:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
₩1,115,900.00
제조사가 재고 비축중
- 2026년 12월 02일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 50 + | ₩22,318.00 | ₩1,115,880.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 241-5956
- 제조사 부품 번호:
- 1827800
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Number of Contacts | 12 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Copper Alloy | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 16AWG | |
| Maximum Wire Size AWG | 28AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Colour | Green | |
| Voltage | 160V | |
| Standards/Approvals | CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | |
| Width | 56.11mm | |
| Depth | 11.1mm | |
| Series | 5/12-STF-3, 81, MC 1 | |
| Length | 16.1mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Number of Contacts 12 | ||
Product Type Pluggable Terminal Block | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Copper Alloy | ||
Connector Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 16AWG | ||
Maximum Wire Size AWG 28AWG | ||
Orientation Straight | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Colour Green | ||
Voltage 160V | ||
Standards/Approvals CSA, cULus Recognised, EAC, IECEE CB Scheme, VDE Gutachten mit Fertigungsüberwachung | ||
Width 56.11mm | ||
Depth 11.1mm | ||
Series 5/12-STF-3, 81, MC 1 | ||
Length 16.1mm | ||
- COO (Country of Origin):
- DE
The Phoenix Contact's PCB connector has nominal cross section of 1.5 mm², nominal current of 8 A and rated voltage (III/2) of 160 V. Tin contact surface ,female connector with single row and 12 positions per row.
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Screwable flange for superior mechanical stability
