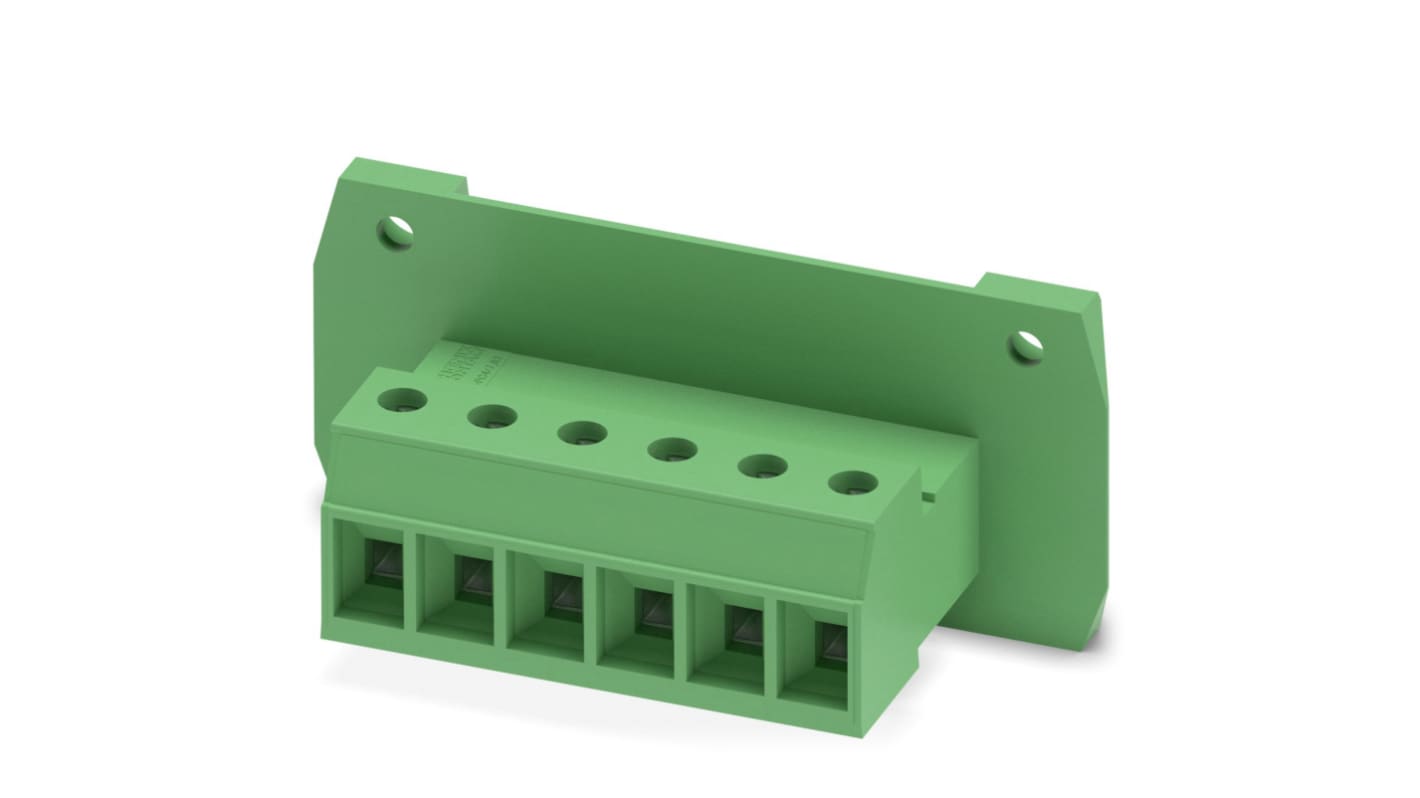

Phoenix Contact, 7.62mm Pitch, DFK-PC 4/ 6-GF-7.62, 6 Way, , Pluggable Terminal Block, Feed Through Header, Cable
- RS 제품 번호:
- 176-1135
- 제조사 부품 번호:
- 1840599
- 제조업체:
- Phoenix Contact
대량 구매 할인 기용 가능
Subtotal (1 Box of 50 units)*
₩1,062,294.00
재고있음
- 50 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 50 - 50 | ₩21,245.88 | ₩1,062,312.80 |
| 100 - 450 | ₩20,715.72 | ₩1,035,748.40 |
| 500 + | ₩18,643.96 | ₩932,179.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 176-1135
- 제조사 부품 번호:
- 1840599
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Pluggable Terminal Block Type | Feed Through Header | |
| Number of Contacts | 6 | |
| Pitch | 7.62mm | |
| Series | DFK-PC 4/ 6-GF-7.62 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount, Panel Mount | |
| Termination Method | Screw | |
| Current Rating | 20A | |
| Voltage Rating | 1 kV | |
| Colour | Green | |
| Material | Polyamide | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Pluggable Terminal Block Type Feed Through Header | ||
Number of Contacts 6 | ||
Pitch 7.62mm | ||
Series DFK-PC 4/ 6-GF-7.62 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Cable Mount, Panel Mount | ||
Termination Method Screw | ||
Current Rating 20A | ||
Voltage Rating 1 kV | ||
Colour Green | ||
Material Polyamide | ||
- COO (Country of Origin):
- PL
Phoenix Contact DFK-PC 4/ 6-GF-7.62 Series Pluggable Terminal Block, 7.62mm Pitch, Screw Termination Method - 1840599
This pluggable terminal block is designed to enable efficient electrical connections in automation and control systems. It combines durability and performance, playing a vital role in ensuring dependable connections across various applications. Its robust design and ability to handle high voltages make it a suitable option for professionals in the electrical and mechanical sectors.
Features & Benefits
• Provides a 7.62mm pitch for compact wiring solutions
• Supports a nominal current of 20A for various applications
• Utilises screw termination for secure connections
• Offers both cable and panel mounting flexibility
• High voltage rating of 1kV for various applications
• Manufactured from polyamide for improved durability and insulation
• Supports a nominal current of 20A for various applications
• Utilises screw termination for secure connections
• Offers both cable and panel mounting flexibility
• High voltage rating of 1kV for various applications
• Manufactured from polyamide for improved durability and insulation
Applications
• Suitable for direct mounting in control cabinets
• Ideal for connecting multiple wires in power distribution
• Used in automation equipment for consistent signal transmission
• Applicable in machinery with limited space
• Utilised in electrical installations necessitating secured connections
• Ideal for connecting multiple wires in power distribution
• Used in automation equipment for consistent signal transmission
• Applicable in machinery with limited space
• Utilised in electrical installations necessitating secured connections
What type of installation is recommended for this terminal block?
It is recommended for direct mounting in control systems or equipment panels.
Can it support various wire gauges?
Yes, it can accommodate conductor cross-sections ranging from 0.2 to 4mm².
Is it suitable for high voltage applications?
Yes, it supports a rated voltage of up to 1kV, making it appropriate for such applications.
How can I ensure a secure connection with this block?
Using the screw locking mechanism will provide a stable connection.
What is the operational temperature range for this terminal block?
It operates effectively within a temperature range of -40 to 100°C.
