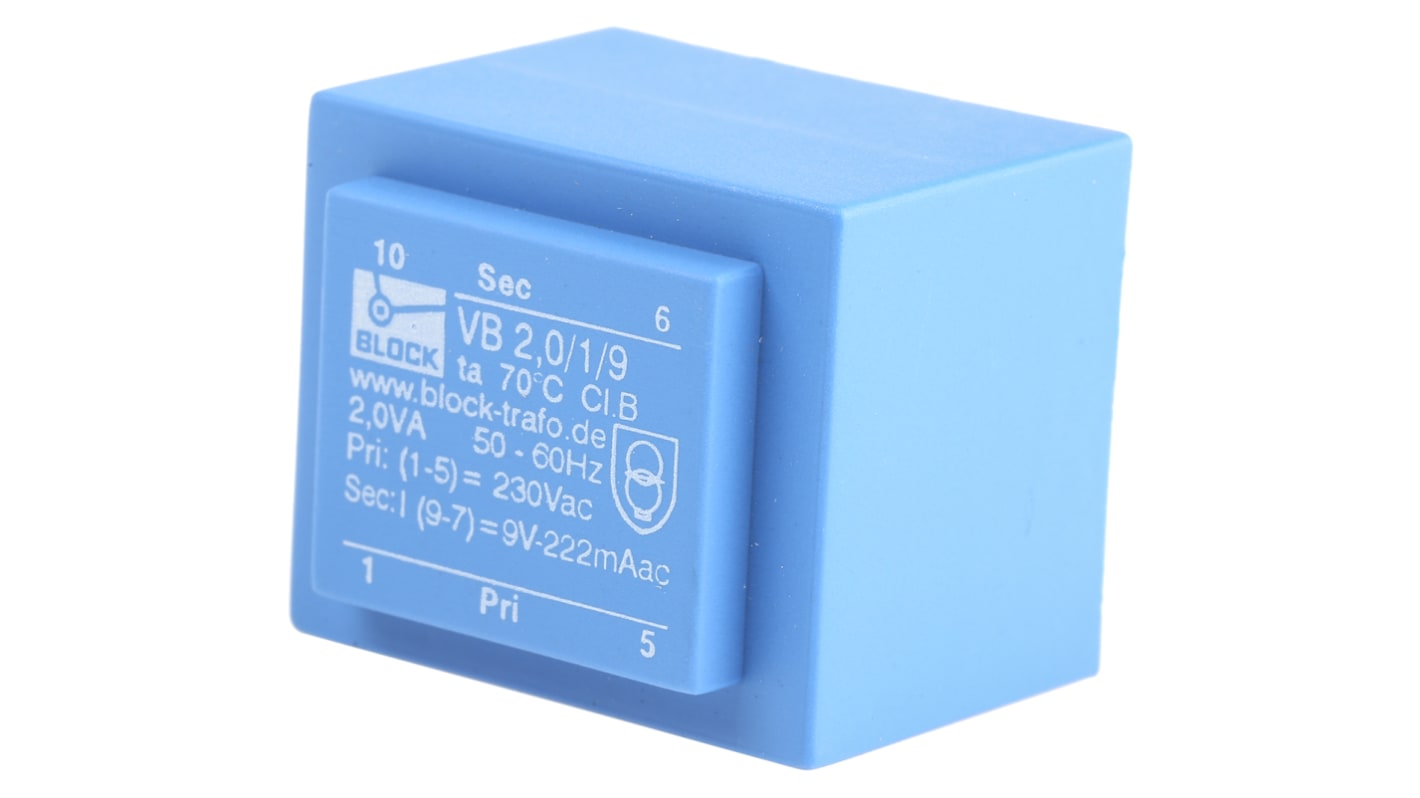

Block 9 V ac 1 Output Through Hole PCB Transformer, Approval cURus - UL 5085-1/-2, CSA 22.2, EN 61558-2-6 2009, VDE
- RS 제품 번호:
- 732-0367
- 제조사 부품 번호:
- VB 2,0/1/9
- 제조업체:
- Block
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
- RS 제품 번호:
- 732-0367
- 제조사 부품 번호:
- VB 2,0/1/9
- 제조업체:
- Block
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Block | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 9 V ac | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 1 | |
| Length | 32.3mm | |
| Width | 27.3mm | |
| Power | 2VA | |
| Depth | 26.8mm | |
| Weight | 100g | |
| Mount Type | Through Hole | |
| Winding Type | Single Secondary, Single Primary | |
| Minimum Operating Temperature | -20°C | |
| PCB Transformer Current | 0.222A | |
| Efficiency | 43% | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | Approval cURus - UL 5085-1/-2, CSA 22.2, EN 61558-2-6 2009, VDE approval, CE compliant | |
| 모두 선택 | ||
|---|---|---|
브랜드 Block | ||
Product Type PCB Transformer | ||
Secondary Voltage 9 V ac | ||
Primary Voltage 230 V ac | ||
Number of Outputs 1 | ||
Length 32.3mm | ||
Width 27.3mm | ||
Power 2VA | ||
Depth 26.8mm | ||
Weight 100g | ||
Mount Type Through Hole | ||
Winding Type Single Secondary, Single Primary | ||
Minimum Operating Temperature -20°C | ||
PCB Transformer Current 0.222A | ||
Efficiency 43% | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals Approval cURus - UL 5085-1/-2, CSA 22.2, EN 61558-2-6 2009, VDE approval, CE compliant | ||
- COO (Country of Origin):
- DE
Transformers PCB Mount, Short Circuit Proof, VB & PT Series
230Va.c. 50 to 60Hz primary
Single or twin secondary windings for series or parallel connection (For conformance reasons,0.35 to 3.2VA transformers with 2 x 15 and 2 x 18V outputs and all transformers with 2x 24V outputs should not have their secondaries connected in series as this means they will not meet the VDE 0550 approval)
VB series (0.35 - 3.2VA) are inherently short circuit proof
PT series (4.5 - 22VA) are protected by internal PTC device
Compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
High efficiency and low temperature rise
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure boarding mounting on 4.5VA and above
Approvals
ENEC 10; UL recognised component
Standards
EN 61558
