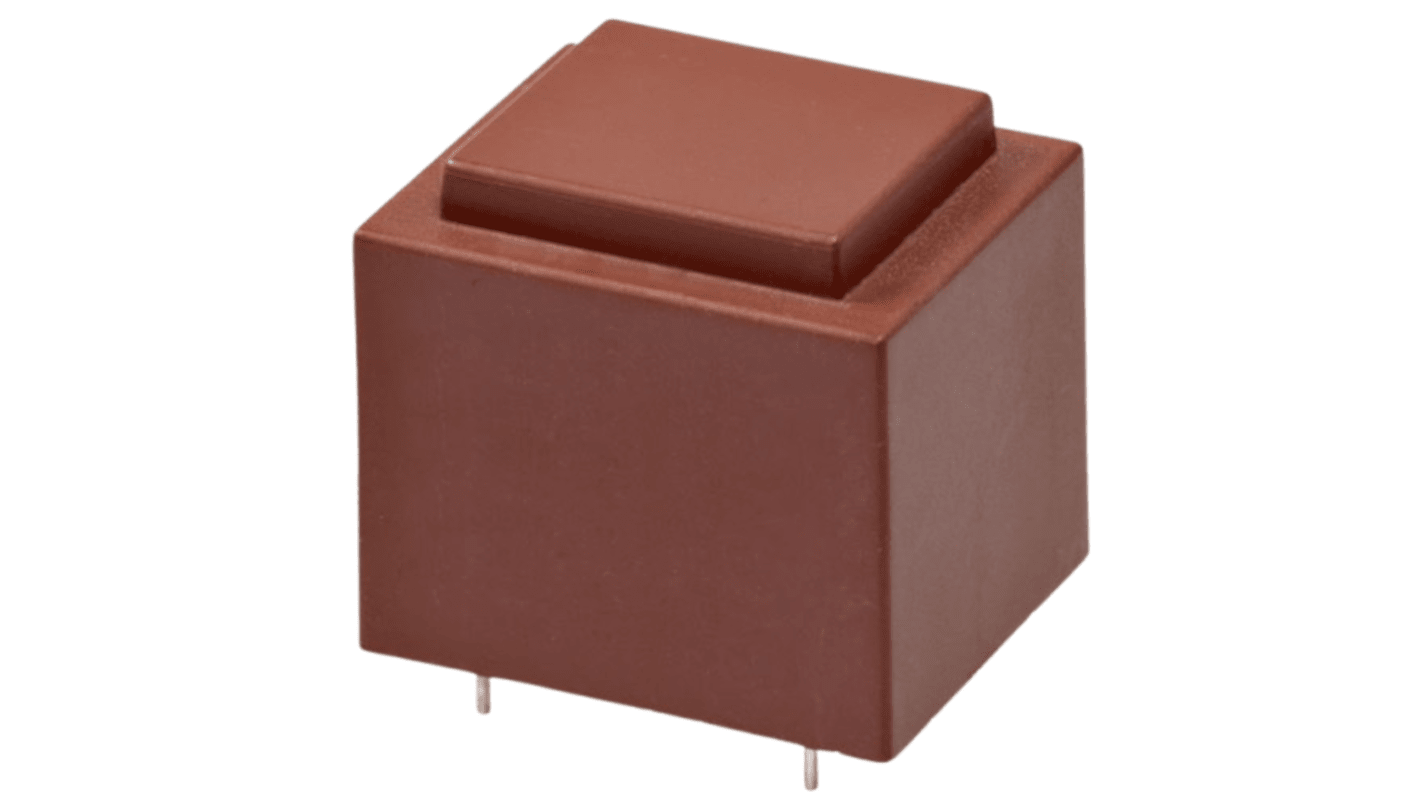

Block 9 V ac 1 Output Through Hole PCB Transformer, Approval cURus - UL 5085-1/-2, CE compliant, CSA 22.2, VDE approval,
- RS 제품 번호:
- 327-815
- 제조사 부품 번호:
- VB 2,0/1/9
- 제조업체:
- Block
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩13,423.20
재고있음
- 11 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩13,423.20 |
| 10 - 99 | ₩12,069.60 |
| 100 - 499 | ₩11,129.60 |
| 500 - 999 | ₩10,321.20 |
| 1000 + | ₩9,268.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 327-815
- 제조사 부품 번호:
- VB 2,0/1/9
- 제조업체:
- Block
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Block | |
| Secondary Voltage | 9 V ac | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V ac | |
| Number of Outputs | 1 | |
| Length | 32.3mm | |
| Width | 27.3 mm | |
| Depth | 26.8mm | |
| Power | 2VA | |
| Weight | 100g | |
| Mount Type | Through Hole | |
| Minimum Operating Temperature | -20°C | |
| Winding Type | Single Secondary, Single Primary | |
| PCB Transformer Current | 0.222A | |
| Efficiency | 43% | |
| Maximum Operating Temperature | 70°C | |
| Series | VB | |
| Minimum Operating Frequency | 50Hz | |
| Standards/Approvals | Approval cURus - UL 5085-1/-2, CE compliant, CSA 22.2, VDE approval, EN 61558-2-6 2009 | |
| Maximum Operating Frequency | 60Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Block | ||
Secondary Voltage 9 V ac | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V ac | ||
Number of Outputs 1 | ||
Length 32.3mm | ||
Width 27.3 mm | ||
Depth 26.8mm | ||
Power 2VA | ||
Weight 100g | ||
Mount Type Through Hole | ||
Minimum Operating Temperature -20°C | ||
Winding Type Single Secondary, Single Primary | ||
PCB Transformer Current 0.222A | ||
Efficiency 43% | ||
Maximum Operating Temperature 70°C | ||
Series VB | ||
Minimum Operating Frequency 50Hz | ||
Standards/Approvals Approval cURus - UL 5085-1/-2, CE compliant, CSA 22.2, VDE approval, EN 61558-2-6 2009 | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- CN
The Block PCB transformer is inherently short-circuit proof, ensuring safe and reliable operation. It utilizes AN (air natural) cooling for efficient heat management. The transformer belongs to the switching group Ii0, with a power rating of 2 VA. It supports a frequency range of 50 to 60 Hz and is designed for single-phase operation. The duty cycle is optimized for continuous use, with no-load losses of 0.8 W. The wire material used is 100% copper, providing excellent conductivity and durability.
Overvoltage category III
Pin terminal
