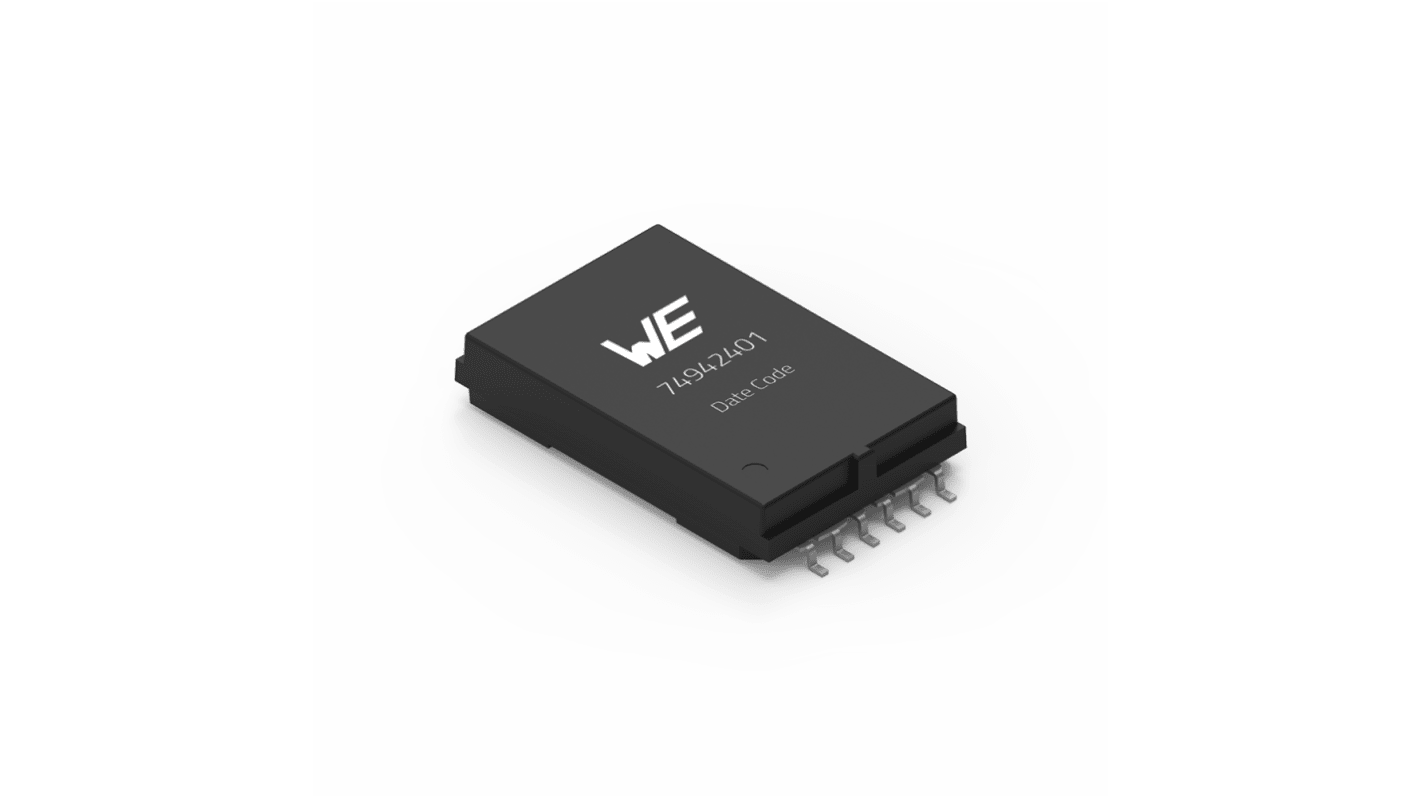

Wurth Elektronik 1 Output Surface PCB Transformer, RoHS

RS 제품 번호:: 299-010
제조사 부품 번호:: 74942401
제조업체:: Wurth Elektronik

Wurth Elektronik 1 Output Surface PCB Transformer, RoHS

Subtotal (1 tape of 10 units)*

₩103,662.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

Tape(s)	Per Tape	한팩당*
1 +	₩103,662.00	₩10,366.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 299-010
제조사 부품 번호:: 74942401
제조업체:: Wurth Elektronik

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Wurth Elektronik
	Product Type	PCB Transformer
	Primary Voltage	1500 V
	Number of Outputs	1
	Length	24.52mm
	Width	15.45mm
	Depth	4.85mm
	Mount Type	Surface
	Isolation Voltage	6400V
	Minimum Operating Temperature	-40°C
	Number of Pins	12
	Maximum Operating Temperature	125°C
	Series	WE-BMS
	Standards/Approvals	RoHS

	모두 선택
	브랜드 Wurth Elektronik
	Product Type PCB Transformer
	Primary Voltage 1500 V
	Number of Outputs 1
	Length 24.52mm
	Width 15.45mm
	Depth 4.85mm
	Mount Type Surface
	Isolation Voltage 6400V
	Minimum Operating Temperature -40°C
	Number of Pins 12
	Maximum Operating Temperature 125°C
	Series WE-BMS
	Standards/Approvals RoHS

Datasheet - 74942401

COO (Country of Origin):: CN

The Wurth Elektronik component features a test voltage of 6400 VDC for 1 minute with reinforced insulation and supports up to 1500 VDC working voltage It includes integrated filter chokes for common mode interference suppression and supports serial daisy chain isoSPI and SPI configurations It is available in various footprints including low-profile versions and operates within a temperature range of -40°C to +125°C

Energy Storage systems

Uninterrupted Power Supply (UPS)

E-bikes, E-scooters

Isolation of industrial interfaces

Wurth Elektronik 1 Output Surface PCB Transformer, RoHS
