Wurth Elektronik 3.3 V dc 1 Output Surface PCB Transformer, IEC 61010, RoHS
- RS 제품 번호:
- 182-8760
- 제조사 부품 번호:
- 750316031
- 제조업체:
- Wurth Elektronik

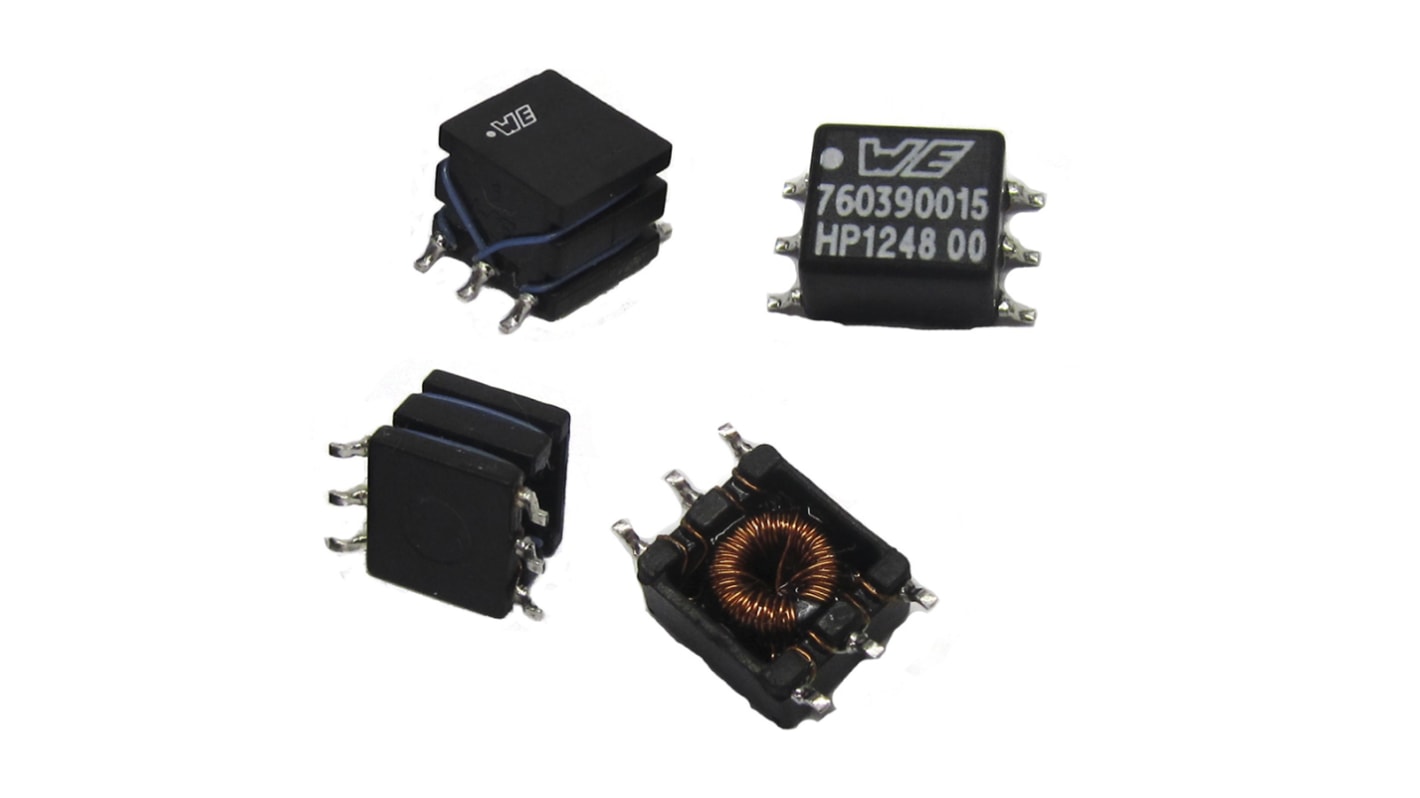

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 275 units)*
₩1,857,033.75
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 275 - 1100 | ₩6,752.85 | ₩1,857,195.60 |
| 1375 + | ₩6,349.20 | ₩1,745,760.90 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 182-8760
- 제조사 부품 번호:
- 750316031
- 제조업체:
- Wurth Elektronik
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Wurth Elektronik | |
| Product Type | PCB Transformer | |
| Secondary Voltage | 3.3 V dc | |
| Primary Voltage | 3.3 V dc | |
| Number of Outputs | 1 | |
| Length | 10.41mm | |
| Width | 11.89mm | |
| Depth | 12.32mm | |
| Mount Type | Surface | |
| Number of Pins | 6 | |
| Winding Type | Dual Secondary, Dual Primary | |
| Minimum Operating Temperature | -40°C | |
| PCB Transformer Current | 1A | |
| Maximum Operating Temperature | 85°C | |
| Series | MID-PPTI | |
| Standards/Approvals | IEC 61010, RoHS | |
| Maximum Operating Frequency | 150kHz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Wurth Elektronik | ||
Product Type PCB Transformer | ||
Secondary Voltage 3.3 V dc | ||
Primary Voltage 3.3 V dc | ||
Number of Outputs 1 | ||
Length 10.41mm | ||
Width 11.89mm | ||
Depth 12.32mm | ||
Mount Type Surface | ||
Number of Pins 6 | ||
Winding Type Dual Secondary, Dual Primary | ||
Minimum Operating Temperature -40°C | ||
PCB Transformer Current 1A | ||
Maximum Operating Temperature 85°C | ||
Series MID-PPTI | ||
Standards/Approvals IEC 61010, RoHS | ||
Maximum Operating Frequency 150kHz | ||
- COO (Country of Origin):
- CN
MID-PPTI Push-Pull Transformers for Texas Instruments
Small size
Surface mount
Low profile
Operating temp: -40°C to 125°C
Functional, supplementary or reinforced insulation
Applications
Isolated interface power supply for CAN, RS-485, RS-422, RS-232, SPI, I2C, lower-power LAN
Industrial automation
Process control
Medical equipment
PLC analog and digital I/O modules
Isolated gate driver power supplies
AC motor drives
Uninterruptible power supplies (UPS)
Solar inverters
Polyphase energy meters
Protection relays and IEDs
