WAGO 741 Series PCB Connector, 5-Contact, 10.16 mm Pitch, 1 Row, 741-625
- RS 제품 번호:
- 222-440
- 제조사 부품 번호:
- 741-625
- 제조업체:
- WAGO
Subtotal (1 Box of 20 units)*
₩708,191.25
일시적 품절
- 2026년 6월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩708,191.25 | ₩35,410.05 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 222-440
- 제조사 부품 번호:
- 741-625
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Product Type | PCB Connector | |
| Number of Contacts | 5 | |
| Pitch | 10.16mm | |
| Number of Rows | 1 | |
| Current | 16A | |
| Minimum Wire Size mm² | 0.08mm² | |
| Housing Material | Polyamide 66 | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Male | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Wire Connection Method | Cage Clamp | |
| Colour | Orange | |
| Voltage | 63V | |
| Series | 741 | |
| Standards/Approvals | No | |
| Width | 55.04mm | |
| Depth | 12.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Product Type PCB Connector | ||
Number of Contacts 5 | ||
Pitch 10.16mm | ||
Number of Rows 1 | ||
Current 16A | ||
Minimum Wire Size mm² 0.08mm² | ||
Housing Material Polyamide 66 | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Male | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Wire Connection Method Cage Clamp | ||
Colour Orange | ||
Voltage 63V | ||
Series 741 | ||
Standards/Approvals No | ||
Width 55.04mm | ||
Depth 12.8mm | ||
- COO (Country of Origin):
- CH

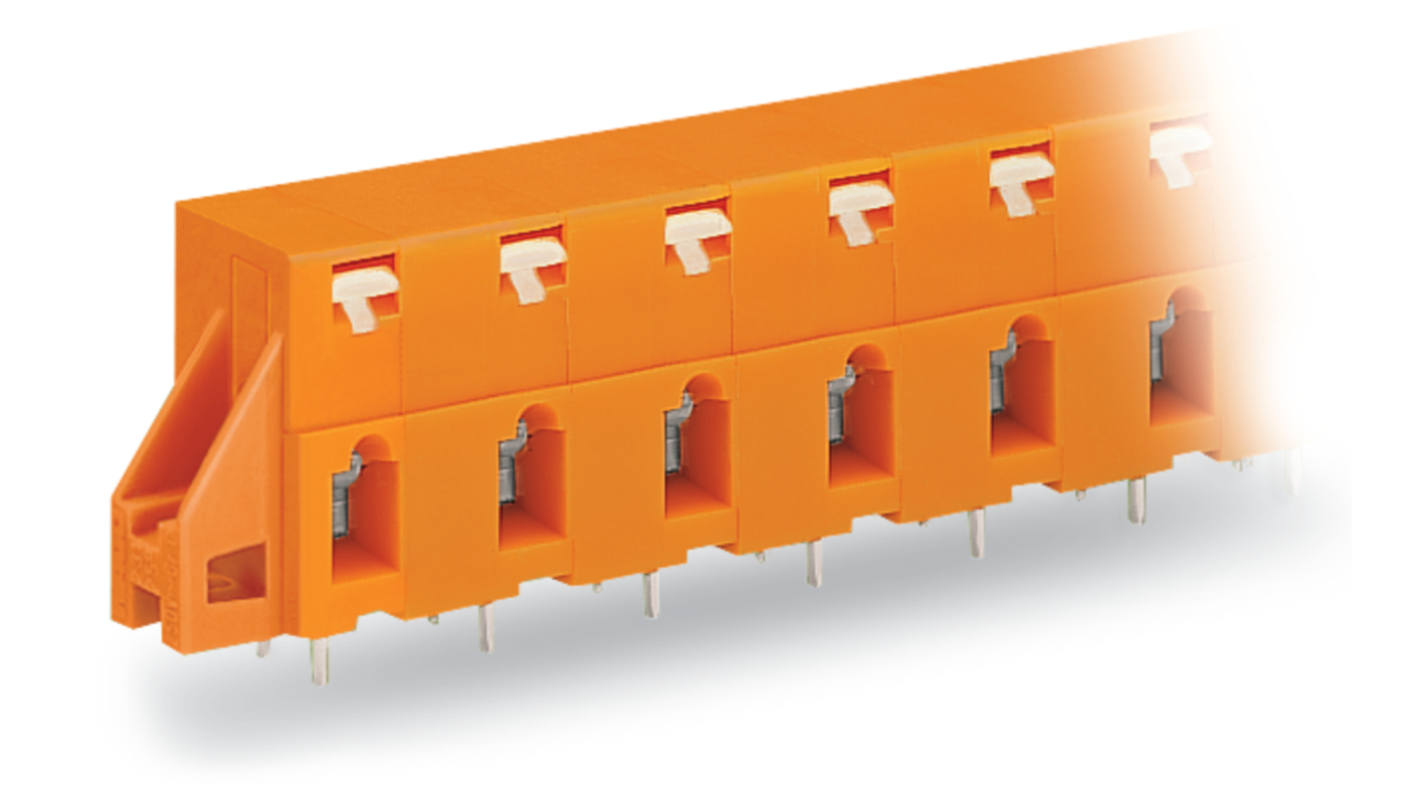

The Wago PCB Terminal Block with push button functionality stands out for its simplicity and effectiveness in wiring applications. Designed with a 2.5 mm² conductor capacity and an efficient pin spacing of 10.16 mm, it combines reliability with ease of installation, making it an essential component for any electrical project. Its robust CAGE CLAMP connection system allows quick and direct wiring, ensuring minimal downtime during setup. Moreover, the innovative integrated test slot enhances functionality by facilitating easy testing of connections, promoting thorough troubleshooting and maintenance.
Push button actuation simplifies the wiring process significantly
Versatile usage with a wide range of conductor types and sizes
Well suited for environments requiring compliance with stringent safety standards
High flammability resistance certified to UL94 V0
Mechanical stability enhanced by mounting flanges for secure installation
Compliant with RoHS directives ensuring environmentally friendly usage
