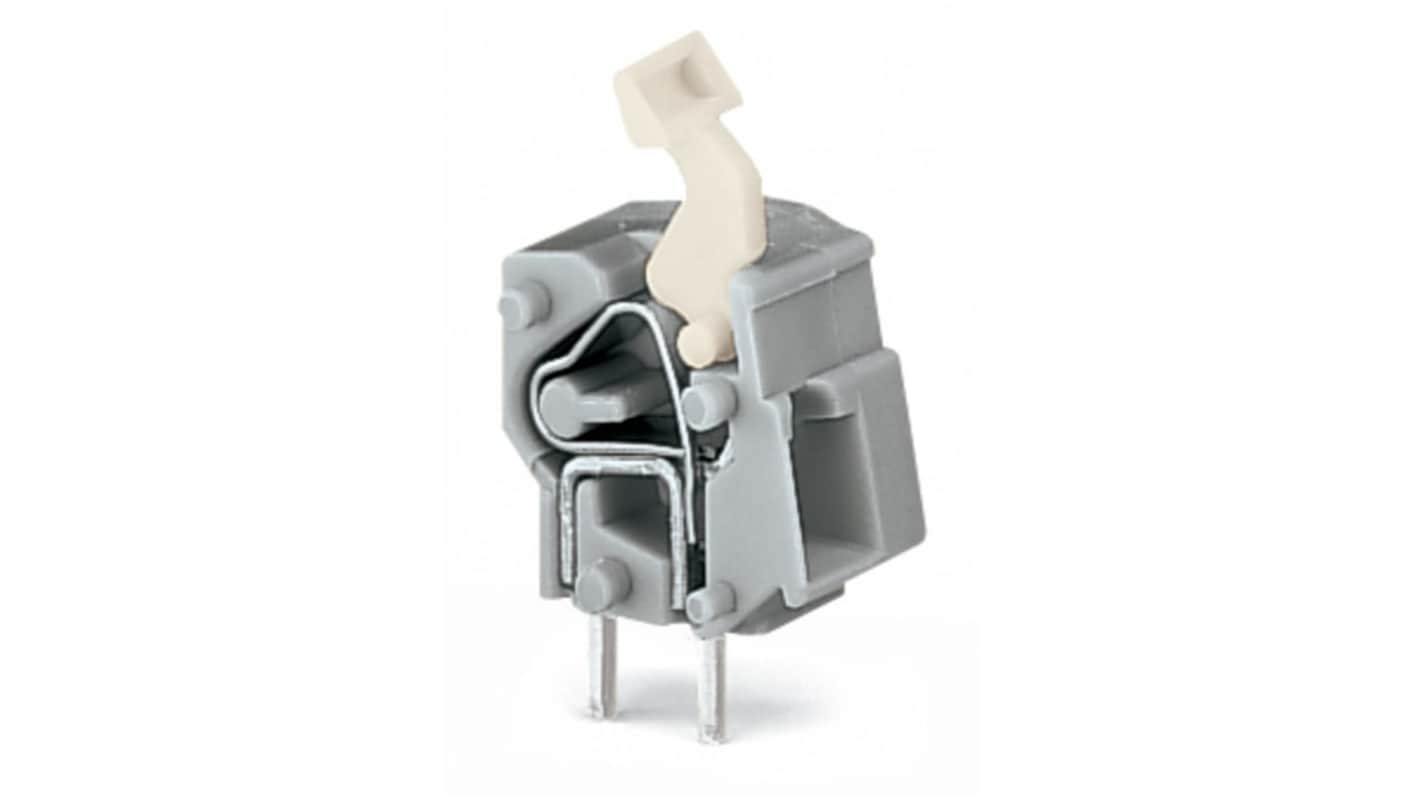

WAGO 257 Series PCB Connector, 1-Contact, 7.62 mm Pitch, Through Hole, 2 Row
- RS 제품 번호:
- 220-720
- 제조사 부품 번호:
- 257-857
- 제조업체:
- WAGO
Subtotal (1 Box of 100 units)*
₩85,098.00
일시적 품절
- 2026년 7월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es) | Per Box | 한팩당* |
|---|---|---|
| 1 + | ₩85,098.00 | ₩850.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 220-720
- 제조사 부품 번호:
- 257-857
- 제조업체:
- WAGO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WAGO | |
| Number of Contacts | 1 | |
| Product Type | PCB Connector | |
| Pitch | 7.62mm | |
| Number of Rows | 2 | |
| Current | 24A | |
| Mount Type | Through Hole | |
| Housing Material | Polyamide 66 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | 0° | |
| Colour | Light Green | |
| Voltage | 1000V | |
| Depth | 14.2mm | |
| Standards/Approvals | No | |
| Width | 10.3mm | |
| Series | 257 | |
| 모두 선택 | ||
|---|---|---|
브랜드 WAGO | ||
Number of Contacts 1 | ||
Product Type PCB Connector | ||
Pitch 7.62mm | ||
Number of Rows 2 | ||
Current 24A | ||
Mount Type Through Hole | ||
Housing Material Polyamide 66 | ||
Minimum Wire Size mm² 0.08mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation 0° | ||
Colour Light Green | ||
Voltage 1000V | ||
Depth 14.2mm | ||
Standards/Approvals No | ||
Width 10.3mm | ||
Series 257 | ||
- COO (Country of Origin):
- PL
The Wago Stackable PCB Terminal Block is designed to simplify electrical connections while maximising space efficiency. Featuring a push button actuation mechanism, it enables quick and easy wiring, making it ideal for in field installations. This terminal block utilises CAGE CLAMP technology, offering a secure and reliable connection for solid and fine stranded conductors.
Multiple connection options enhance flexibility and adaptability in design
Compact design optimises space on printed circuit boards
Ex approved versions cater to stringent safety requirements
Environmentally compliant materials support sustainable practices
Heat resistant insulation material provides protection under extreme conditions
Versatile conductor size range accommodates a wide variety of electrical wires
