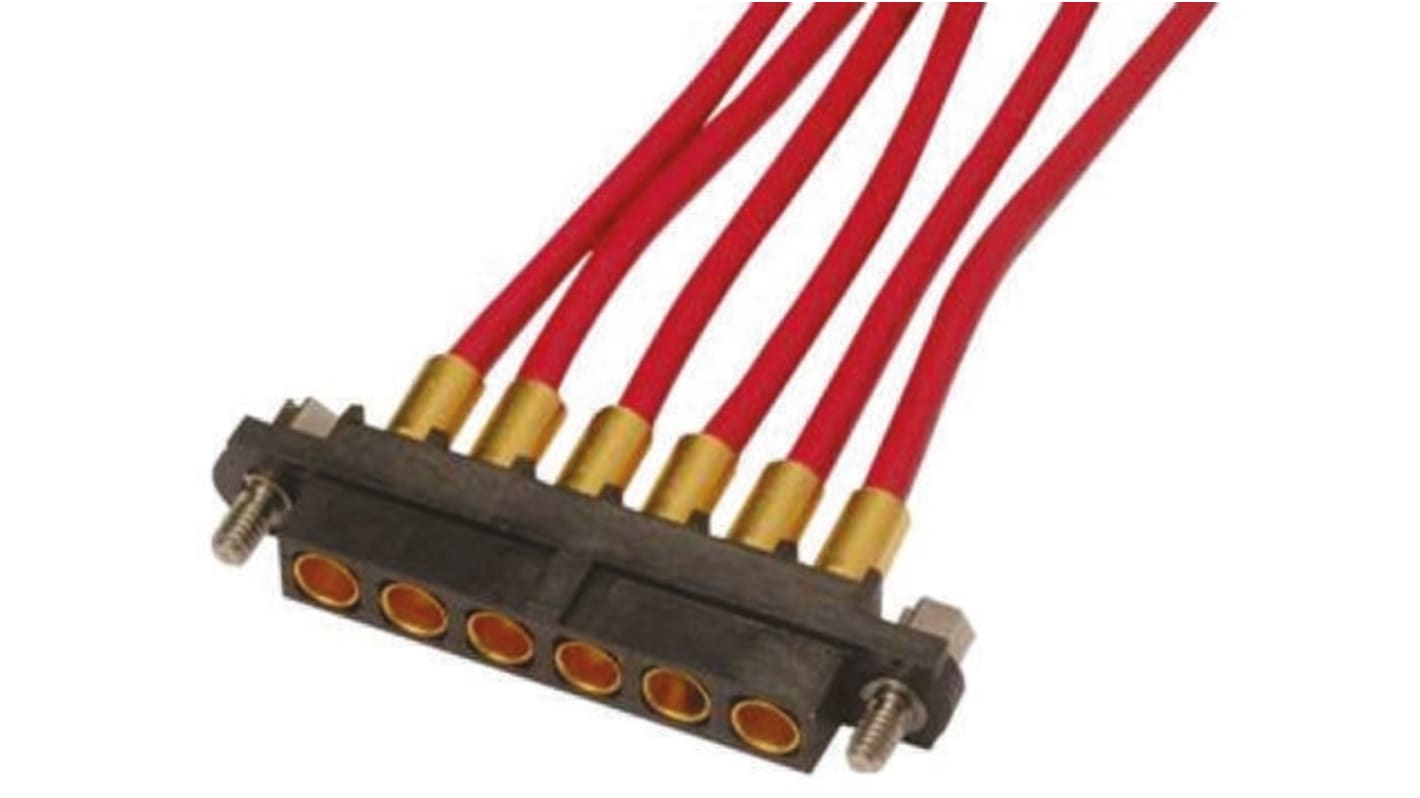

HARWIN Datamate Mix-Tek Series Straight Panel PCB Socket, 6-Contact, 1 Row, 4 mm Pitch Crimp
- RS 제품 번호:
- 680-9939
- 제조사 부품 번호:
- M80-4000000F1-06-327-00-000
- 제조업체:
- HARWIN
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩63,130.40
재고있음
- 1 개 단위 배송 준비 완료
- 추가로 2026년 1월 23일 부터 26 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩63,130.40 |
| 5 + | ₩62,359.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 680-9939
- 제조사 부품 번호:
- M80-4000000F1-06-327-00-000
- 제조업체:
- HARWIN
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | HARWIN | |
| Product Type | PCB Socket | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Sub Type | Datamate | |
| Current | 12A | |
| Pitch | 4mm | |
| Housing Material | Polyphenylene Sulphide | |
| Termination Type | Crimp | |
| Mount Type | Panel | |
| Orientation | Straight | |
| Connector System | Board-to-Board | |
| Voltage | 120 V | |
| Series | Datamate Mix-Tek | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Female | |
| Contact Plating | Gold | |
| Maximum Operating Temperature | 125°C | |
| Contact Material | Brass | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 HARWIN | ||
Product Type PCB Socket | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Sub Type Datamate | ||
Current 12A | ||
Pitch 4mm | ||
Housing Material Polyphenylene Sulphide | ||
Termination Type Crimp | ||
Mount Type Panel | ||
Orientation Straight | ||
Connector System Board-to-Board | ||
Voltage 120 V | ||
Series Datamate Mix-Tek | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Female | ||
Contact Plating Gold | ||
Maximum Operating Temperature 125°C | ||
Contact Material Brass | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- GB
Harwin Datamate Mix-Tek 2mm Cable Socket Connector Kits
Datamate Mix-Tek Off The Shelf cable socket connector kits with a compact 2mm pitch design that offer industry standard high reliability. These Datamate Mix-Tek OTS cable sockets are designed for military, aerospace and high end applications and are internationally utilised in COTS programs. The housings of these Datamate Mix-Tek OTS cable sockets are fully shrouded for contact protection and incorporate polarization features to prevent mis-mating. These Datamate Mix-Tek cable connectors have 20A standard power contacts made from beryllium copper with a 4 finger design making them capable of withstanding extreme temperature ranges and high vibration and shock.
Each Datamate Mix-Tek OTS cable connector kit consists of a housing, hexagonal slotted jackscrews and loose standard power contacts suitable for use with 12 AWG cable.
Typical applications for these Datamate Mix-Tek connectors include aerospace and aeronautics, military, data & telecommunications, medical, handheld & industrial equipment, robotics, oil and gas.
2.0mm Harwin Datamate Mix-Tek Series
Approvals
BS9525-F0033 & CECC-75101-008
