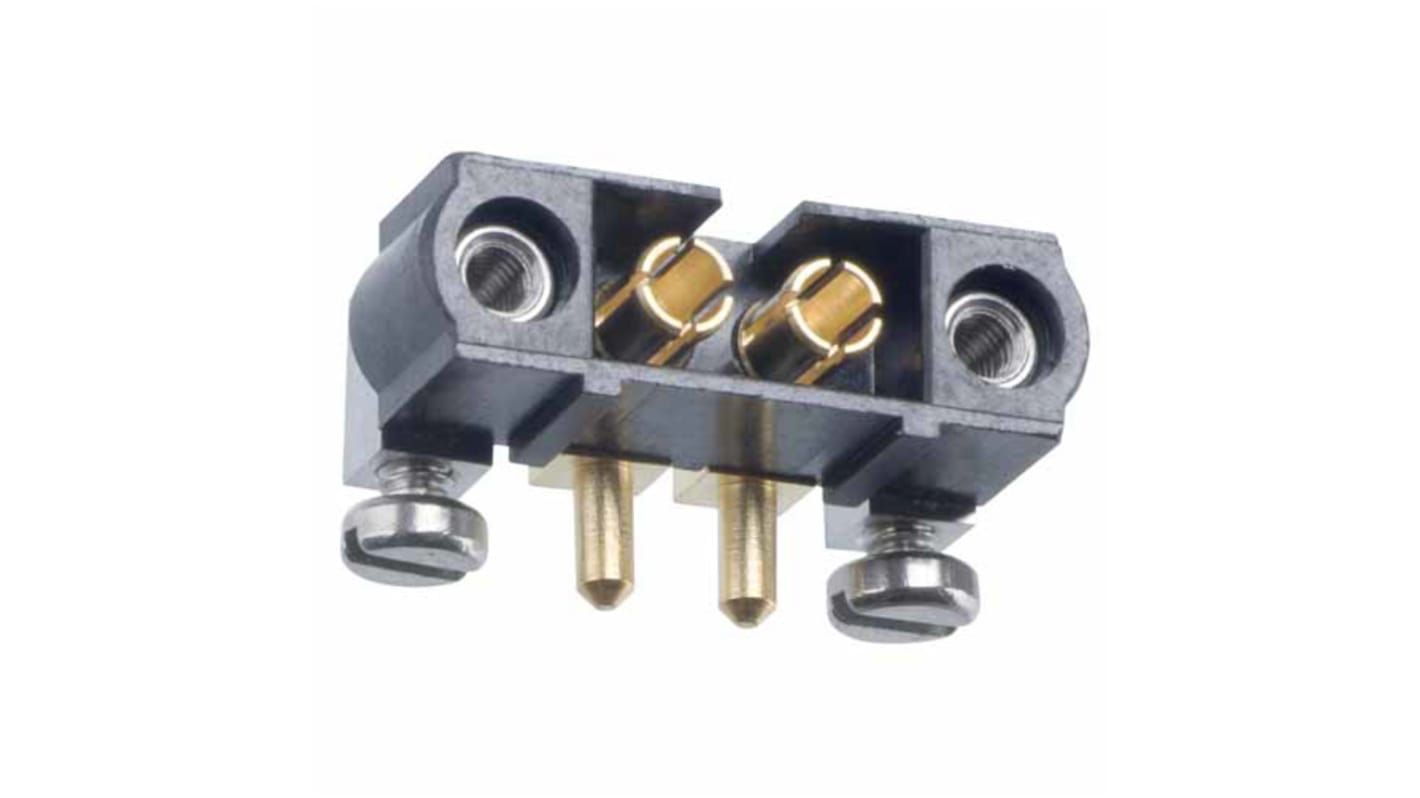

HARWIN Datamate Mix-Tek Series Straight Through Hole PCB Header, 2 Contact(s), 4 mm Pitch, 1 Row, Shrouded
- RS 제품 번호:
- 161-3543
- 제조사 부품 번호:
- M80-5000000M5-02-333-00-000
- 제조업체:
- HARWIN
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 161-3543
- 제조사 부품 번호:
- M80-5000000M5-02-333-00-000
- 제조업체:
- HARWIN
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | HARWIN | |
| Product Type | PCB Header | |
| Series | Datamate Mix-Tek | |
| Pitch | 4mm | |
| Current | 20A | |
| Housing Material | Polyphenylene Sulphide | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 4mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | No | |
| Voltage | 1.2kV | |
| 모두 선택 | ||
|---|---|---|
브랜드 HARWIN | ||
Product Type PCB Header | ||
Series Datamate Mix-Tek | ||
Pitch 4mm | ||
Current 20A | ||
Housing Material Polyphenylene Sulphide | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board, Wire-to-Board | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 4mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals No | ||
Voltage 1.2kV | ||
- COO (Country of Origin):
- GB
Jackscrews + 5mm board mount (with slotted bolts), 2 x power contacts assembled for horizontal PCB connection.
3.5mm length PC Tail.
2.00mm Pitch High-Reliability Datamate connector system.
