Molex MLX Series Straight Through Hole PCB Header, 12 Contact(s), 6.35 mm Pitch, 3 Row, Shrouded
- RS 제품 번호:
- 797-8834
- 제조사 부품 번호:
- 10-84-5120
- 제조업체:
- Molex

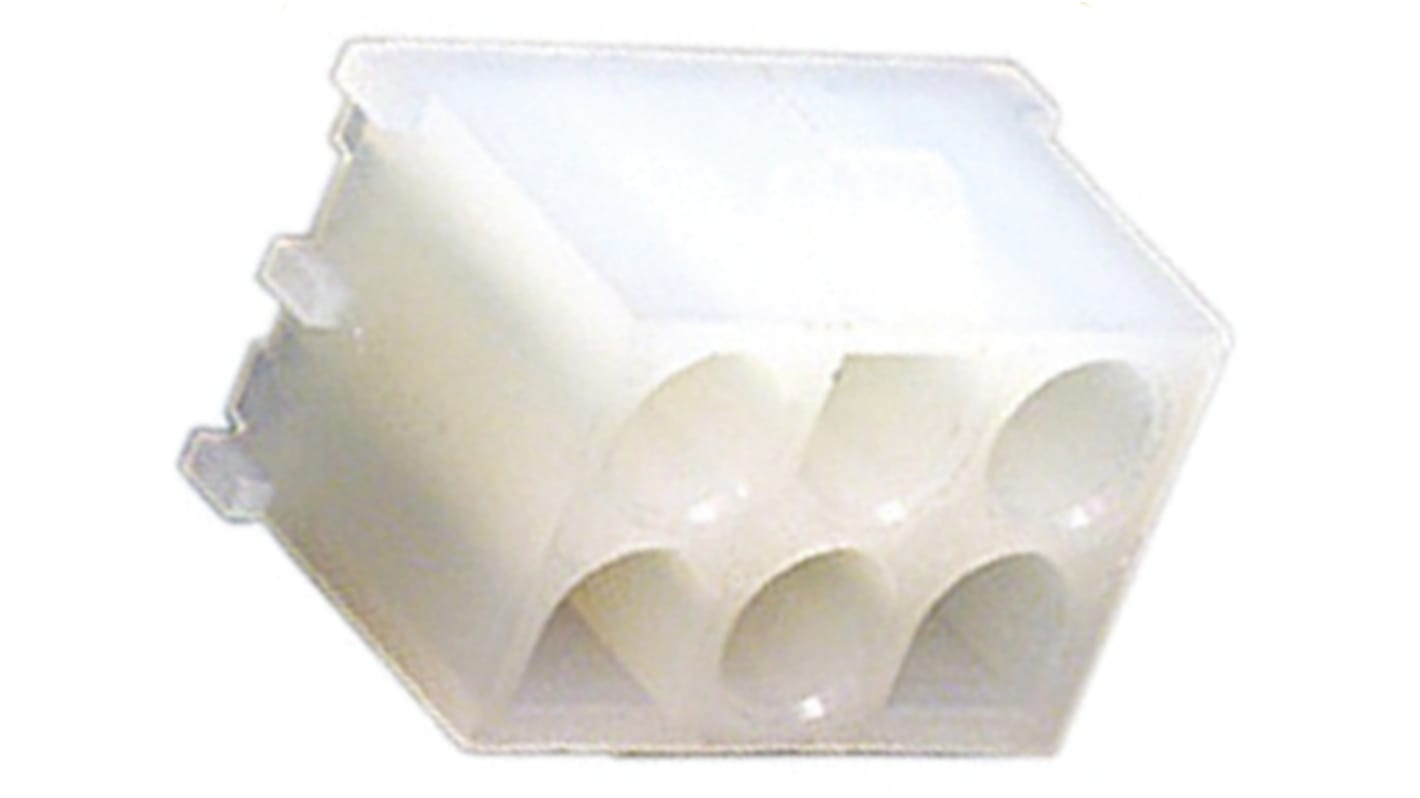

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩8,610.40
일시적 품절
- 2026년 8월 05일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 120 | ₩1,722.08 | ₩8,610.40 |
| 125 - 245 | ₩1,669.44 | ₩8,347.20 |
| 250 - 495 | ₩1,620.56 | ₩8,102.80 |
| 500 - 1245 | ₩1,571.68 | ₩7,858.40 |
| 1250 + | ₩1,522.80 | ₩7,614.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 797-8834
- 제조사 부품 번호:
- 10-84-5120
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Product Type | PCB Header | |
| Series | MLX | |
| Current | 20A | |
| Pitch | 6.35mm | |
| Number of Contacts | 12 | |
| Housing Material | Nylon | |
| Number of Rows | 3 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Tin | |
| Row Pitch | 6.35mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Tail Pin Length | 4.27mm | |
| Standards/Approvals | No | |
| Voltage | 600 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Product Type PCB Header | ||
Series MLX | ||
Current 20A | ||
Pitch 6.35mm | ||
Number of Contacts 12 | ||
Housing Material Nylon | ||
Number of Rows 3 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Contact Plating Tin | ||
Row Pitch 6.35mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Tail Pin Length 4.27mm | ||
Standards/Approvals No | ||
Voltage 600 V | ||
- COO (Country of Origin):
- IN
MLX Power Connector Headers - 42002 Series
A range of 6.35 mm Pitch MLX Series 42002 Vertical Power Connector Headers having Tin (Sn) Plated contacts and MADE from White UL 94V-0 rated Polyester.
Molex MLX Series (0.084in./2.13mm Ø)
