PicoScope 3000 Series, 50 MHz PC Based Oscilloscope 18-Channel

RS 제품 번호:: 846-3399
Distrelec 제품 번호:: 300-18-062
제조사 부품 번호:: PicoScope 3203D MSO
제조업체:: Pico Technology

PicoScope 3000 Series, 50 MHz PC Based Oscilloscope 18-Channel

모든 Oscilloscopes 열람하기

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

RS PRO, RS-6074BC, 70 MHz PC Based PC Oscilloscope, 4 Channels

RS 제품 번호: 220-5864

개당

₩384,040.00

RS 제품 번호:: 846-3399
Distrelec 제품 번호:: 300-18-062
제조사 부품 번호:: PicoScope 3203D MSO
제조업체:: Pico Technology

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	50MHz
	Number of Channels	18
	Model Number	PicoScope 3203D MSO
	Oscilloscope Type	PC Based
	Interface Type	CAN, IIC, LIN, RS232, SPI, UART, USB
	Series	PicoScope 3000
	Standards/Approvals	EN 61010-1:2010, EN 61326-1:2006, WEEE
	Width	170mm
	Height	40mm
	Length	190mm
	Minimum Vertical Sensitivity	4mV/div
	Rise Time	7ns
	Power Source	USB
	Vertical Resolution	8 bit
	Maximum Time Base	5000s/div
	Minimum Time Base	1ns/div
	Maximum Vertical Sensitivity	4V/div

	모두 선택
	브랜드 Pico Technology
	Product Type Oscilloscope
	Bandwidth 50MHz
	Number of Channels 18
	Model Number PicoScope 3203D MSO
	Oscilloscope Type PC Based
	Interface Type CAN, IIC, LIN, RS232, SPI, UART, USB
	Series PicoScope 3000
	Standards/Approvals EN 61010-1:2010, EN 61326-1:2006, WEEE
	Width 170mm
	Height 40mm
	Length 190mm
	Minimum Vertical Sensitivity 4mV/div
	Rise Time 7ns
	Power Source USB
	Vertical Resolution 8 bit
	Maximum Time Base 5000s/div
	Minimum Time Base 1ns/div
	Maximum Vertical Sensitivity 4V/div

COO (Country of Origin):: GB

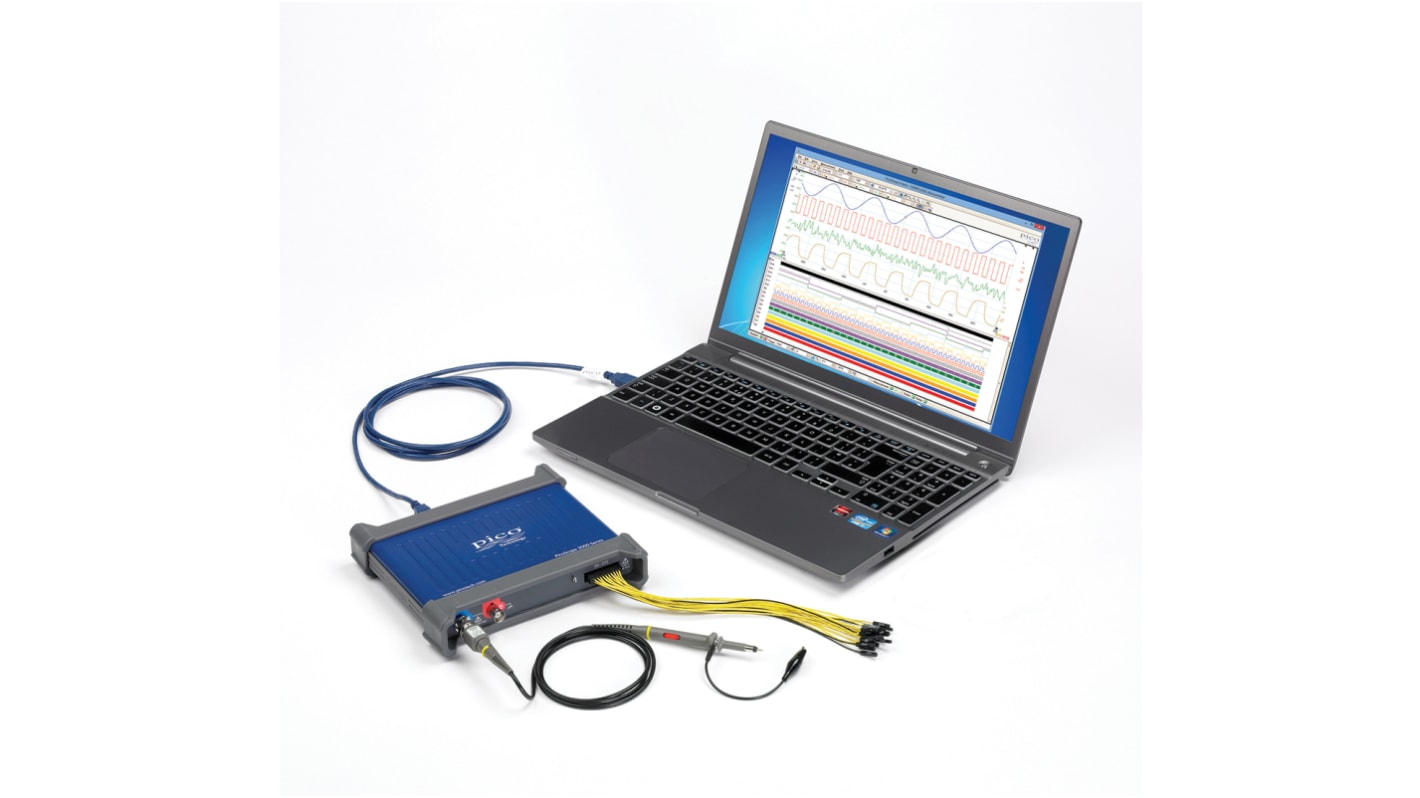

PicoScope 3000 Series Oscilloscope, 50MHz Bandwidth, 8-bit Vertical Resolution - PicoScope 3203D MSO

This oscilloscope is a USB-powered, PC-based instrument designed for mixed-signal capture and analysis. It combines analogue and digital channel capability to observe fast transients and serial buses while relying on a host computer for display and control. The unit connects to a variety of serial interfaces and is intended for portable diagnostic and development tasks where compact, mains-free operation is required.

Features and Benefits:

• 50MHz Bandwidth delivers clear signal reproduction for mid‑frequency work
• 7ns Rise Time captures Rapid edge transitions for timing analysis
• 1ns/div Minimum Time Base enables fine time-resolution measurements
• 4mV/div Minimum Sensitivity detects low-amplitude signals during testing
• 8-bit Vertical Resolution provides consistent amplitude quantisation for analysis

Applications

• Suitable for debugging CAN, I2C and LIN serial networks
• Ideal for analysing SPI and UART digital communications
• Used with laptops for field service waveform inspection
• Can be used for mixed-signal verification in electronics development
• Suitable for portable measurement tasks requiring USB power

How many channels are available for mixed-signal capture?

It provides a total of 18 channels combining analogue and digital inputs to correlate signals across multiple lines.

Which interfaces can I monitor with this instrument?

The unit supports CAN, I2C, LIN, RS232, SPI, UART and USB serial protocols for bus-level capture.

What are the physical dimensions for transport and storage?

The enclosure measures 190mm in length, 170mm in width and 40mm in height.

How is the instrument powered during operation?

It draws power via the USB connection, eliminating the need for an external supply.

What standards and approvals are listed for the device?

It conforms to EN 61010-1:2010 and EN 61326-1:2006 and complies with WEEE.
