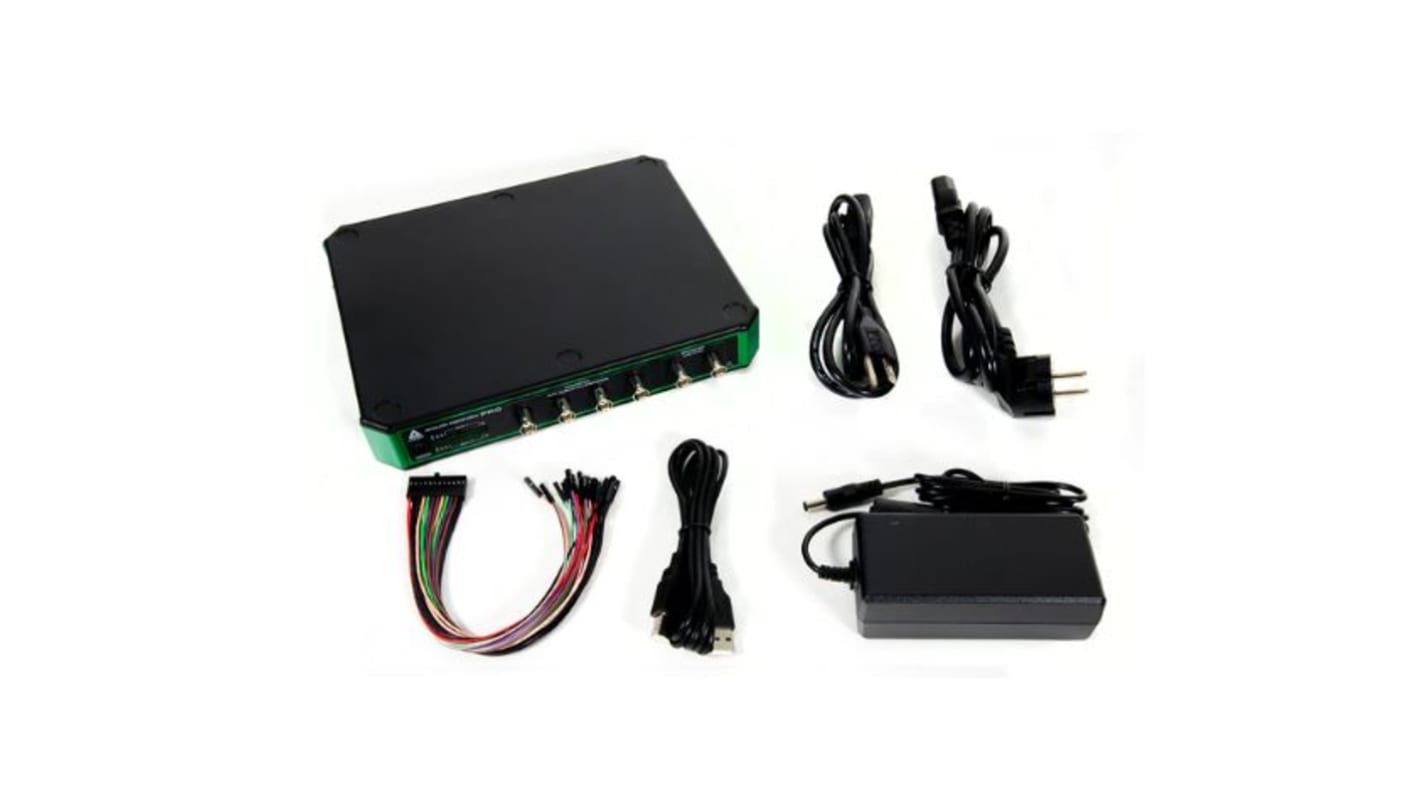

Digilent Analog Discovery Pro 3000 Series, 55 MHz PC Based Oscilloscope 4-Channel

모든 Oscilloscopes 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩2,431,572.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량
한팩당
1 - 4₩2,431,572.00
5 +₩2,382,958.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
222-2679
Distrelec 제품 번호:
302-17-199
제조사 부품 번호:
410-394
제조업체:
Digilent
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Digilent

Product Type

Oscilloscope

Bandwidth

55MHz

Number of Channels

4

Oscilloscope Type

PC Based

Interface Type

IIC, SPI, UART, USB

Series

Analog Discovery Pro 3000

Standards/Approvals

No

Height

38.1mm

Width

194mm

Power Source

USB

Vertical Resolution

14 bit

The Digilent ADP3450 Analog Discovery Pro device is a four channel high-resolution oscilloscope, offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers the Analog Discovery Pro comes with 12 instruments ready to analyse mixed signal systems through our free software, Waveforms.

16 digital channels

2-channel arbitrary waveform generator

12 instruments to analyse mixed signal systems via Waveforms software

Max sampling rate: 0.5GS/s analogue and 125MS/s digital

Terminal-based Linux OS

Ethernet data streaming

2 dedicated external trigger inputs

Used in the Logic Analyser, Pattern Generator, Protocol Analyser, and Digital I/O
