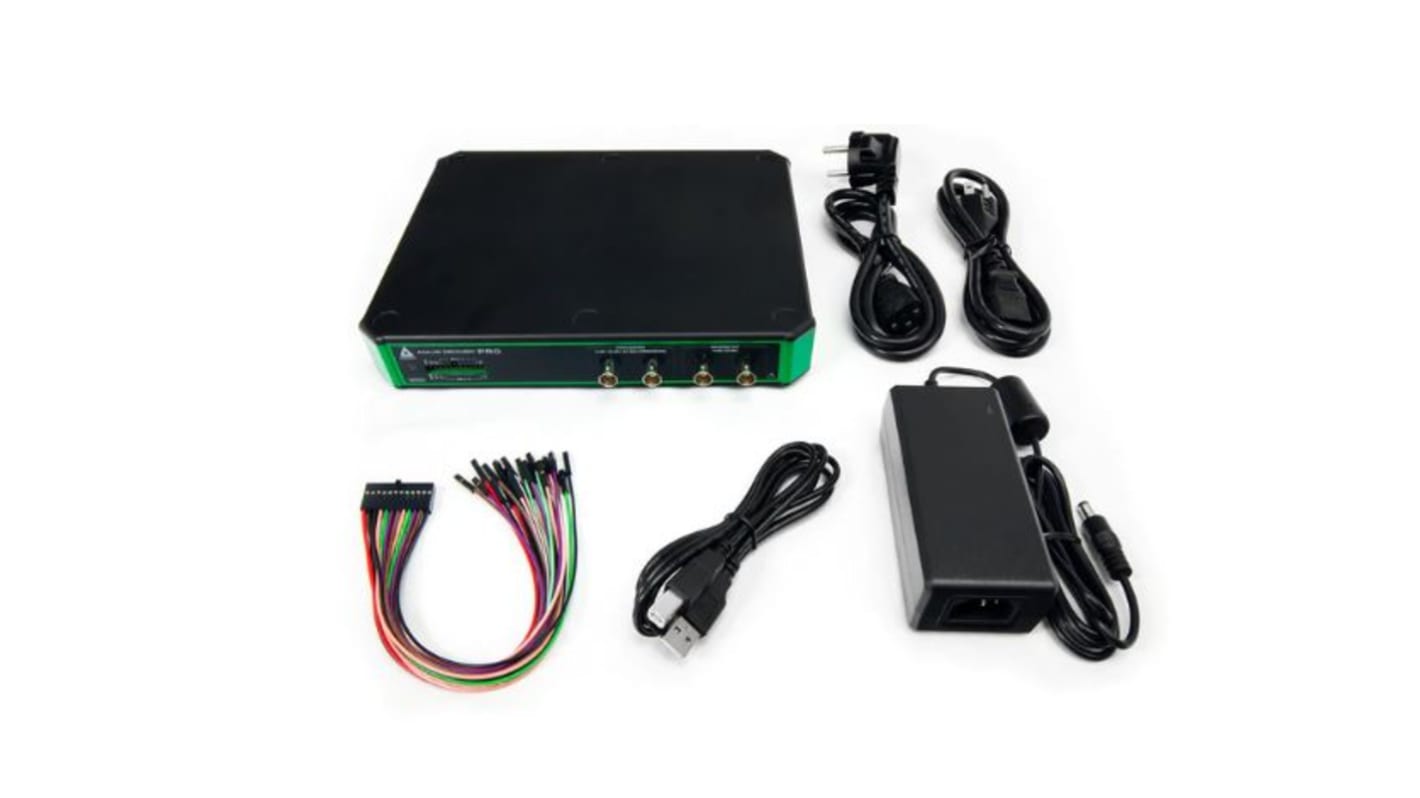

Digilent ADP3250 Analog Discovery Pro 3000 Series, 55MHz PC Based Oscilloscope, 2 Analogue Channels
- RS 제품 번호:
- 222-2677
- Distrelec 제품 번호:
- 302-17-200
- 제조사 부품 번호:
- 410-394-1
- 제조업체:
- Digilent
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩1,568,408.80
재고있음
- 1 개 단위 배송 준비 완료
- 추가로 2025년 12월 12일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩1,568,408.80 |
| 5 + | ₩1,537,050.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 222-2677
- Distrelec 제품 번호:
- 302-17-200
- 제조사 부품 번호:
- 410-394-1
- 제조업체:
- Digilent
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Digilent | |
| Bandwidth | 55MHz | |
| Number of Analogue Channels | 2 | |
| Oscilloscope Type | PC Based | |
| Series | Analog Discovery Pro 3000 | |
| Digital/Analogue | Analogue | |
| 모두 선택 | ||
|---|---|---|
브랜드 Digilent | ||
Bandwidth 55MHz | ||
Number of Analogue Channels 2 | ||
Oscilloscope Type PC Based | ||
Series Analog Discovery Pro 3000 | ||
Digital/Analogue Analogue | ||
The Digilent ADP3250 Analog Discovery Pro device is a two channel high-resolution oscilloscope, offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator, and two dedicated external triggers the Analog Discovery Pro comes with 12 instruments ready to analyse mixed signal systems through our free software, Waveforms.
16 digital channels
2-channel arbitrary waveform generator
12 instruments to analyse mixed signal systems via Waveforms software
Max sampling rate: 0.5GS/s analogue and 125MS/s digital
Terminal-based Linux OS
Ethernet data streaming
2 dedicated external trigger inputs
Used in the Logic Analyser, Pattern Generator, Protocol Analyser, and Digital I/O
2-channel arbitrary waveform generator
12 instruments to analyse mixed signal systems via Waveforms software
Max sampling rate: 0.5GS/s analogue and 125MS/s digital
Terminal-based Linux OS
Ethernet data streaming
2 dedicated external trigger inputs
Used in the Logic Analyser, Pattern Generator, Protocol Analyser, and Digital I/O
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
