PicoScope 6000E Series, 500 MHz PC Based Oscilloscope 4-Channel

모든 Oscilloscopes 열람하기

Subtotal (1 unit)*

₩13,799,180.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩13,799,180.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
201-7877
제조사 부품 번호:
PicoScope 6404E
제조업체:
Pico Technology
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pico Technology

Product Type

Oscilloscope

Bandwidth

500MHz

Number of Channels

4

Model Number

6404E

Oscilloscope Type

PC Based

Interface Type

USB

Series

PicoScope 6000E

Length

245mm

Height

61.50mm

Width

192mm

Standards/Approvals

REACH, RoHS, WEEE

Minimum Vertical Sensitivity

2mV/div

Minimum Time Base

1ns/div

Vertical Resolution

8 bit

Maximum Time Base

5000s/div

Rise Time

850ps

Maximum Vertical Sensitivity

4V/div

Power Source

AC Adapter

COO (Country of Origin):
GB

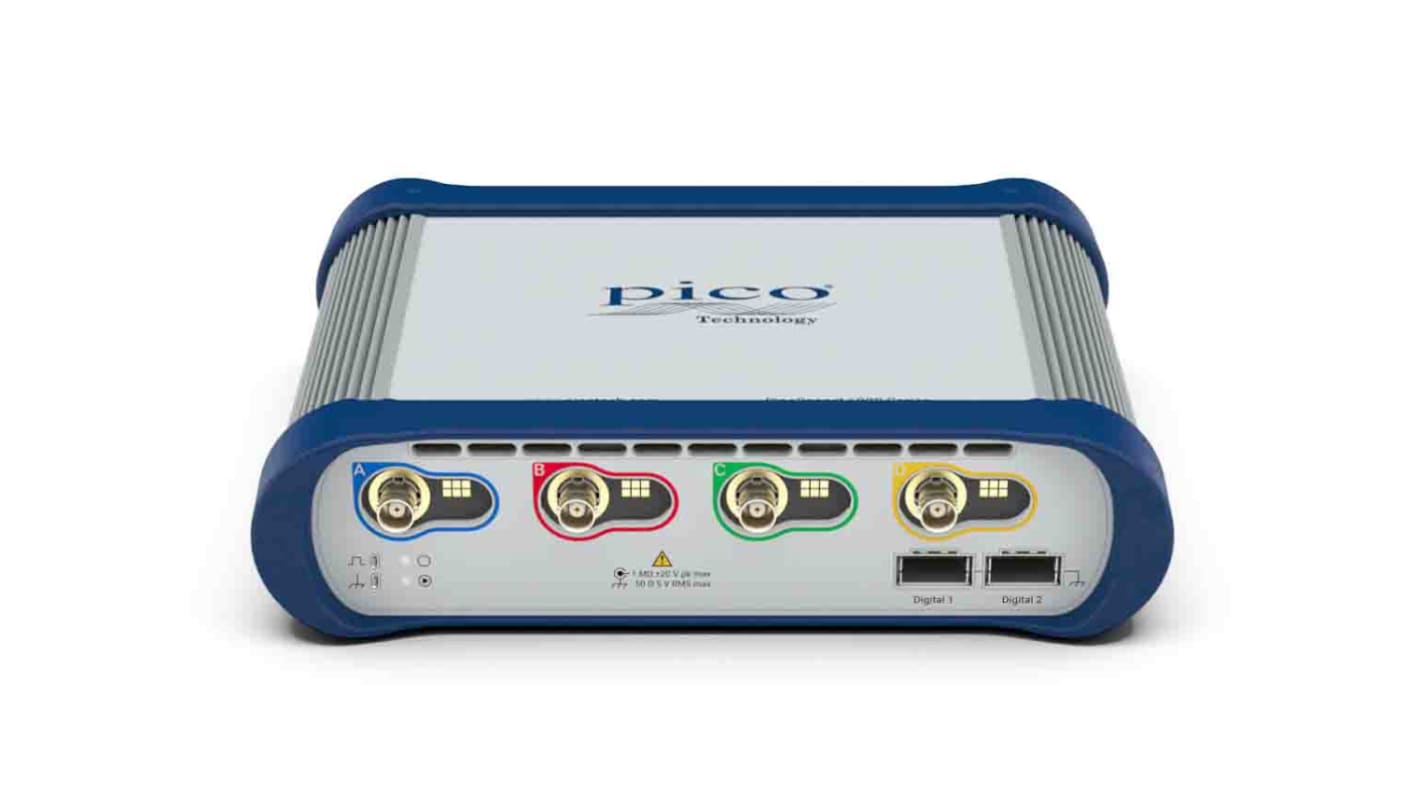

PicoScope 6000E Series Oscilloscope, 500MHz Bandwidth, 4 Channels - PicoScope 6404E


This oscilloscope is a PC-connected instrument designed for high-speed signal capture and analysis in laboratory and field environments. It connects via USB to provide waveform visualisation and measurement without a standalone display, and supports precise timing and amplitude examination for multichannel analogue signals. The unit is powered from an AC adaptor and conforms to common materials and chemical standards.

Features and Benefits:


• 500MHz bandwidth enables clear capture of high-frequency signals
• 1ns/div time base delivers fine temporal resolution for fast events
• 850ps rise time allows accurate edge characterisation
• 2mV/div vertical sensitivity reveals small-amplitude signals
• 8-bit vertical resolution supports Rapid waveform digitisation

Applications


• Suitable for debugging high-speed analogue circuits
• Ideal for validating signal integrity in mixed-signal designs
• Used with PC-based software for automated test routines
• Can be used for laboratory measurements requiring four channels
• Suitable for portable test setups requiring USB connectivity

What Interface is required to operate the instrument?


It connects to a host computer using a USB Interface for data transfer and control.

How is the unit powered during bench or field use?


The instrument requires an external AC adaptor to supply operating power.

What mechanical footprint should be allowed for installation?


Plan for a device occupying 245 mm in length, 192 mm in width and 61.50 mm in height.

Are there any environmental or chemical standards referenced?


The product meets REACH, RoHS and WEEE standards for materials and disposal.
