Siemens SCALANCE TAP104 Series Wall, DIN Rail Access Controller, 100Mbps Transmission, 24 V dc

모든 Network Hubs 열람하기

Subtotal (1 unit)*

₩1,037,835.20

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 3월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,037,835.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
202-3793
Distrelec 제품 번호:
301-24-553
제조사 부품 번호:
6GK5104-0BA00-1SA2
제조업체:
Siemens
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Siemens

Product Type

Access Controller

Transmission Speed

100Mbps

Nominal Supply Voltage

24 V dc

Mount Type

Wall, DIN Rail

Series

SCALANCE TAP104

For Use With

Ethernet Network

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Width

35 mm

Standards/Approvals

RoHS, UL, CE, CSA

Weight

240g

Height

152mm

Depth

135mm

Number of Ports

2

Switch Type

Managed

Special Features

Diagnostics LED

Protocol Type

Profinet

Compatible USB Cable Version

No

COO (Country of Origin):
DE

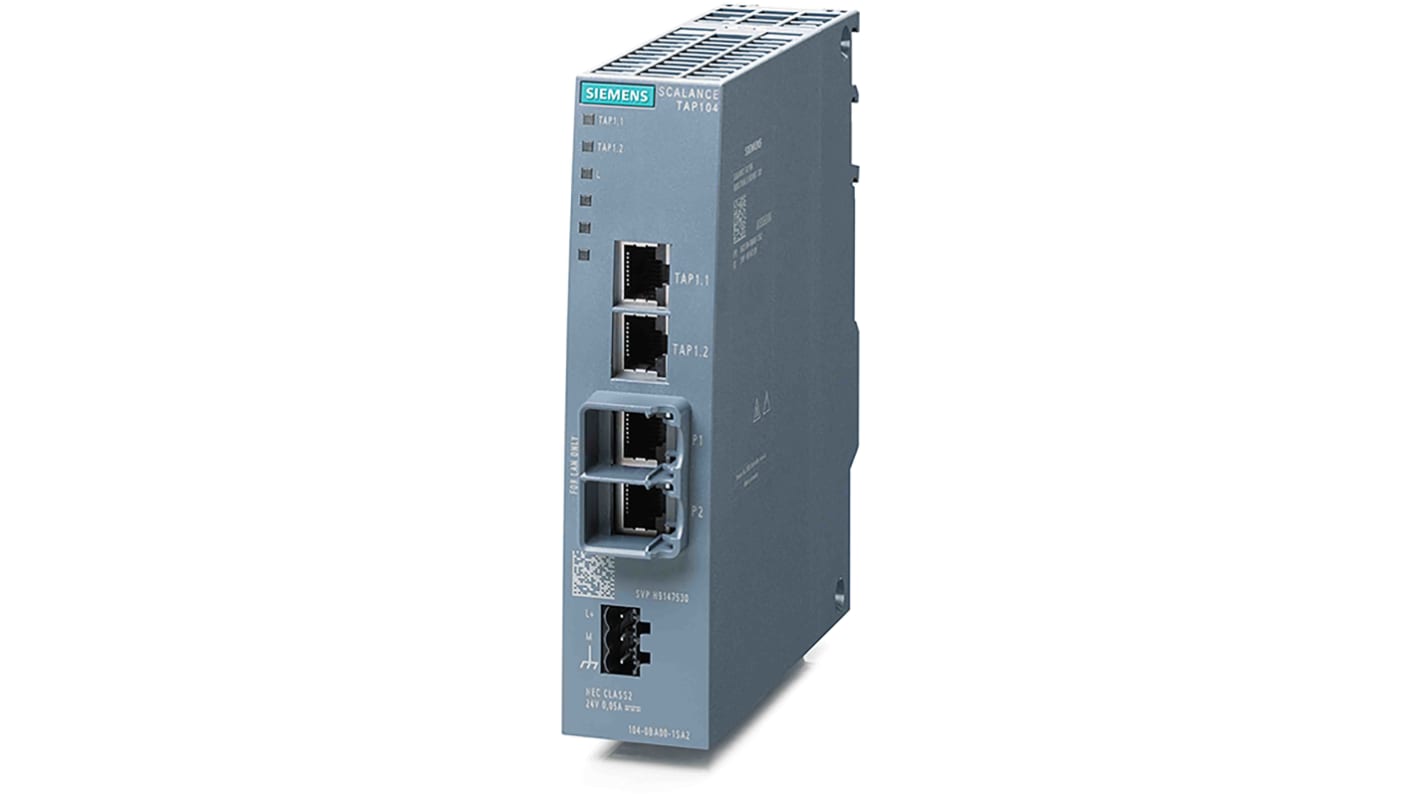

Siemens Access Controller, 2 x RJ45 Ports, 24V DC Supply Voltage - SCALANCE Series - 6GK5104-0BA00-1SA2


Assess the strength of the signal between your communication devices using this test access port from Siemens. It has two RJ45 ports that let you connect two components at once for increased productivity. It also has two diagnostic ports that allow for efficient testing and troubleshooting. Thanks to a maximum transmission speed of 100Mbps, you can swiftly transfer and receive large amounts of data. An integrated 0.5A fuse provides protection from short circuits, helping to safeguard your equipment against electrical damage. For versatile installation, you can mount this device on a DIN rail or a wall. You'll find it commonly used in medical facilities and robotics applications.

Features & Benefits


Is this test access port energy-efficient?


Yes, this device has a maximum current consumption of just 60mA and a power loss of just 1.44W, making it an energy-efficient choice.
