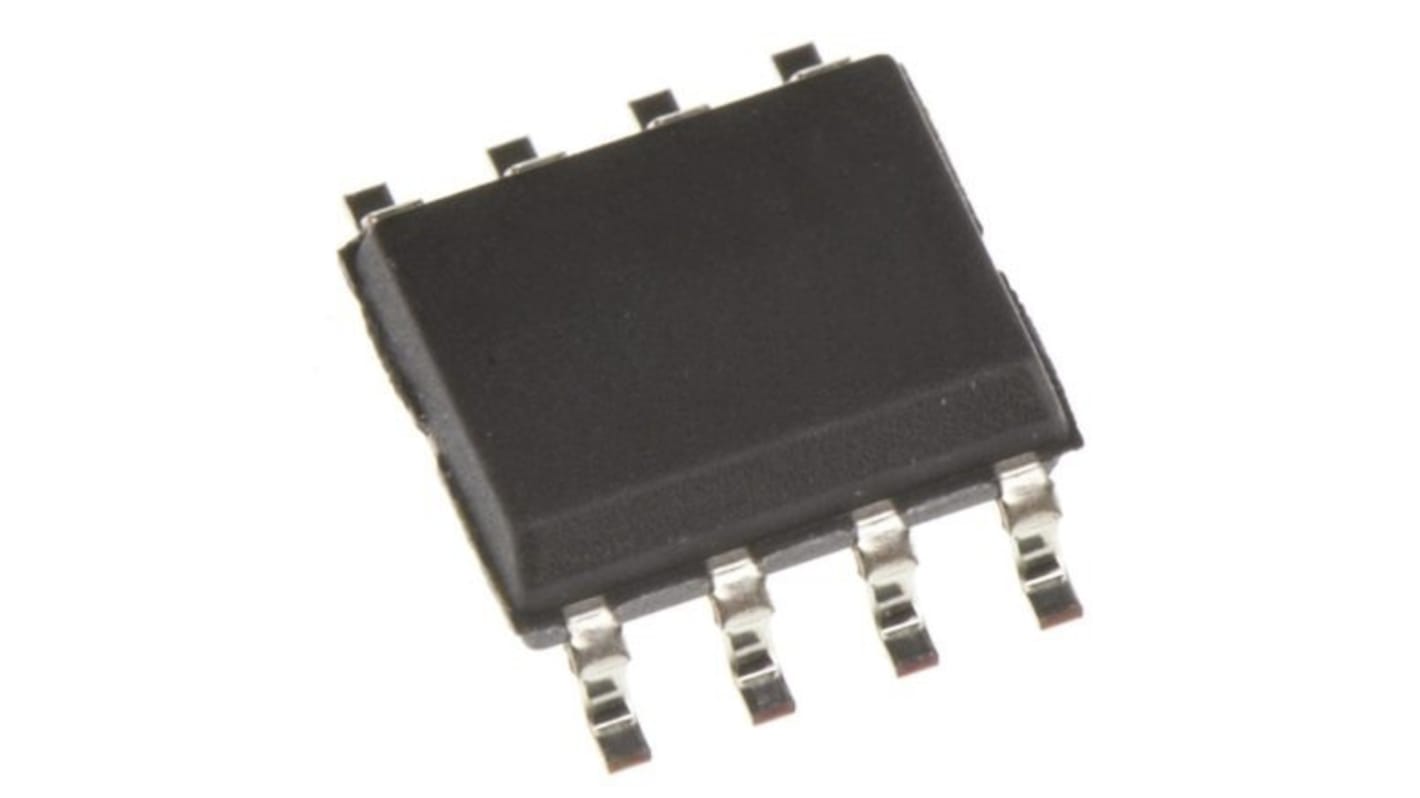

Renesas Electronics Multiprotocol Transceiver 8-Pin MSOP, ISL3159EIBZ
- RS 제품 번호:
- 263-0216
- 제조사 부품 번호:
- ISL3159EIBZ
- 제조업체:
- Renesas Electronics
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩14,024.80
재고있음
- 추가로 2026년 3월 02일 부터 980 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 20 | ₩2,804.96 | ₩14,024.80 |
| 25 - 45 | ₩2,402.64 | ₩12,013.20 |
| 50 - 95 | ₩2,357.52 | ₩11,787.60 |
| 100 - 245 | ₩2,052.96 | ₩10,264.80 |
| 250 + | ₩1,992.80 | ₩9,964.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 263-0216
- 제조사 부품 번호:
- ISL3159EIBZ
- 제조업체:
- Renesas Electronics
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Renesas Electronics | |
| Product Type | Multiprotocol Transceiver | |
| Number of Transmitters | 1 | |
| Number of Receivers | 1 | |
| Number of Transceivers | 1 | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Minimum Supply Voltage | 5V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 5V | |
| Transmitter Signal Type | Differential | |
| Minimum Operating Temperature | -40°C | |
| Receiver Signal Type | Differential | |
| Maximum Operating Temperature | 125°C | |
| Power Supply Type | Single | |
| Series | ISL3159E | |
| Width | 3 mm | |
| Standards/Approvals | RoHS | |
| Length | 3mm | |
| Supply Current | 4mA | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Renesas Electronics | ||
Product Type Multiprotocol Transceiver | ||
Number of Transmitters 1 | ||
Number of Receivers 1 | ||
Number of Transceivers 1 | ||
Mount Type Surface | ||
Package Type MSOP | ||
Minimum Supply Voltage 5V | ||
Pin Count 8 | ||
Maximum Supply Voltage 5V | ||
Transmitter Signal Type Differential | ||
Minimum Operating Temperature -40°C | ||
Receiver Signal Type Differential | ||
Maximum Operating Temperature 125°C | ||
Power Supply Type Single | ||
Series ISL3159E | ||
Width 3 mm | ||
Standards/Approvals RoHS | ||
Length 3mm | ||
Supply Current 4mA | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TW
The Renesas Electronics multiprotocol transceivers is a transmitters-receivers interface circuits which feature a low power shutdown mode to conserve energy in battery powered applications. It also features a hysteresis to greatly improve noise rejection.
Low quiescent supply current
Low current shutdown mode
Building environmental control systems
