DiodesZetex Multiprotocol Transceiver 129-Pin LQFP, PI7C9X111SLBFDE

RS 제품 번호:: 216-310
제조사 부품 번호:: PI7C9X111SLBFDE
제조업체:: DiodesZetex

DiodesZetex Multiprotocol Transceiver 129-Pin LQFP, PI7C9X111SLBFDE

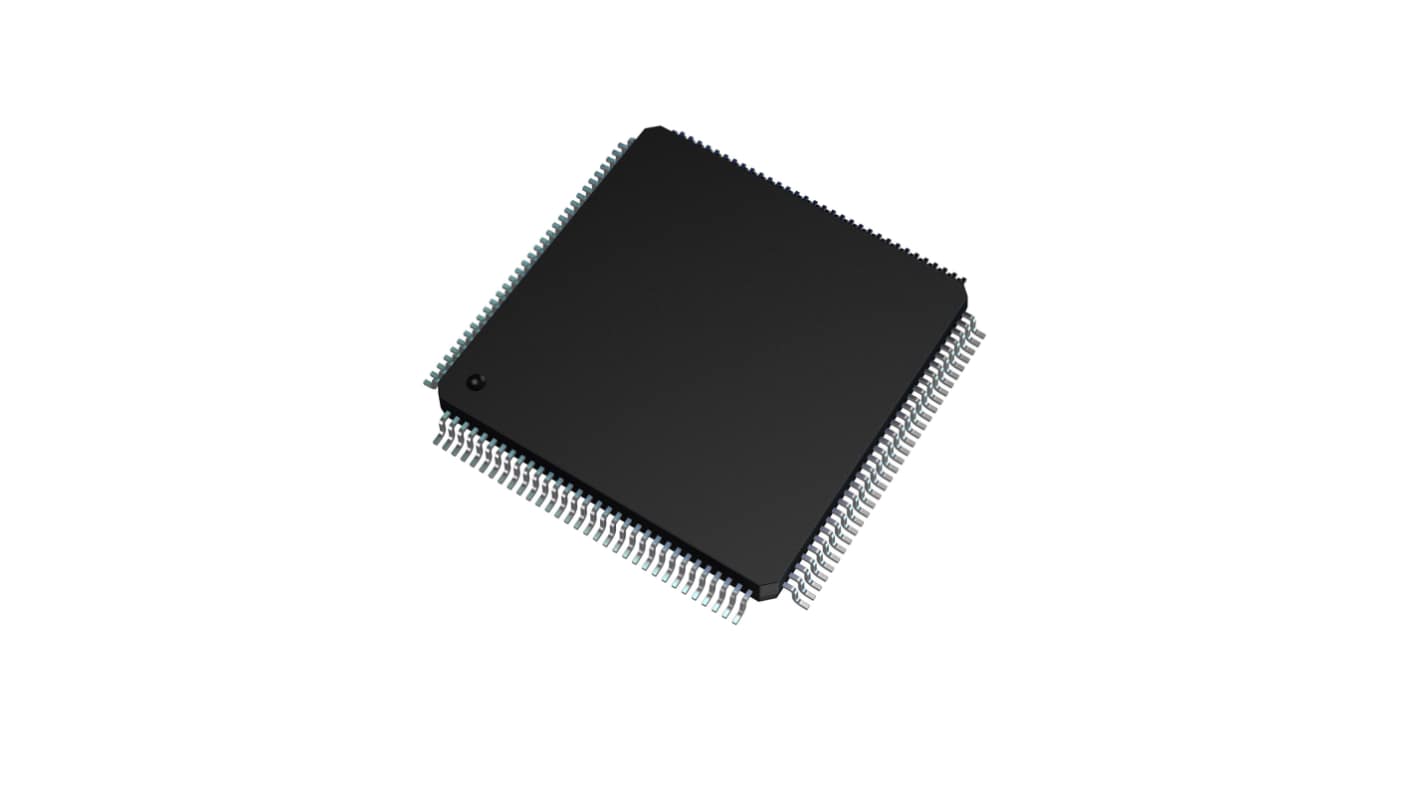

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩20,698.80

일시적 품절

80 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩20,698.80
10 - 99	₩18,630.80
100 - 499	₩17,183.20
500 +	₩15,923.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 216-310
제조사 부품 번호:: PI7C9X111SLBFDE
제조업체:: DiodesZetex

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	DiodesZetex
	Number of Transmitters	27
	Maximum Data Rate	480Mbps
	Product Type	Multiprotocol Transceiver
	Number of Receivers	35
	Number of Transceivers	1
	Mount Type	Surface
	Package Type	LQFP
	Pin Count	129
	Minimum Supply Voltage	3V
	Transmitter Signal Type	Differential USB Signal
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	0°C
	Receiver Signal Type	Differential USB Signal
	Maximum Operating Temperature	85°C
	Interface Standards	USB 3.0, USB 2.0 High-Speed (480 Mbps)
	Height	1mm
	Standards/Approvals	USB 2.0
	Power Supply Type	Single
	Series	PI7C9
	Length	6.4mm
	Width	3.9 mm
	Automotive Standard	No

	모두 선택
	브랜드 DiodesZetex
	Number of Transmitters 27
	Maximum Data Rate 480Mbps
	Product Type Multiprotocol Transceiver
	Number of Receivers 35
	Number of Transceivers 1
	Mount Type Surface
	Package Type LQFP
	Pin Count 129
	Minimum Supply Voltage 3V
	Transmitter Signal Type Differential USB Signal
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature 0°C
	Receiver Signal Type Differential USB Signal
	Maximum Operating Temperature 85°C
	Interface Standards USB 3.0, USB 2.0 High-Speed (480 Mbps)
	Height 1mm
	Standards/Approvals USB 2.0
	Power Supply Type Single
	Series PI7C9
	Length 6.4mm
	Width 3.9 mm
	Automotive Standard No

Datasheet - PI7C9X111SLBFDE

COO (Country of Origin):: TW

The DiodesZetex PCIe Bridge is compliant with the PCI Express Base Specification, Revision 1.1, the PCI Express Card Electromechanical Specification, Revision 1.1, the PCI Local Bus Specification, Revision 3.0 and PCI Express to PCI/PCI-X Bridge Specification, Revision 1.0. supports transparent mode operation. The 32-bit PCI downstream port is 66MHz capable. In reverse bridge mode, it has a 32-bit PCI upstream port and an x1 PCI Express downstream port.

Totally lead free and fully RoHS compliant

Halogen and antimony free

ASPM support

Beacon support

ECRC and advanced error reporting

Maximum payload size to 512 byte

DiodesZetex Multiprotocol Transceiver 129-Pin LQFP, PI7C9X111SLBFDE
