RS PRO RS-9968BT Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

모든 Multimeters 열람하기

Subtotal (1 unit)*

₩313,170.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 38 개 단위 배송 준비 완료
  • 추가로 2026년 3월 04일 부터 104 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩313,170.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
204-8304
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Multimeter Type

Handheld

Model Number p

RS-9968BT

Display Type

Digital

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Duty Cycle, Resistance, Temperature

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum Resistance Measurement

60 MΩ

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum Capacitance Measurement

60mF

Absolute Maximum Temperature Measurement

+1000°C

True RMS

Yes

Connectivity

Bluetooth

Maximum Frequency

10MHz

AC Current Measurement Resolution

0.1 uA

DC Current Measurement Resolution

0.1 uA

DC Voltage Measurement Resolution

100mV

AC Voltage Measurement Resolution

100mV

Resistance Measurement Resolution

0.1Ω

Safety Category Level

CAT III, CAT IV

Temperature Measurement Resolution

-20 ℃→1000 ℃

Safety Category

CAT III 1000 V, CAT IV 600V

Capacitance Measurement Resolution

0.01nF

Best DC Voltage Accuracy

±0.9%+4

Best Temperature Measurement Accuracy

±1.5 °C+3 °C

Safety Category Voltage

600 V, 1000V

Best AC Current Accuracy

±2.0%+5

Height

50mm

Minimum Operating Temperature

0°C

Weight

342g

Best Capacitance Measurement Accuracy

±2.0%+10

Best AC Voltage Accuracy

±1.0%+40

Length

79mm

Best Resistance Measurement Accuracy

±1%+5

Best DC Current Accuracy

±1.8%+5

Maximum Operating Temperature

+40°C

Dimensions

170 x 79 x 50mm

Width

170mm

COO (Country of Origin):
CN

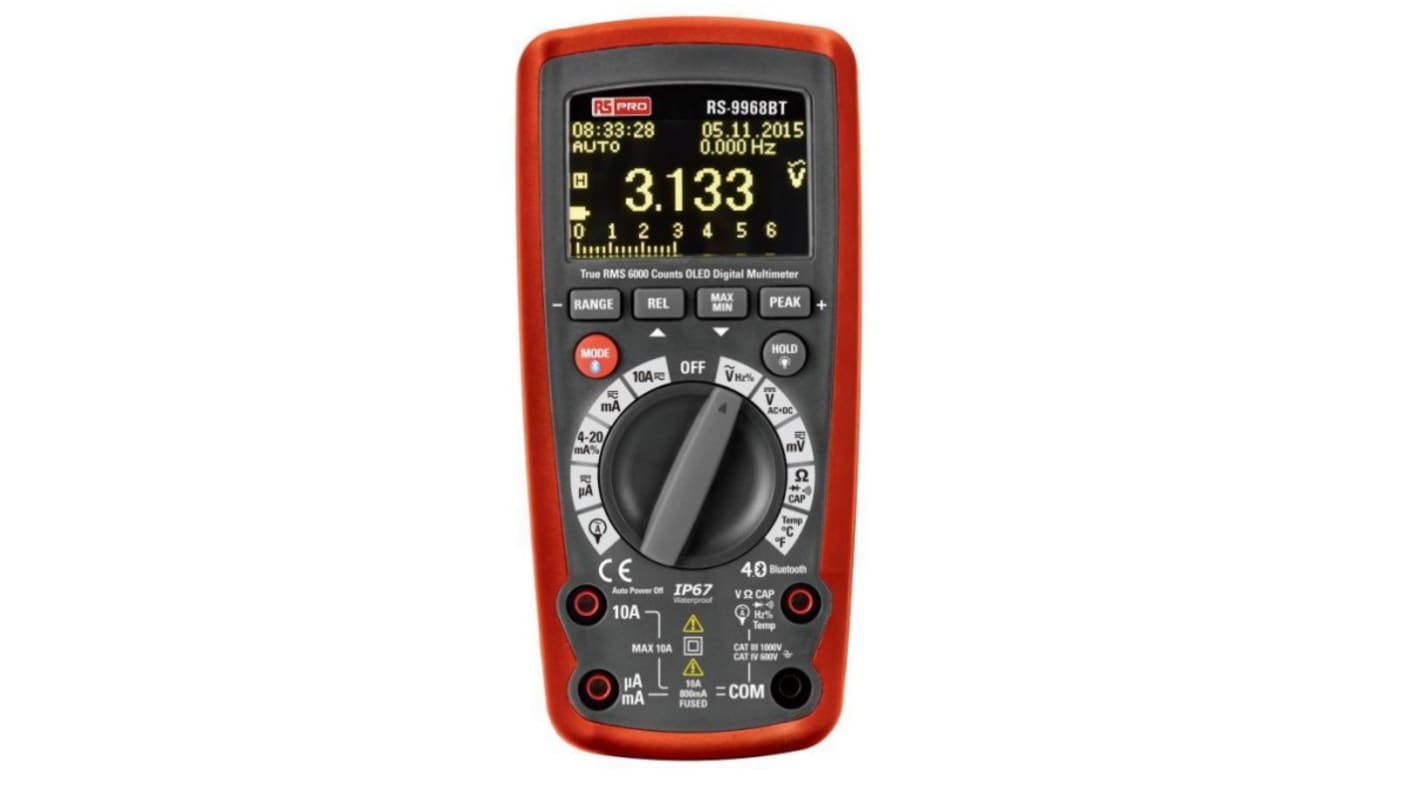

RS PRO RS-9968BT Handheld True RMS Digital Multimeter, Bluetooth and Wifi Enabled


Introducing the RS PRO RS-9968BT Handheld TRMS Digital Multimeter, designed with a Bluetooth function for easy and wireless data transmission. This datalogging multimeter that has the ability to measure capacitance, voltage, and continuity, with the added benefit of being able to take precision low-value resistance measurements. It offers a robust and compact design, allowing for portability and protection from harsh working environments with readings clearly displayed on the high-quality OLED screen. A premium RS PRO digital multimeter like this is an essential addition to any engineer’s or technician’s test and measurement kit for accurate and reliable results.

Features and Benefits:


  • This RS PRO Digital Multimeter is compact and handheld tester with a double moulded plastic housing and an IP67 waterproof rating making it an essential test and measurement tool for those working in extreme conditions

  • It measures capacitance, voltage, resistance, frequency/duty cycle, continuity, electrical current, temperature and diode with accurate and reliable readings for the best performance thanks to the external flex clamp

  • In addition to this, the meter features built-in Bluetooth technology for easy and wireless transmission of data

  • Thanks to the intelligent logging function, the Trend Capture feature offers easy review of the accumulated data and can easily identify trends from this, saving valuable time and resource for analysis

  • The large digital backlit OLED screen with analogue bar graph functionality clearly displays results for easy recording of the measurement outcomes, even in low-light conditions

  • The digital multimeter offers an auto-power off function, as well as a battery capacity indicator for easier battery life management

  • This multimeter has a low resistance range of 0 – 60 Ω and has a maximum output current of 10 A

  • Supplied with test leads, 1 x 9 V battery and a Type K temperature probe

Applications:


A digital multimeter or DMM is an essential test tool that measures electrical values such as voltage, current, and resistance. A DMM is used as a standard diagnostics tool or device by technicians and electrical engineers in the following areas:
  • Electrical and electronics industries

  • Cable installation

  • Construction

  • Industrial manufacturing

What is the difference between an analogue and a digital multimeter?


The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually an LED or LCD screen) whereas the analogue version has a needle to show the value.

Why RS PRO?


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards and Certifications:


  • EN61010-1 CAT IV 600V, CAT III 1000V

  • 1000V input protection on all ranges

  • 10A/1000V & 0.8A/1000V fast fuses protection on current ranges

Note

A kit of two products, the multimeter 204-8304 and also the current clamp 161-1631.
204-8325 includes UKAS Calibrated 204-8304 and also the current clamp 161-1631.
204-8324 includes RS Calibrated for 204-8304 and also the current clamp 161-1631.
