Simex LED Digital Panel Multi-Function Meter for Current, Voltage, 90.5mm x 43mm

모든 Multi Function Panel Meters 열람하기

Subtotal (1 unit)*

₩433,659.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 1 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩433,659.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
914-8520
제조사 부품 번호:
SRL-49-1841-1-4-001
제조업체:
Simex
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Simex

Properties Measured

Current, Voltage

Display Type

LED

Cutout Height

90.5mm

Cutout Width

43mm

Depth

102mm

Number of Digits

4

Digit Height

9 mm

Minimum Temperature

0°C

Maximum Temperature

+50°C

Measurement Range

0 → 10 V, 0 → 20 mA

Minimum Measurement

0 mA, 0 V

Approvals

CE

Meter Type

Digital

COO (Country of Origin):
PL

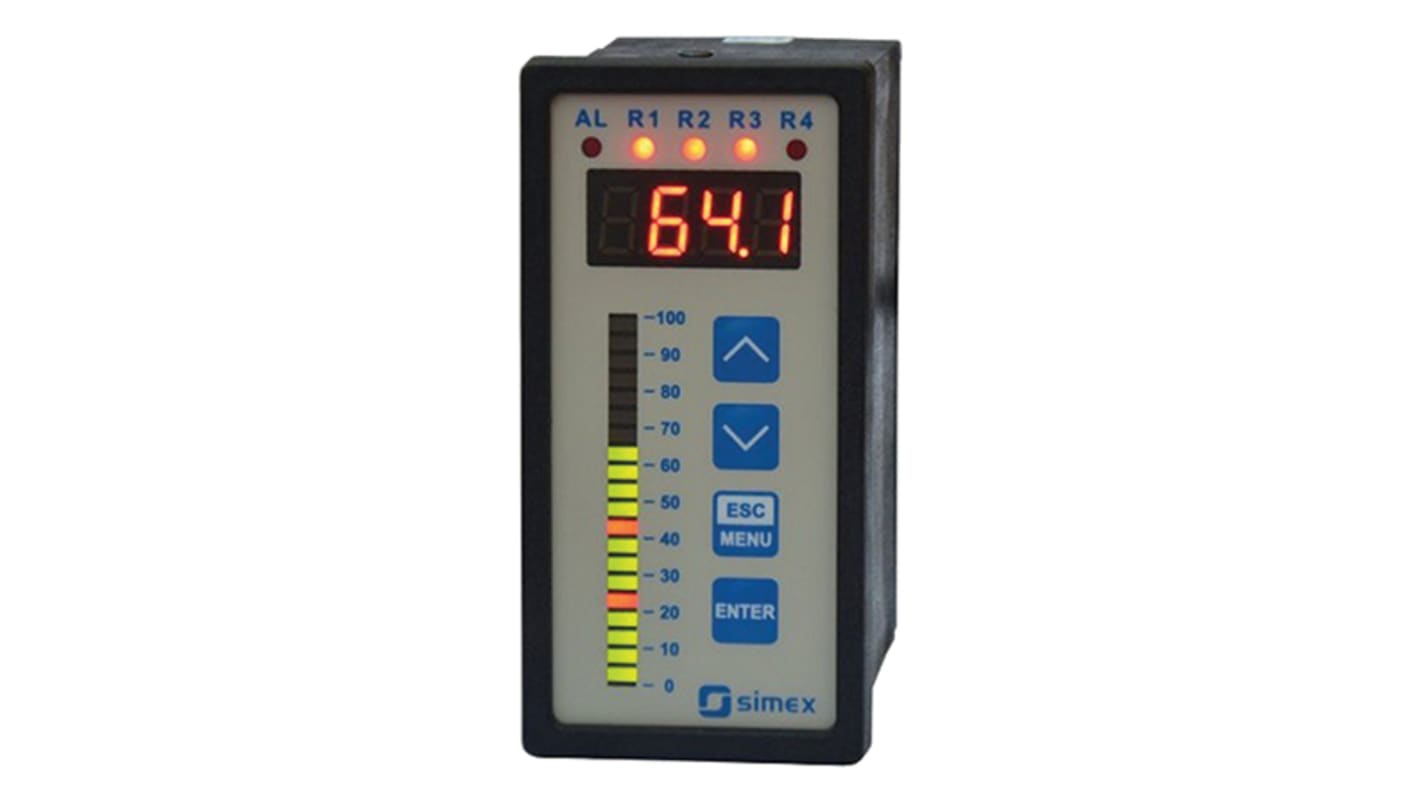

SRL-49 Bar Graph Meter


The SRL-49 is a bar graph meter designed for measuring typical current or voltage signals. The readout of these signals is presented on a four-decade LED display and a 20-point, two-colour bar graph. The output on this meter is designed to supply measuring transducers and the RS485 port enables data transmission in production process monitoring systems.
The features of this bar graph make it a popular choice for various process control systems.

• 4-digit (9 mm) LED display
• Analogue output- active or passive
• 0/4-20 m A, 0/1-5 V, 0/2-10 V inputs
• Wide range of characteristic curves- linear, square root, quadratic, user-defined and volume characteristic for cylindrical tanks
• RS485/Modbus RTU communication interface
• Configuration with local keyboard or free S-Config software via RS485 port
• Signal peak value detection
• Free configuration software S-Config
• 230 V ac power supply
