Red Lion CUB5RT LCD Digital Panel Multifunction Meter for Temperature, 54.6 mm x 76.2 mm

모든 Multi Function Panel Meters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩517,179.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량
한팩당
1 - 4₩517,179.00
5 - 9₩496,489.50
10 +₩476,638.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
905-5504
제조사 부품 번호:
CUB5RTB0
제조업체:
Red Lion
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Red Lion

Product Type

Digital Panel Multifunction Meter

Properties Measured

Temperature

Display Type

LCD

Cutout Height

54.6mm

Cutout Width

76.2mm

Depth

43.4mm

Number of Digits

5

Digit Height

12.2mm

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

75°C

Standards/Approvals

CISPR 11 Class A, EN 61326-1, IEC/EN 61010-1

Maximum Measurement

850 °C

Series

CUB5RT

Meter Type

Electronic

COO (Country of Origin):
US

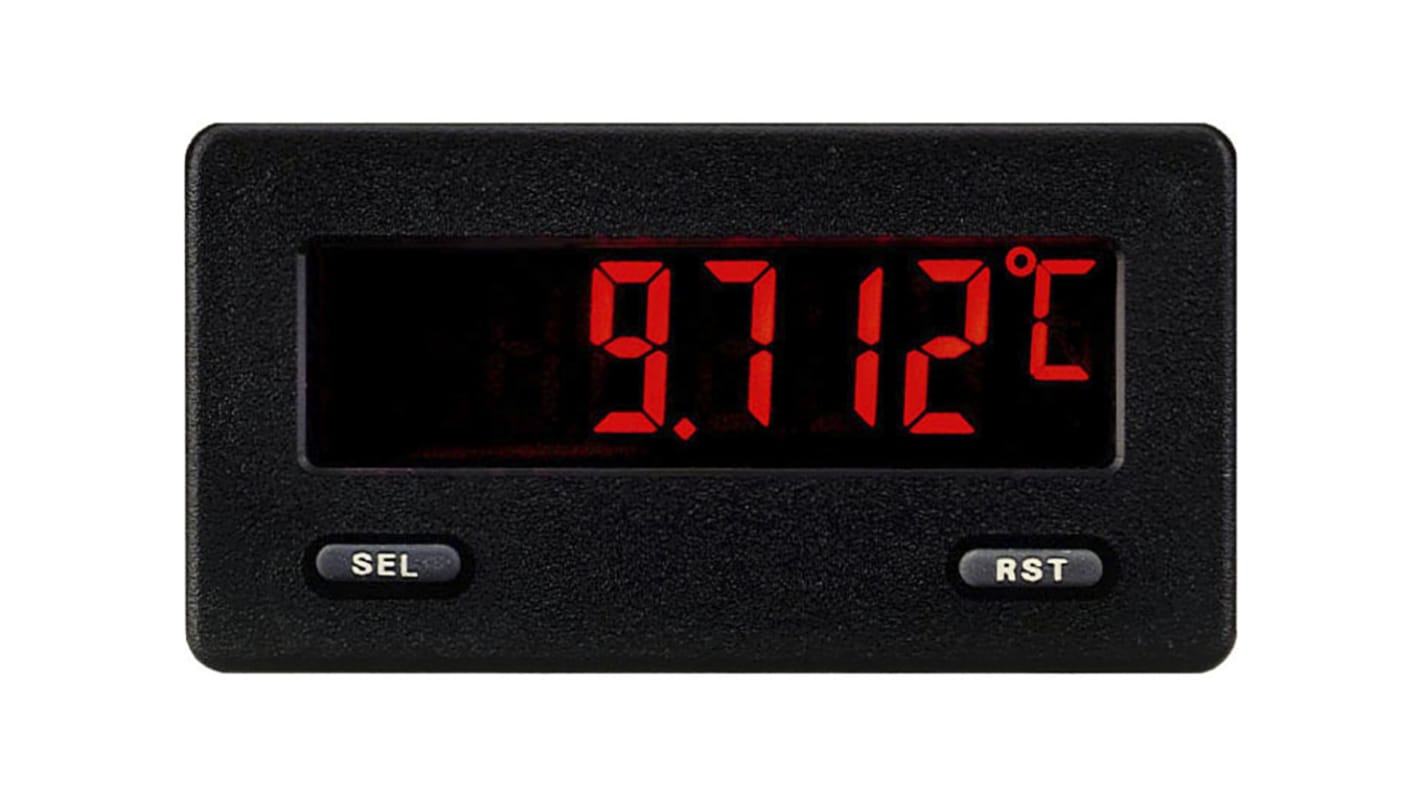

CUB5RT Miniature Electronic RTD Meter


The CUB5RT provides the user with the ultimate flexibility, from its complete user programming to the optional setpoint control and communications capability.

It accepts an RTD input and provides a temperature display in ̊F or ̊C. The meter also features minimum and maximum display capture, display offset, ̊F or ̊C indicator and programmable user input.

• 5-digit (12.2 mm) LCD display

• LCD reflective or green/red LED backlighting

• RTD inputs

• Programmable temperature offset

• Selectable ̊F or ̊C with 1° or 0.1° resolution

• ̊ F or ̊C display annunciators

• Minimum and maximum display capture

• Operates from 9-28 V dc power source

• Front panel or Crimson® programmable

• Display colour change capability at setpoint output

• NEMA 4X/IP65 sealed front bezel
