Development Kit for SGD 43-A Display

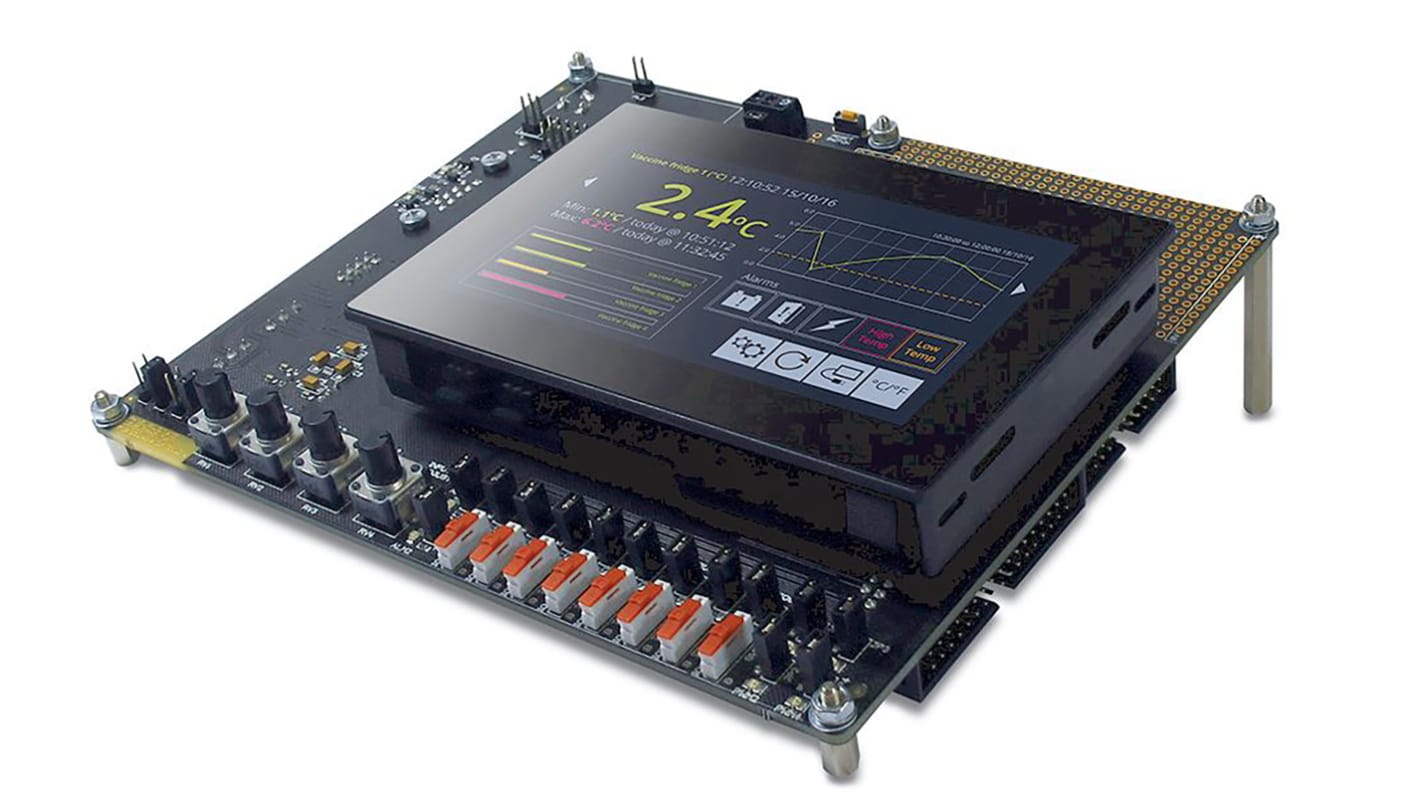

SGD 43-A DK+ is a development kit for the SGD 43-A display. The development board itself provides switches, dials, LEDs and screw terminal connections to quickly connect to and test all of the input/output functionality of the PanelPilotACE display.

The development kit, SGD 43-A-DK+, is the best choice if you are starting to develop on the PanelPilotACE platform. It includes all you need to begin: an SGD 43-A, a development board and a USB cable. The board provides switches, dials, LEDs and screw terminal connections for all the input and output functionality of the SGD 43-A.

Panel Pilot ACE Design Studio Software can be downloaded free from the dedicated website

PanelPilot ACE Display Specifications

4.3" colour TFT screen

4 single-ended bipolar inputs (± 40 V DC)

Responsive capacitive touch-screen functionality

PWM and digital output control

Programmable with the USB interface

Simple panel mounting solution

Screw terminal connections

Communicate with other devices using RS-232, I²2C or SPI

PanelPilot Development Board Specifications

Prototyping "free" area allows for circuitry testing to be carried out with the display

2x labelled alarm outputs, coupled with LED indication for output status recognition

8x labelled digital I/O with LED indication

4x labelled PWM outputs with LED indication

4x analogue inputs supporting ±5V DC variable

RS232 9-way D-Sub plug

Dedicated SGD 43-A & USB connections for uploads & power

Supports power via USB or 2.1mm DC power supply (RS Stock No. 706-8088 typical)

Note

Please consult the datasheet when using an external power supply for operational parameters
