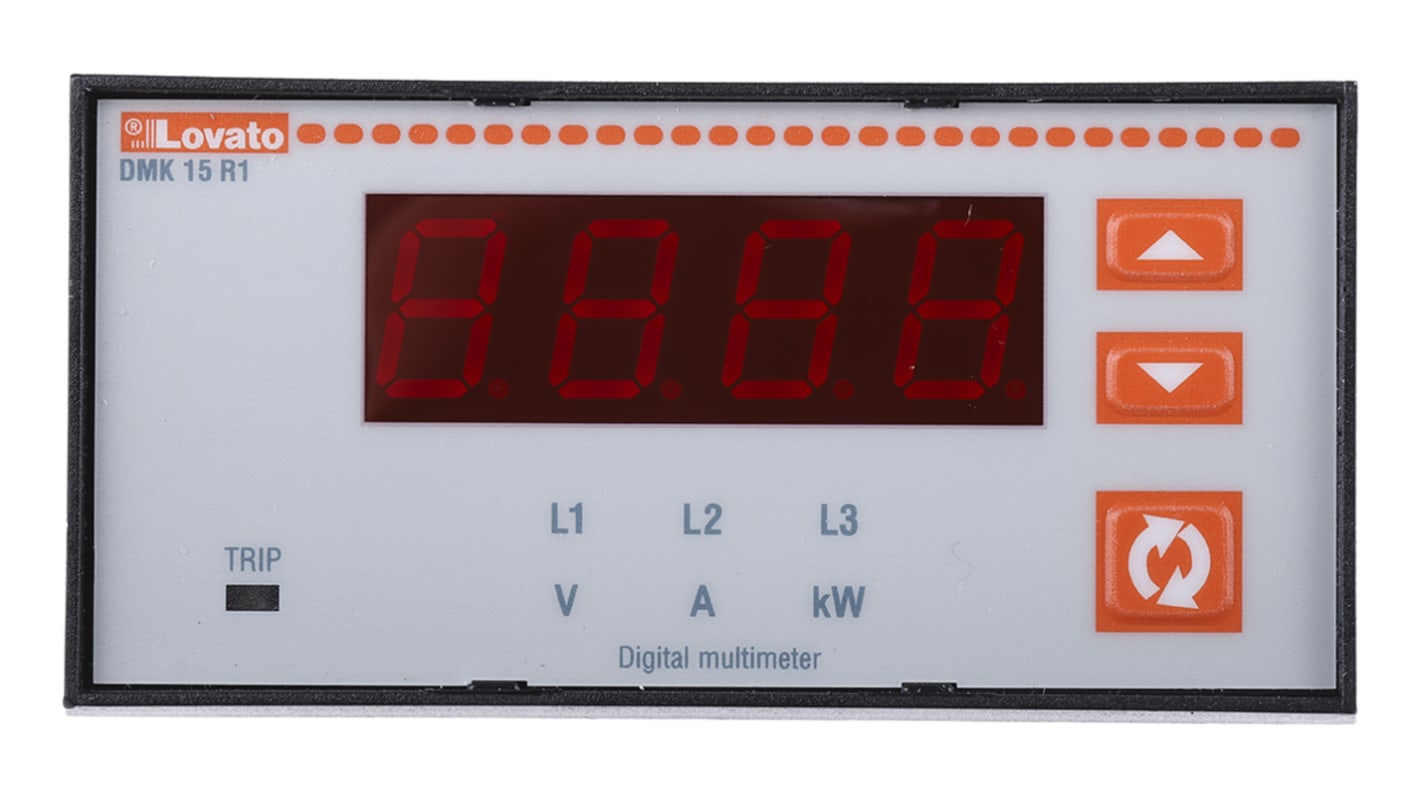

Lovato DMK LED Digital Panel Multi-Function Meter for Current, Power, Voltage, 45mm x 91mm

The modular digital metering instruments DMK15R1 for industrial and service fields warrant an extreme stability of the readouts owing to the large number of samplings.
The measures in TRMS provide for a correct operation of voltage and current with high harmonic content. The model are able to store and display maximum (HIGH) and minimum (LOW) values of the readouts.

Three-phase voltage, current and wattage meter with a LED display
Voltage and current measurements in True RMS
Protection function as phase loss and sequence, voltage and current asymmetry
Storing of minimum and maximum values
Programmable relay output (1 C/O)
Selection option for Automatic or Manual resetting
IP54 degree of protection on front
96x48mm size, panel mounting

This digital panel multi-function meter is designed for precise measurement in electrical systems, excelling in measuring current, power, and voltage. With a temperature range of -20°C to +60°C, it is suited for diverse operational conditions. The meter is cULus and EAC approved, ensuring compliance with international safety standards.

• Measures current, power, and voltage for comprehensive monitoring
• True RMS measurement for accurate readings under varying loads
• LED display provides clear visibility of metrics
• Supports phase-phase and phase-neutral voltage inputs
• Overload capacity of +20% ensures durability in challenging situations
• Removable terminals allow for easy installation and maintenance

• Used for monitoring three-phase electrical systems
• Appropriate for automation and control applications
• Ideal for energy management in industrial settings
• Suitable for electrical panel instrumentation

Yes, it operates between 45Hz and 66Hz.

Yes, it measures phase-phase voltage from 35V to 660V AC and phase-neutral voltage from 20V to 382V AC.

It operates efficiently in temperatures ranging from -20°C to +60°C.

Lovato Electric Series
