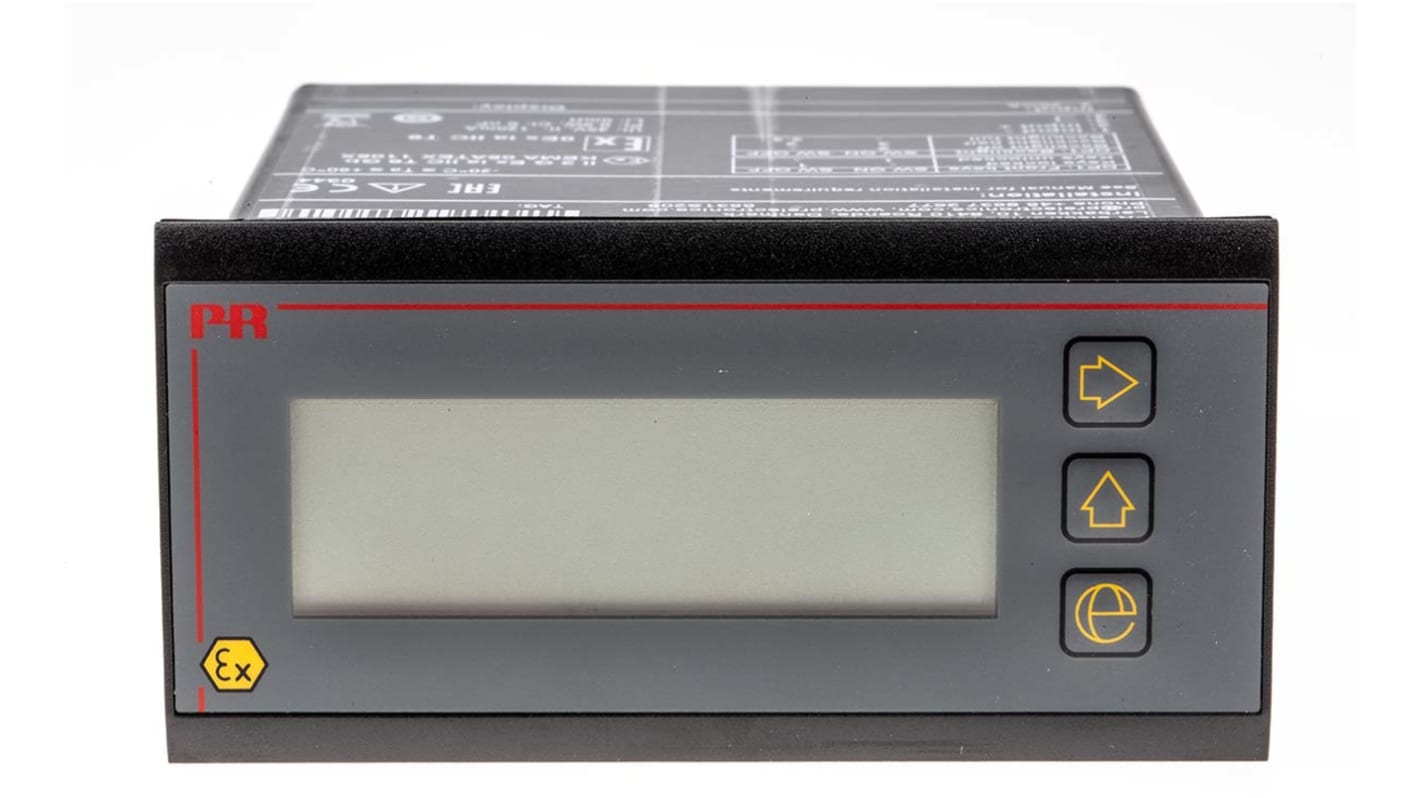

PR Electronics 5500 LCD Digital Panel Multi-Function Meter, 44.5mm x 91.5mm

모든 Multi Function Panel Meters 열람하기

Subtotal (1 unit)*

₩658,488.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩658,488.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
796-7073
제조사 부품 번호:
5531B
제조업체:
PR Electronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

PR Electronics

Display Type

LCD

Cutout Height

44.5mm

Cutout Width

91.5mm

Depth

120mm

Number of Digits

4

Digit Height

16 mm

Minimum Temperature

-20°C

Maximum Temperature

+60°C

Measurement Range

3.6 → 23mA

Series

5500

Approvals

DEMKO 02ATEX132122, EX II 1 G and EEx ia IIC T6

Meter Type

Loop Powered LCD Indicator

COO (Country of Origin):
DK

5500 Series - Loop-powered LCD Indicator


PR Electronics 5531 series are loop powered 1/8 DIN LCD panel indicators, designed to give a simple and efficient display in demanding applications. The 5531 indicator is powered by the 4 to 20 mA current loop and is easily scaled to display the correct process value. The front panel offers easy programming with 3 buttons that can be used to scale the display to any range between -9999 to 9999, and reverse display action is possible.

Features and Benefits


4 digit loop-powered LCD display
Indicator is powered by the 4 to 20 mA current loop
LCD backlight can be set to half or full intensity for easy viewing in low light conditions
Display is easily scaled to the correct process value (from -9999 to 9999)
Easy push-button configuration
Front push-buttons can be disabled to prevent unauthorized adjustment
5531A can be panel mounted in the safe area or I.S. / Ex Zone 2 (gas) (stock-no.: 796-6938)
5531B can be mounted in Ex Zone 0 (stock-no.: 796-7073)
5531B1 can be mounted in Ex Zone 2 and 22 (stock-no.: 827-5410)
5531B2 can be mounted in Ex Zone 1, 2, 21 and 22 (stock-no.: 827-5413)
