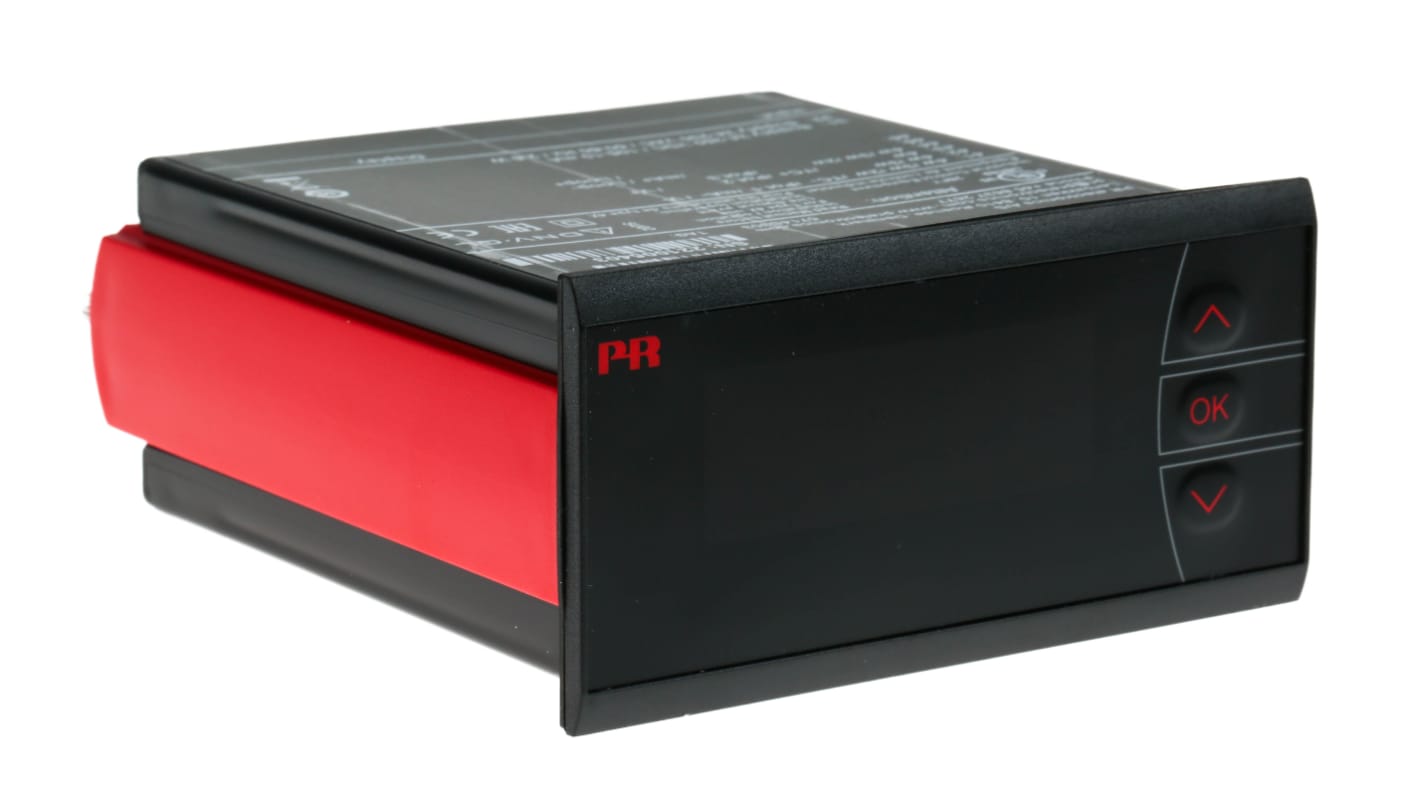

PR Electronics 5700 LED Process Indicator for Temperature, Resistance, Potentiometer Signal, Current, Voltage, 44.5 mm

모든 Multi Function Panel Meters 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩425,312.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 51 개 단위 배송 준비 완료
  • 추가로 2026년 2월 11일 부터 51 개 단위 배송
  • 추가로 2026년 3월 11일 부터 34 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩425,312.40
5 - 9₩408,317.20
10 +₩391,284.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
796-6932
제조사 부품 번호:
5714A
제조업체:
PR Electronics
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

PR Electronics

Product Type

Process Indicator

Properties Measured

Temperature, Resistance, Potentiometer Signal, Current, Voltage

Display Type

LED

Cutout Height

44.5mm

Cutout Width

91.5mm

Number of Digits

4

Depth

120mm

Digit Height

13.8mm

IsCalibrated

Yes

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

EN 61010-1, EN 61326-1, GOST R, UL 508

Series

5700

Meter Type

Programmable LED

Maximum Measurement

10 V

COO (Country of Origin):
DK

PR Electronics 5700 Range Programmable LED Indicators


The PR Electronics range of LED indicators features a display for a digital readout of current, voltage, resistance, temperature or potentiometer signals.

Features and benefits


• The PR Electronics 5700 series Multi-functional Panel Meters are characterised by their flexibility and stability.

• The panel meters meet nearly every demand for display readout of process signals and have universal input and supply capabilities.

• Engineered to provide a user-friendly, reliable relay of information, even in a demanding environment.

• The 5700 series are easily configured via PC, DIP switches or using built-in push buttons on the front of the unit making deployment fast and simple.

• Help texts available in eight languages.

Versions within the PR Electronics 5700 range


The 5714 LED indicator range features a 4 digit 14 segment LED display, with 2 relays and analogue output. These are programmable via the keys on the front.

The 5715 LED indicator range features a 4 digit 14 segment LED display, with 4 relays and analogue output. These are programmable either via the keys on the front or a PC.

How to mount the device?


This device should be mounted in panel front. The included rubber packing must be mounted between the panel cutout hole and the display front to obtain a protection degree of IP65.

For extra protection in extreme environments, there is a specially designed splash-proof cover available as an accessory - 796-7010.
