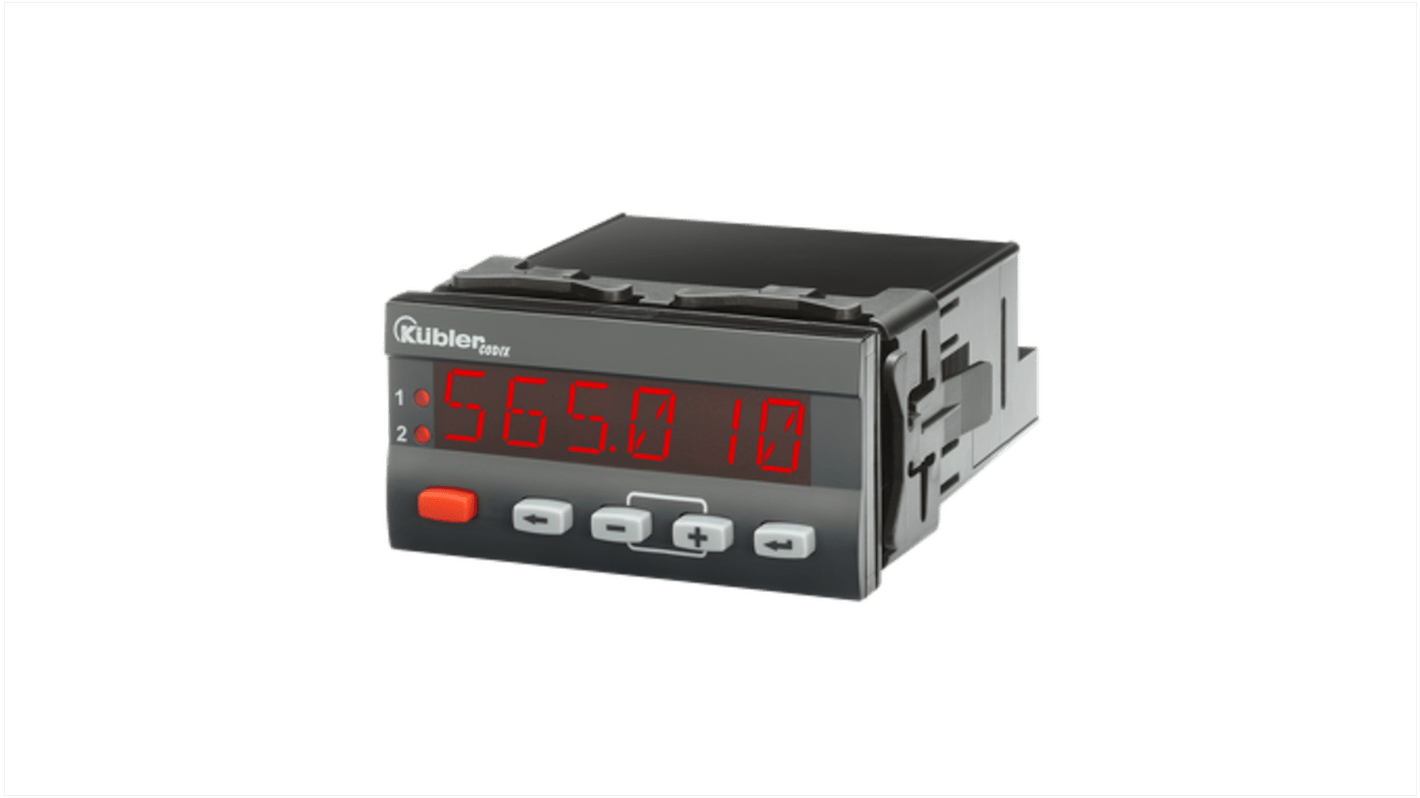

Kubler CODIX 565 LED Digital Panel Multifunction Meter for Voltage, Current, 45 mm x 92 mm
- RS 제품 번호:
- 791-5993
- Distrelec 제품 번호:
- 110-49-219
- 제조사 부품 번호:
- 6.565.010.000
- 제조업체:
- Kubler
Subtotal (1 unit)*
₩500,994.00
재고있음
- 3 개 단위 배송 준비 완료
- 추가로 2026년 6월 23일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩500,994.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 791-5993
- Distrelec 제품 번호:
- 110-49-219
- 제조사 부품 번호:
- 6.565.010.000
- 제조업체:
- Kubler
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Kubler | |
| Product Type | Digital Panel Multifunction Meter | |
| Properties Measured | Voltage, Current | |
| Display Type | LED | |
| Cutout Height | 45mm | |
| Number of Digits | 6 | |
| Depth | 90.5mm | |
| Cutout Width | 92mm | |
| Digit Height | 14mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | RoHS | |
| Meter Type | Digital | |
| Series | CODIX 565 | |
| Maximum Measurement | 10.5 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Kubler | ||
Product Type Digital Panel Multifunction Meter | ||
Properties Measured Voltage, Current | ||
Display Type LED | ||
Cutout Height 45mm | ||
Number of Digits 6 | ||
Depth 90.5mm | ||
Cutout Width 92mm | ||
Digit Height 14mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals RoHS | ||
Meter Type Digital | ||
Series CODIX 565 | ||
Maximum Measurement 10.5 V | ||
- COO (Country of Origin):
- DE
Kubler Process Controller
The Kubler process controller is enabled with a totaliser function that displays voltage and current analogue input signals in high resolution. Also, it can monitor and control 2 limit values. It has an easy-to-read, 6-digit 14-segment, LED display; easy-to-understand running help texts; and a practical quick-start guide that efficiently replaces time-consuming, full instruction manuals.
Features and Benefits
Simple programming via 4 keys on the front
Sampling rate of 10 readings per second
Power supply voltage rating is 100VAC to 240VAC
1 front key, as well as 2 additional inputs can be programmed for specific applications
Customer-specific characteristic (linearization) curve via 12 control points for all measurement signal inputs
Minimum/maximum memory function, individually resettable
2 relay outputs (changeover contacts) for limit monitoring with hysteresis and ON/OFF delay function for current
Display range is -199999 to 999999, with leading zero blanking
Inputs and outputs are galvanically isolated
Digital filter (first-order) for smoothing display fluctuation with unstable input signals
Tare function
Cut-out height of 45mm and width of 92mm and depth of 90.5mm
Operating temperature ranges between -20°C and 65°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
cRUus certified
