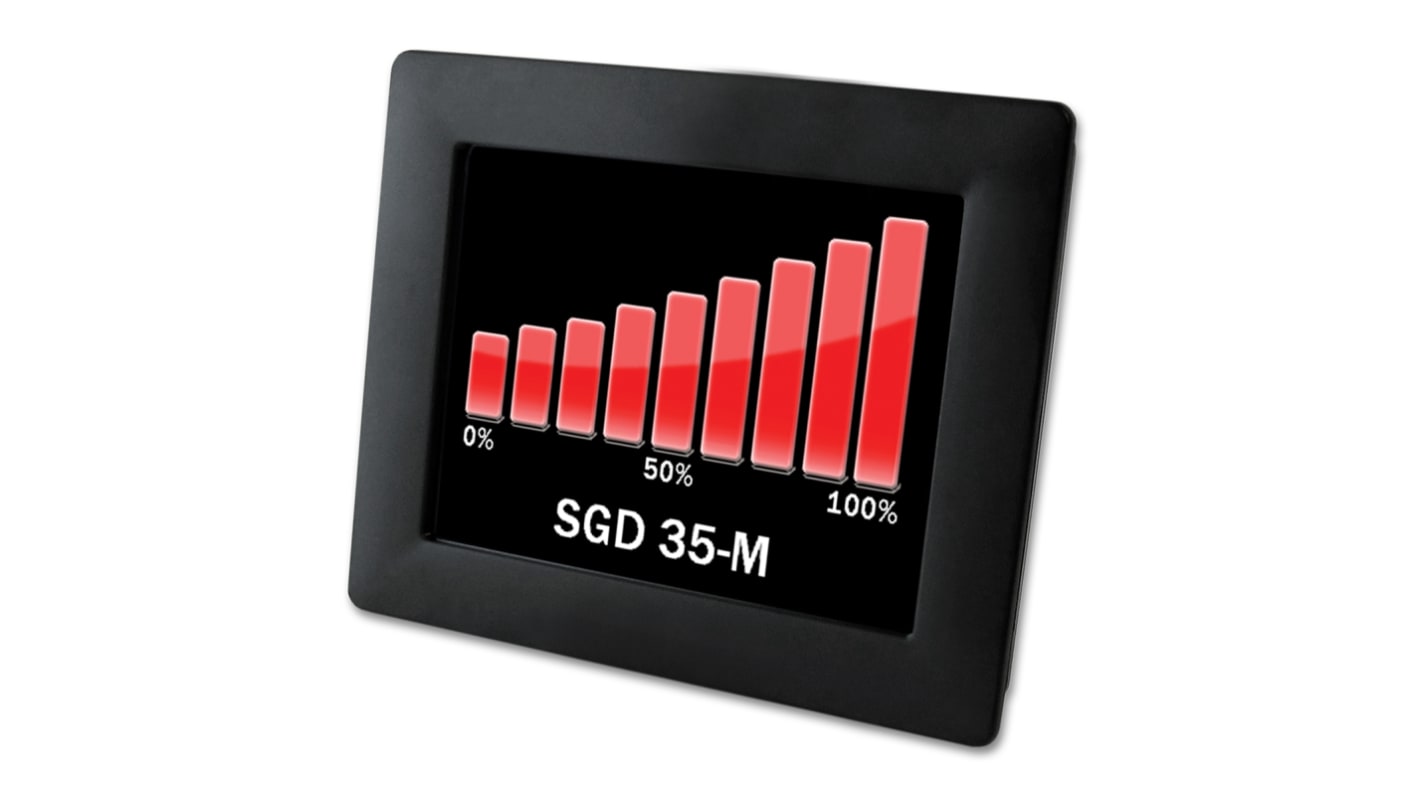

Lascar PanelPilot TFT Digital Panel Multifunction Meter for Voltage, 74 mm x 92 mm
- RS 제품 번호:
- 745-7793
- Distrelec 제품 번호:
- 302-52-005
- 제조사 부품 번호:
- SGD 35-M
- 제조업체:
- Lascar
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩224,396.80
재고있음
- 추가로 2026년 2월 18일 부터 8 개 단위 배송
- 추가로 2026년 3월 06일 부터 5 개 단위 배송
- 추가로 2026년 3월 20일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩224,396.80 |
| 5 - 9 | ₩215,429.20 |
| 10 + | ₩206,442.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 745-7793
- Distrelec 제품 번호:
- 302-52-005
- 제조사 부품 번호:
- SGD 35-M
- 제조업체:
- Lascar
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lascar | |
| Product Type | Digital Panel Multifunction Meter | |
| Properties Measured | Voltage | |
| Display Type | TFT | |
| Cutout Height | 74mm | |
| Depth | 18.4mm | |
| Cutout Width | 92mm | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | No | |
| Series | PanelPilot | |
| Meter Type | Digital | |
| Maximum Measurement | 240 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lascar | ||
Product Type Digital Panel Multifunction Meter | ||
Properties Measured Voltage | ||
Display Type TFT | ||
Cutout Height 74mm | ||
Depth 18.4mm | ||
Cutout Width 92mm | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals No | ||
Series PanelPilot | ||
Meter Type Digital | ||
Maximum Measurement 240 V | ||
- COO (Country of Origin):
- CN
Lascar Smart Graphics Display
The Lascar PanelPilot series 3.5in smart graphics display has a 320 x 240 pixels (QVGA) colour display and USB programming interface. By using the PanelPilot software (available for Windows 7, 8.1 and 10), users can choose from an increasing number of voltmeter types that can be customised as per their needs. The user can customise the colours, text labels, splash screen and input voltage scaling through the software and upload to the meter with the help of the USB connection. Once programming is complete, you can save all selections to the meter and computer, detach the unit and mount in their panel as they would any standard display.
Features and Benefits
Voltage measurement ranges from 0VDC and 40VDC
Multiple voltmeter configurations included free
pixels resolution TFT display with touch screen technology
Programmable via the USB interface
Accuracy is 0.05%
Simple panel mounting solution with screw terminal connection
Wide operating voltage of 4VDC to 30VDC
Digital Hold
Cut-out height of 75mm, width of 92mm and depth of 18.4mm
Operating temperature ranges between 0°C and 40°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
