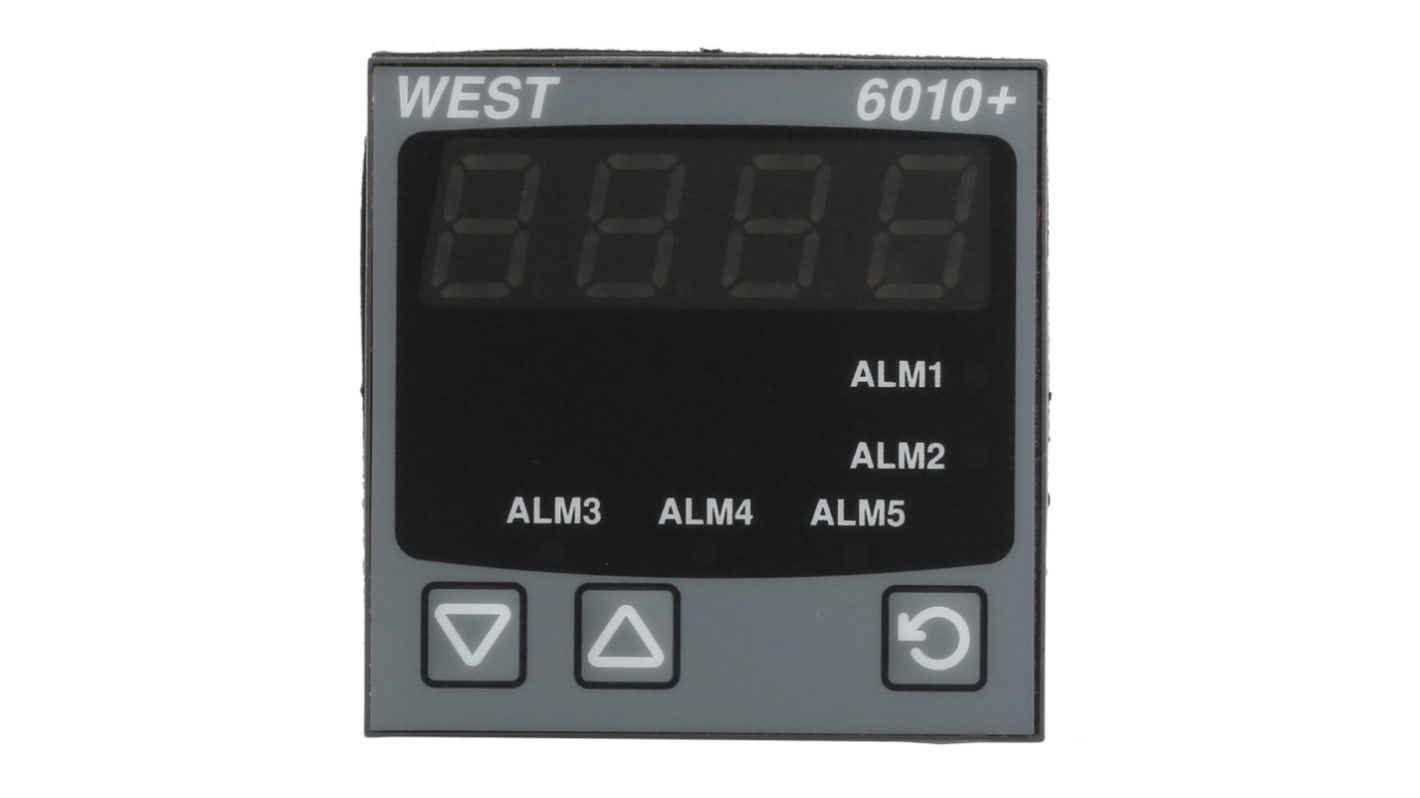

Name: West Instruments 6010 LED Process Indicator for RTD Temperature Prob, Temperature, 45 mm x 45 mm
Brand: West Instruments
SKU: 623-3751
Price: 431817.20 KRW
Availability: InStock

West Instruments Process Indicator

The West Instruments process indicator is a digital panel meter with high contrast and high visibility display. The indicator is designed for optimal ease of use in a wide variety of temperature and process-related applications. It provides a jumperless configuration, plug-in output boards and an efficient PC configurator for a quick and simple setup. Besides, the plug-in modules allow a PV retransmission or a transmitter power supply and up to 4 alarm relays (latching or non-latching).

Features and Benefits

Inputs is thermocouple, RTD and DC linear signals

Output is SPST and SPDT relays for single and dual alarm

Up to 4 outputs

Plug-in output modules for SSR driver, TRIAC, relay and linear outputs that are easily field changeable

Self-recognition of option boards that promote simple, error free set-up

Optional alarm relays are selectable as latching or non-latching

PC configurator with easy to use “wizard” suits both novice and experienced users

Modbus and ASCII communication

10V SSR driver output allows drive of up to 3 typical SSR/SCR inputs

Multi-point scaling and Tare features included as standard

4-digit 10mm LED display

Cut-out height of 45mm, width of 45mm and depth of 110mm

Operating temperature ranges between 0°C and 55°C

Certifications

CE certified

cRUus certified

IP66 rated

IP20 rated (Behind panel protection)

EN50082

ANSI/ESD S20.20:2014

BS EN 61340-5-1:2007

모두 선택	제품 정보	값
	브랜드	West Instruments
	Product Type	Process Indicator
	Properties Measured	RTD Temperature Prob, Temperature
	Display Type	LED
	Cutout Height	45mm
	Number of Digits	4
	Depth	110mm
	Cutout Width	45mm
	Digit Height	10mm
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	55°C
	Standards/Approvals	EN50082
	Series	6010
	Maximum Measurement	10 V
	Meter Type	Electronic

	모두 선택
	브랜드 West Instruments
	Product Type Process Indicator
	Properties Measured RTD Temperature Prob, Temperature
	Display Type LED
	Cutout Height 45mm
	Number of Digits 4
	Depth 110mm
	Cutout Width 45mm
	Digit Height 10mm
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 55°C
	Standards/Approvals EN50082
	Series 6010
	Maximum Measurement 10 V
	Meter Type Electronic
