Name: Lumel N24 LED Digital Panel Multi-Function Meter for AC Signal, 92mm x 45mm
Brand: Lumel
SKU: 171-8479
Price: 215861.60 KRW
Availability: InStock

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Lumel
	Properties Measured	AC Signal
	Display Type	LED
	Cutout Height	92mm
	Cutout Width	45mm
	Number of Digits	4
	Depth	64mm
	Digit Height	20 mm
	Minimum Temperature	-10°C
	Maximum Temperature	+55°C
	Measurement Range	0.01 → 1.2 A, 0.05 → 6 A, 1 → 120 V ac, 2.5 → 300 V ac, 20 → 500 Hz, 4 → 600 V ac
	Meter Type	Digital
	Minimum Measurement	0.01 A, 0.05 A, 1 V ac, 2.5 V ac, 4 V ac, 20 Hz
	Approvals	CE Certified
	Series	N24

	모두 선택
	브랜드 Lumel
	Properties Measured AC Signal
	Display Type LED
	Cutout Height 92mm
	Cutout Width 45mm
	Number of Digits 4
	Depth 64mm
	Digit Height 20 mm
	Minimum Temperature -10°C
	Maximum Temperature +55°C
	Measurement Range 0.01 → 1.2 A, 0.05 → 6 A, 1 → 120 V ac, 2.5 → 300 V ac, 20 → 500 Hz, 4 → 600 V ac
	Meter Type Digital
	Minimum Measurement 0.01 A, 0.05 A, 1 V ac, 2.5 V ac, 4 V ac, 20 Hz
	Approvals CE Certified
	Series N24

Datasheet

COO (Country of Origin):: PL

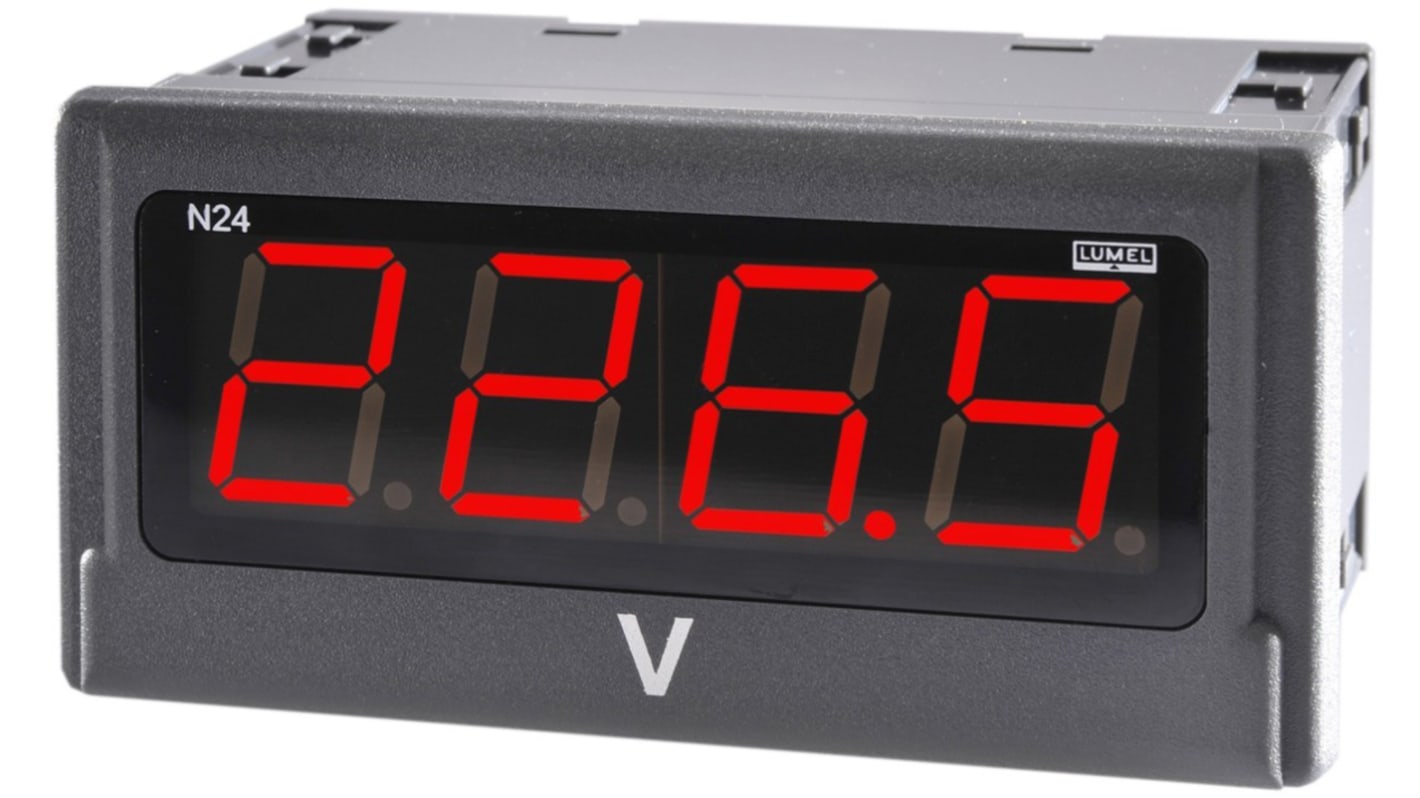

Lumel LED Digital Panel Multi-Function Meter

The Lumel N24 series 4-digit LED digital panel multi-function meter. It is designed to measure AC signal. Its service temperature ranges between -10°C and 55°C. Possible configuration of parameters is through the PD14 programmer and the free delivered LPConfig program.

Features and Benefits

• Automatic or manual compensation
• Measurement of averaging time
• Precision of displayed results
• Recounting of indications

Applications

• Commercial applications
• Industrial applications

Certifications

• CE certified
• EN 61000-6-2 accredited
• EN 61000-6-4 accredited
• EN 61010-1 accredited
• IP65 rated

Lumel N24 LED Digital Panel Multi-Function Meter for AC Signal, 92mm x 45mm

Lumel LED Digital Panel Multi-Function Meter

Features and Benefits

Applications

Certifications
