Aoip Instrumentation CALYS 75 Multi Function Calibrator, 20mA, 50V
- RS 제품 번호:
- 508-3729
- 제조사 부품 번호:
- CALYS 75
- 제조업체:
- Aoip Instrumentation
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
모든 Multi Function Calibrators 열람하기
- RS 제품 번호:
- 508-3729
- 제조사 부품 번호:
- CALYS 75
- 제조업체:
- Aoip Instrumentation
해당 안됨
- COO (Country of Origin):
- FR
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항

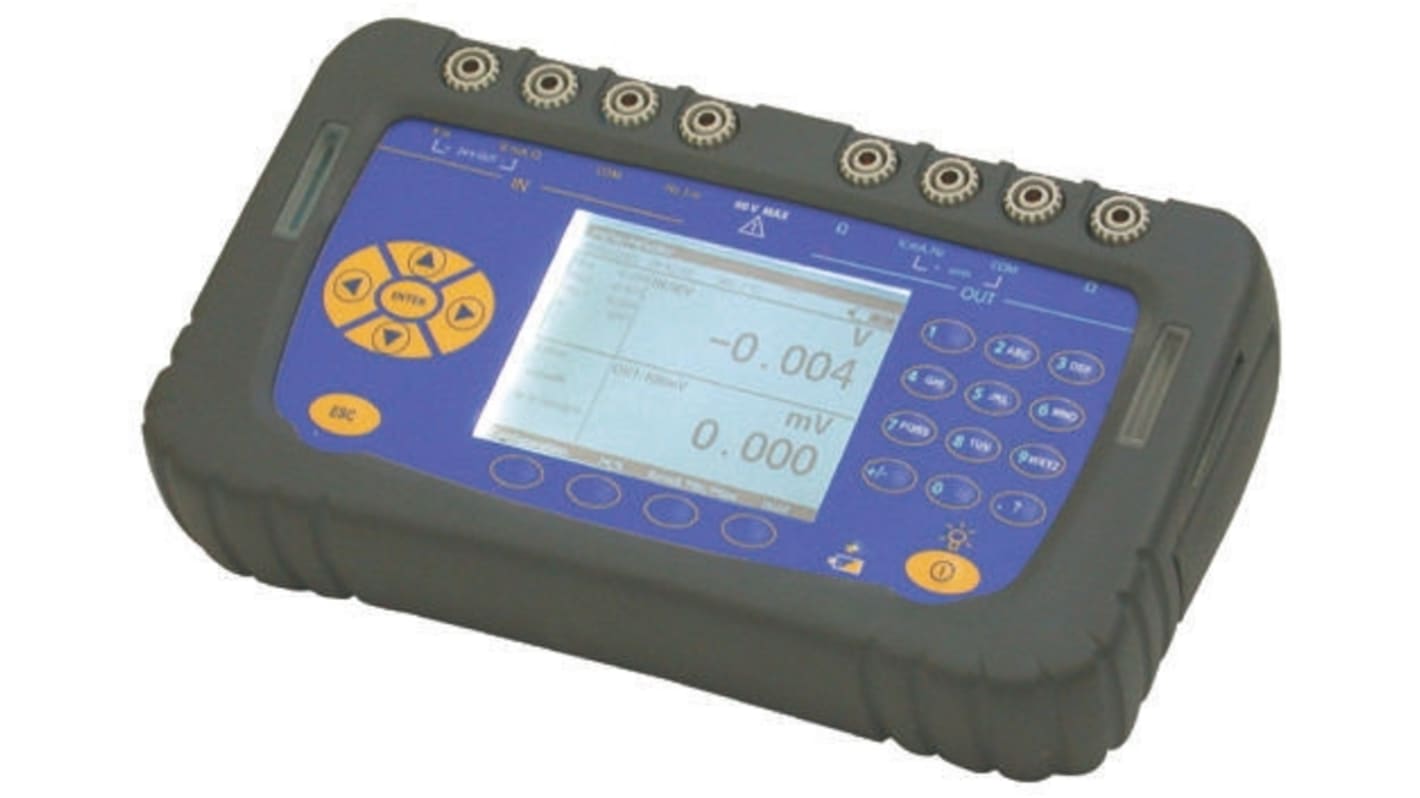

Aoip Instrumentation Calibrator
The Aoip Instrumentation calibrator is a basic multifunction calibrator from the CALYS range. It is the perfect tool for advanced process maintenance and can be used on the test bench in many industries. It is suitable for both field and lab measurements. This product can simultaneously measure and generate over two isolated channels, various signals of temperature, resistance, process and frequency in one single instrument. This calibrator is fully protected by an antichoc rubber holster. It integrates "easy connect" terminals and a wide backlit display that makes it easy to use in low light conditions. This tool gathers all the signals in the manufacturing process: voltage, current, resistance, temperature using resistance probes and thermocouples, frequency, counting and measurement and simulation of dry contacts.
Features and Benefits
Simultaneous measures and simulates current range up to 50mA and voltage up to 50V
Double display (measurement/emission) screen with an indication of date/time and ambient temperature
'Easy connect", ultra-simple connection system, which accepts sockets, bare wires, terminals and banana plugs as well as flat thermocouple connectors
Graphic screen display with date and time, backlit with adjustable contrast
Selectable display resolution of 1, 2 or 3 digits after the decimal point
Display of measurement statistics for min, max and average values
Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function
Integrated valve test
Scaling for quadratic and linear signals
Scaling for sensor correction
Compatible with HART transmitters
USB port for downloading software
Supplied with measurement wires, strap, stand for desktop use and fitted with a European plug
Relative pressure is 30bar and Absolute pressure is 1,000 bar
Double display (measurement/emission) screen with an indication of date/time and ambient temperature
'Easy connect", ultra-simple connection system, which accepts sockets, bare wires, terminals and banana plugs as well as flat thermocouple connectors
Graphic screen display with date and time, backlit with adjustable contrast
Selectable display resolution of 1, 2 or 3 digits after the decimal point
Display of measurement statistics for min, max and average values
Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function
Integrated valve test
Scaling for quadratic and linear signals
Scaling for sensor correction
Compatible with HART transmitters
USB port for downloading software
Supplied with measurement wires, strap, stand for desktop use and fitted with a European plug
Relative pressure is 30bar and Absolute pressure is 1,000 bar
Applications
Process control automation
Manufacturing
Instrumentation
Manufacturing
Instrumentation
Certifications
IP54 rated
21 CFR compliant
21 CFR compliant
사양
속성 | 값 |
Maximum Voltage Measurement | 50V |
Maximum Current Measurement | 20mA |
Port Connections | 3mm Wires, USB |
Battery Life | 8 h |
Battery Type | Lithium-ion |
Power Source | Mains |
Weight | 900g |
Height | 50mm |
Length | 210mm |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | 0°C |
Model Number p | CALYS 75 |
Width | 110mm |
