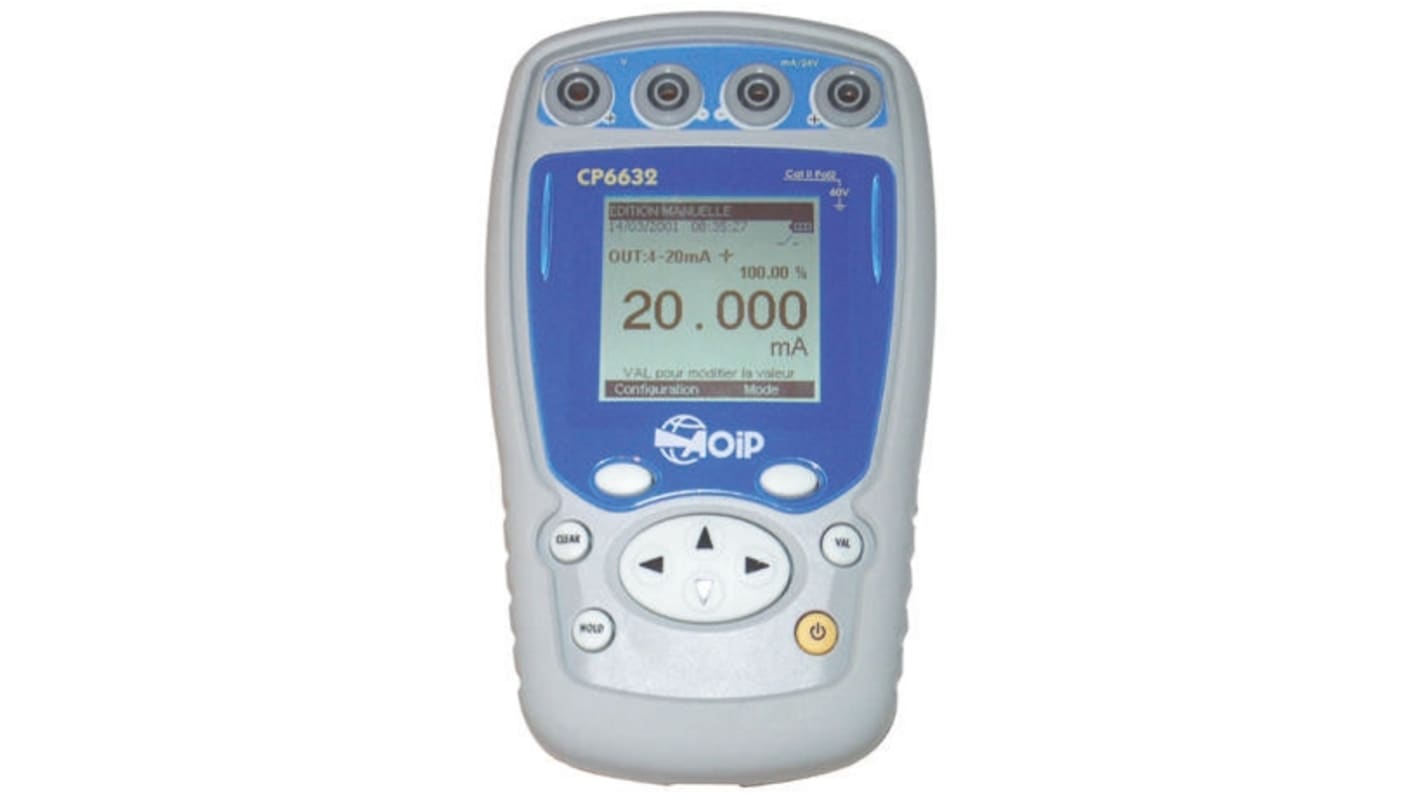

Aoip Instrumentation CP-6632 Current & Voltage Calibrator, Max Voltage 50V, Max Current 25mA
- RS 제품 번호:
- 508-3735
- 제조사 부품 번호:
- CP6632
- 제조업체:
- Aoip Instrumentation
본 제품군 열람하기
- RS 제품 번호:
- 508-3735
- 제조사 부품 번호:
- CP6632
- 제조업체:
- Aoip Instrumentation
해당 안됨
- COO (Country of Origin):
- FR
참조 문서
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- FR
제품 세부 사항
Aoip Instrumentation Current and Voltage Calibrator
The Aoip Instrumentation current and voltage calibrator is an accurate handheld instrument for process signals (150 ppm reading accuracy). This device measures or generates process current and voltage. It has a current measurement from 0mA to 25mA with 24V loop power supply and voltage from 0V to 50V. The calibrator is robust and easy-to-use. This tool has been designed to make maintenance operations easier on sensors and transmitters using process signals such as 4-20mA or 0-10V. The instrument is adapted to the various process installations due to scaling function and specific ranges. It is responsible for simulating ramps, steps, and fixed values to control process transmitters, panel meters and recorders.
Features and Benefits
Voltage/ current calibrator for process loops.
Current simulations from 0mA to 25mA with 24V loop power supply and voltage from 0V to 15V
High accuracy 0.015% reading with an adjustable resolution of 1mV and 1μA
Values displayed in A, mV and, %
Low temperature coefficient: 15ppm/°C in voltage and 20ppm/°C in current
Active or passive loop power supply
Measurements with HOLD function
Simulation of ramps, pre-programmed steps and synthesiser values
Display of minimum, maximum and average value
Delivered with 4 alkaline AA batteries in standard
Backlight enabled
Continuity test
Compatible with HART transmitters
Impact proof sheathing
USB socket for downloading
Supplied with measurement cables
Current simulations from 0mA to 25mA with 24V loop power supply and voltage from 0V to 15V
High accuracy 0.015% reading with an adjustable resolution of 1mV and 1μA
Values displayed in A, mV and, %
Low temperature coefficient: 15ppm/°C in voltage and 20ppm/°C in current
Active or passive loop power supply
Measurements with HOLD function
Simulation of ramps, pre-programmed steps and synthesiser values
Display of minimum, maximum and average value
Delivered with 4 alkaline AA batteries in standard
Backlight enabled
Continuity test
Compatible with HART transmitters
Impact proof sheathing
USB socket for downloading
Supplied with measurement cables
Applications
Electrical servicing and maintenance
Laboratories
Electronic servicing and maintenance
Industrial automation
Laboratories
Electronic servicing and maintenance
Industrial automation
Certifications
IP45 rated
EN 61010-1
EN 61000-4-2
EN 61000-4-3
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
EN 61000-3-2
EN 61000-3-3
EN 55022, class B
EN 61010-1
EN 61000-4-2
EN 61000-4-3
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
EN 61000-3-2
EN 61000-3-3
EN 55022, class B
사양
속성 | 값 |
Absolute Maximum Voltage Measurement | 50V |
Absolute Maximum Current Measurement | 25mA |
Best Accuracy | ±0.015 % |
Power Source | Battery |
Battery Type | AA |
Dimensions | 157 x 85 x 45mm |
Weight | 306g |
Height | 45mm |
Length | 157mm |
Maximum Operating Temperature | +50°C |
Maximum Source Current | 25mA |
Minimum Source Voltage | 0V |
Safety Category Voltage | 60V |
Minimum Operating Temperature | -10°C |
Safety Category Level | CAT II |
Minimum Source Current | 0mA |
Model Number p | CP-6632 |
Width | 85mm |
Maximum Source Voltage | 15V |
