Druck Genii IS Multi-Function Calibrator, 110 mA, 300V 183 mm 61 mm 130mm

RS 제품 번호:: 123-6025
제조사 부품 번호:: DPI620G-IS-PB
제조업체:: Druck

Druck Genii IS Multi-Function Calibrator, 110 mA, 300V 183 mm 61 mm 130mm

Subtotal (1 unit)*

₩27,687,328.50

1 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩27,687,328.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 123-6025
제조사 부품 번호:: DPI620G-IS-PB
제조업체:: Druck

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Druck
	Maximum Voltage Measurement	300V
	Product Type	Multi-Function Calibrator
	Accuracy	0.005 %FS
	Maximum Pressure Measurement	1000bar
	Port Connections	USB
	Battery Life	8h
	Maximum Current Measurement	110mA
	Battery Type	Rechargeable Nickel-Cadmium
	Power Source	Battery
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	50°C
	Weight	1.4kg
	Height	183mm
	Length	61mm
	Hazardous Area Certification	ATEX, IECEx, ETL
	Standards/Approvals	Pressure Equipment SEP, BS EN 610101:2010, BS EN 613261:2006, CE Mark
	Width	130mm
	Resolution	0.00001 Hz, 0.0001 mA, 0.01 °C, 0.01 Ω, 0.00001 V
	Model Number	Genii IS

	모두 선택
	브랜드 Druck
	Maximum Voltage Measurement 300V
	Product Type Multi-Function Calibrator
	Accuracy 0.005 %FS
	Maximum Pressure Measurement 1000bar
	Port Connections USB
	Battery Life 8h
	Maximum Current Measurement 110mA
	Battery Type Rechargeable Nickel-Cadmium
	Power Source Battery
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 50°C
	Weight 1.4kg
	Height 183mm
	Length 61mm
	Hazardous Area Certification ATEX, IECEx, ETL
	Standards/Approvals Pressure Equipment SEP, BS EN 610101:2010, BS EN 613261:2006, CE Mark
	Width 130mm
	Resolution 0.00001 Hz, 0.0001 mA, 0.01 °C, 0.01 Ω, 0.00001 V
	Model Number Genii IS

COO (Country of Origin):: CN

Druck Intrinsically Safe Advanced Modular Calibrators

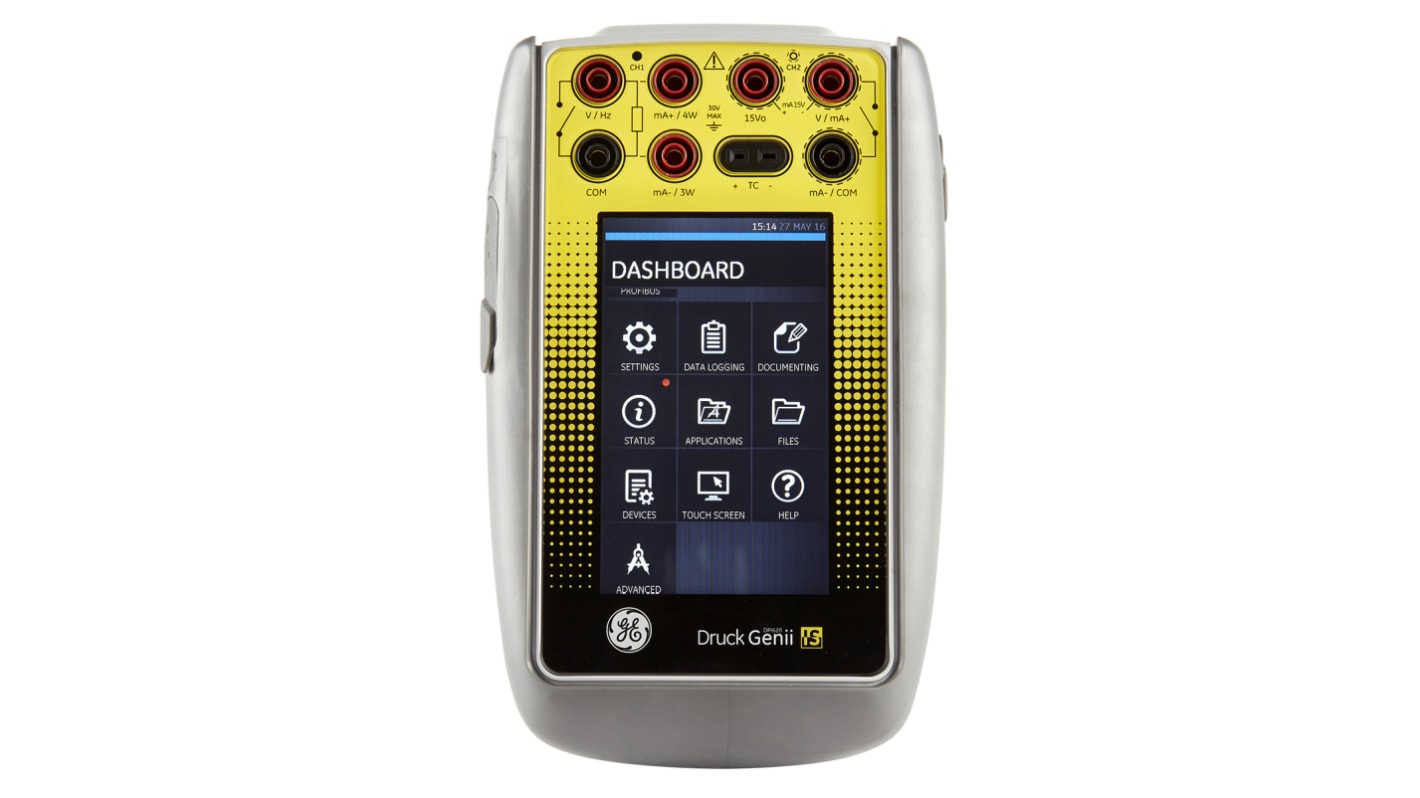

DPI 620 GENII IS is Druck's next-generation instrument for calibration, configuration and maintenance of electrical, frequency, pressure and temperature devices in measurement and control applications. It can measure and source a wide range of parameters simultaneously including mA, mV, V, Ohms, frequency, RTDs, T/Cs, and HART/Fieldbus digital signals. It includes a loop power supply to energise devices and control loops and a stabilised DC voltage supply for ratio metric transducers.

We have a variety of Druck Intrinsically Safe Advanced Modular Calibrators in our offer:

• DPI620G-IS-FFPB (123-6026) - Genii intrinsically safe advanced modular calibrator and HART/Fieldbus/Profibus communicator

• DPI620G-IS-L (123-6022) - Genii intrinsically safe advanced modular calibrator without communicator

• DPI620G-IS-PB (123-6025) - Genii intrinsically safe advanced modular calibrator and HART/Profibus communicator

• DPI620G-IS (123-6023) - Genii intrinsically safe advanced modular calibrator and HART communicator

• DPI620G-IS-FF (123-6024) - Genii intrinsically safe advanced modular calibrator and HART/Fieldbus

Features & Benefits

• Multifunction capabilities, electrical frequency, temperature and pressure

• HART, Foundation Fieldbus & Profibus communicator (depending on the choice of model)

• Optional Fieldbus communicator

• Modular re-arrangeable and expandable concept

• Each individual component can be used as a stand-alone instrument

• Allows significant inventory reductions

• Improves operator safety and simplifies training

• Reduces cost ownership

• Provides simultaneous measurement and source capabilities of mA, V, Ohms, frequency, pressure, RTDs and T/Cs, HART, Fieldbus for the set-up, testing and calibration of most types of process instruments. (Transmitters, transducers, gauges/indicators, switched, proximity detectors, counters, RTDs, thermocouple, and valve positioners

• ATEX and IECEx approval for hazardous zones 1 and 2

• Multi-functionality, a great feature of Druck's intrinsically safe, advanced modular calibration systems. Each one of the 4 interchangeable basic components perform duties that previously required a multitude of different systems.

• The easy-to-detach battery pack allows hot-swapping in hazardous areas and includes an LED charge indicator to show battery condition without the need to turn the device on

• Regularly used or customised routines can be saved in the favourites menu

• Intrinsically safe Lithium-Polymer battery provides reliable power for a full 8-hour shift

• Handheld unit compact and lightweight - only 1.1 kg/2.4 lb

• Data logging up to 32 Gb storage, enough for a complete database of procedures and results

• Fully documenting – automated procedures, PASS/FAIL errors, results storage

• 1-year uncertainty for mA 0.016% RDG + 0.0065% FS

• 1-year uncertainty for pressure from 0.025% FS

• weatherproof design enables it to handle the toughest jobs on site

The DPI 620-IS series combines an advanced multi-function calibrator with world-class pressure measurement generation, now available with a new and improved design:

• Smartphone technology, touch display and UI (user interface) which helps support gestures and swipes with a flatter menu structure

• A new digital platform and modems which support HART and Fieldbus applications

• A new dashboard, allowing a user to promptly launch applications

• The new TASK menu allows for single touch configuration, useful for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners

Did you know?

The "IS" in the name of the multifunction calibrator stands for intrinsically safe, if an item is intrinsically safe it means that it is incapable of releasing sufficient electrical and thermal energy under normal or abnormal conditions. This results in the item not being able to cause ignition of a specific hazardous atmospheric mixture in its most easily ignited concentration.
