Eaton 0.75 kW Motor Controller, 400V ac, 480 V ac, 3 Phase, 2.4A, Speed Controller Function

RS 제품 번호:: 252-156
제조사 부품 번호:: 198933 RASP5-2421PNT-4120000S1
제조업체:: Eaton

Eaton 0.75 kW Motor Controller, 400V ac, 480 V ac, 3 Phase, 2.4A, Speed Controller Function

Subtotal (1 unit)*

₩3,266,481.20

제조사가 재고 비축중

2026년 5월 19일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩3,266,481.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 252-156
제조사 부품 번호:: 198933 RASP5-2421PNT-4120000S1
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Product Type	Motor Controller
	Number of Phases	3
	Control Function	Speed Controller
	Output Voltage	480V
	Supply Voltage	400, 480V ac
	Current Rating	2.4A
	Power Rating	0.75kW
	Overall Length	270mm
	Overall Width	220mm
	Overall Depth	157mm
	IP Rating	IP65
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Standards/Approvals	UL 61800-5-1, CE, IEC/EN 61800-5-1, UL Approval, RoHS
	Series	Moeller

	모두 선택
	브랜드 Eaton
	Product Type Motor Controller
	Number of Phases 3
	Control Function Speed Controller
	Output Voltage 480V
	Supply Voltage 400, 480V ac
	Current Rating 2.4A
	Power Rating 0.75kW
	Overall Length 270mm
	Overall Width 220mm
	Overall Depth 157mm
	IP Rating IP65
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Standards/Approvals UL 61800-5-1, CE, IEC/EN 61800-5-1, UL Approval, RoHS
	Series Moeller

COO (Country of Origin):: GB

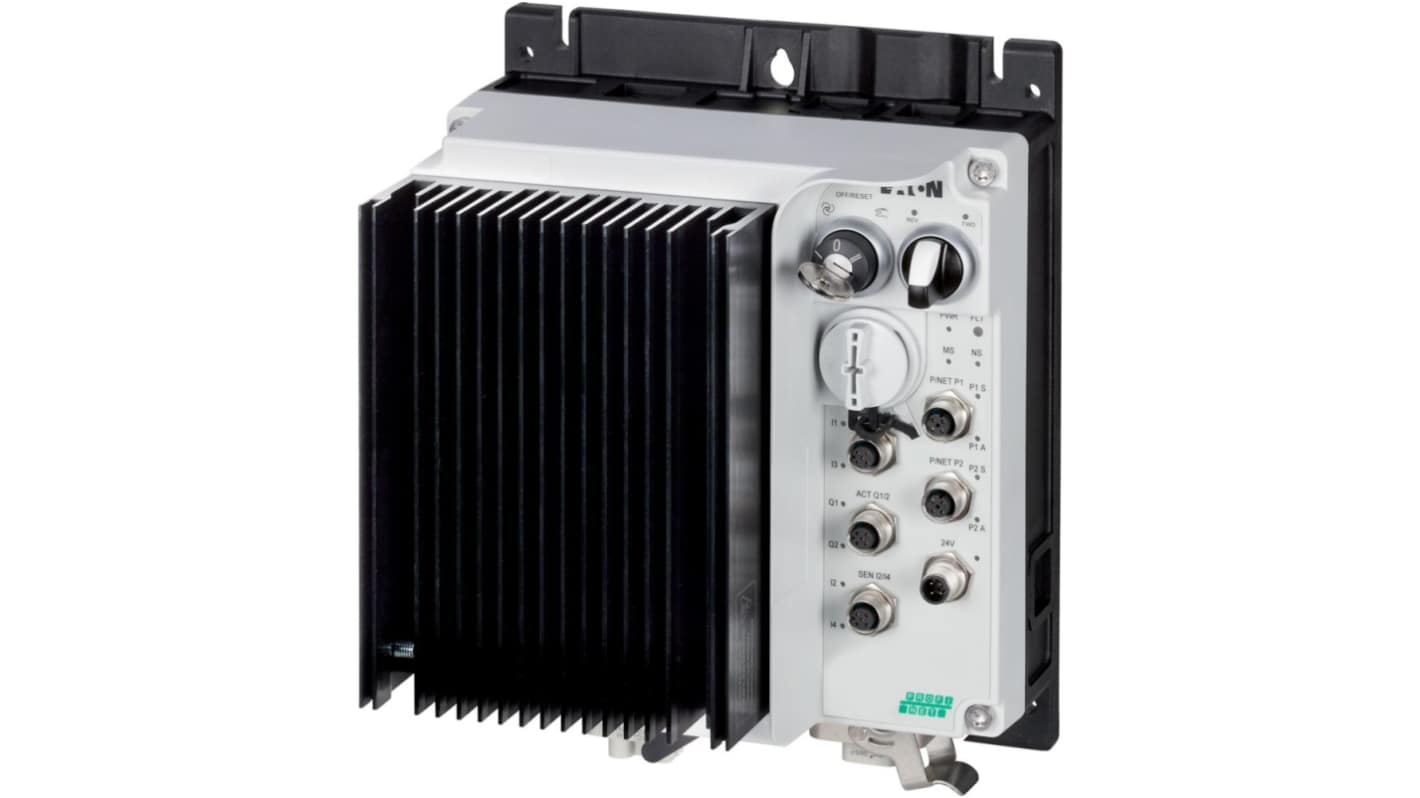

The Eaton Speed controller is expertly designed for the Eaton rapid Link, providing precision and high performance in controlling various motor types. Its robust construction accommodates a wide range of operational scenarios, from industrial to commercial applications. With capabilities for both U/f and vector speed control, this device ensures reliability, particularly in demanding environments.

Features a robust IP65 protection rating for harsh environments

Simplifies installation processes with flexible connection options

Designed to perform efficiently at high altitudes with reduced power output

Facilitates quick setup and operation through a user friendly keypad

Supports efficient energy use offering high operational efficiency ratings

Eaton 0.75 kW Motor Controller, 400V ac, 480 V ac, 3 Phase, 2.4A, Speed Controller Function
