ams OSRAM Surface Eval Kit Adapter Board 3.3 V 5 V, SPI, TSSOP, 16-Pin

RS 제품 번호:: 201-8321
제조사 부품 번호:: AS5147-TS_EK_AB
제조업체:: ams OSRAM

ams OSRAM Surface Eval Kit Adapter Board 3.3 V 5 V, SPI, TSSOP, 16-Pin

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩26,959.20

단종되는 중

최종적인 7 개 unit(s)이 배송 준비 됨

수량	한팩당
1 - 4	₩26,959.20
5 +	₩26,414.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 201-8321
제조사 부품 번호:: AS5147-TS_EK_AB
제조업체:: ams OSRAM

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ams OSRAM
	Sensor Type	Position Sensor
	Product Type	Eval Kit Adapter Board
	Technology	Analogue
	Mount Type	Surface
	Magnetic Type	Diametric
	Interface Type	SPI
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	5V
	Package Type	TSSOP
	Minimum Operating Temperature	-40°C
	Pin Count	16
	Maximum Operating Temperature	150°C
	Standards/Approvals	No
	Height	1.2mm
	Series	AS5147
	Length	5mm
	Width	6 mm
	Supply Current	15mA
	Automotive Standard	AEC-Q100

	모두 선택
	브랜드 ams OSRAM
	Sensor Type Position Sensor
	Product Type Eval Kit Adapter Board
	Technology Analogue
	Mount Type Surface
	Magnetic Type Diametric
	Interface Type SPI
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 5V
	Package Type TSSOP
	Minimum Operating Temperature -40°C
	Pin Count 16
	Maximum Operating Temperature 150°C
	Standards/Approvals No
	Height 1.2mm
	Series AS5147
	Length 5mm
	Width 6 mm
	Supply Current 15mA
	Automotive Standard AEC-Q100

DataSheet - AS5147-TS_EK_AB - MN

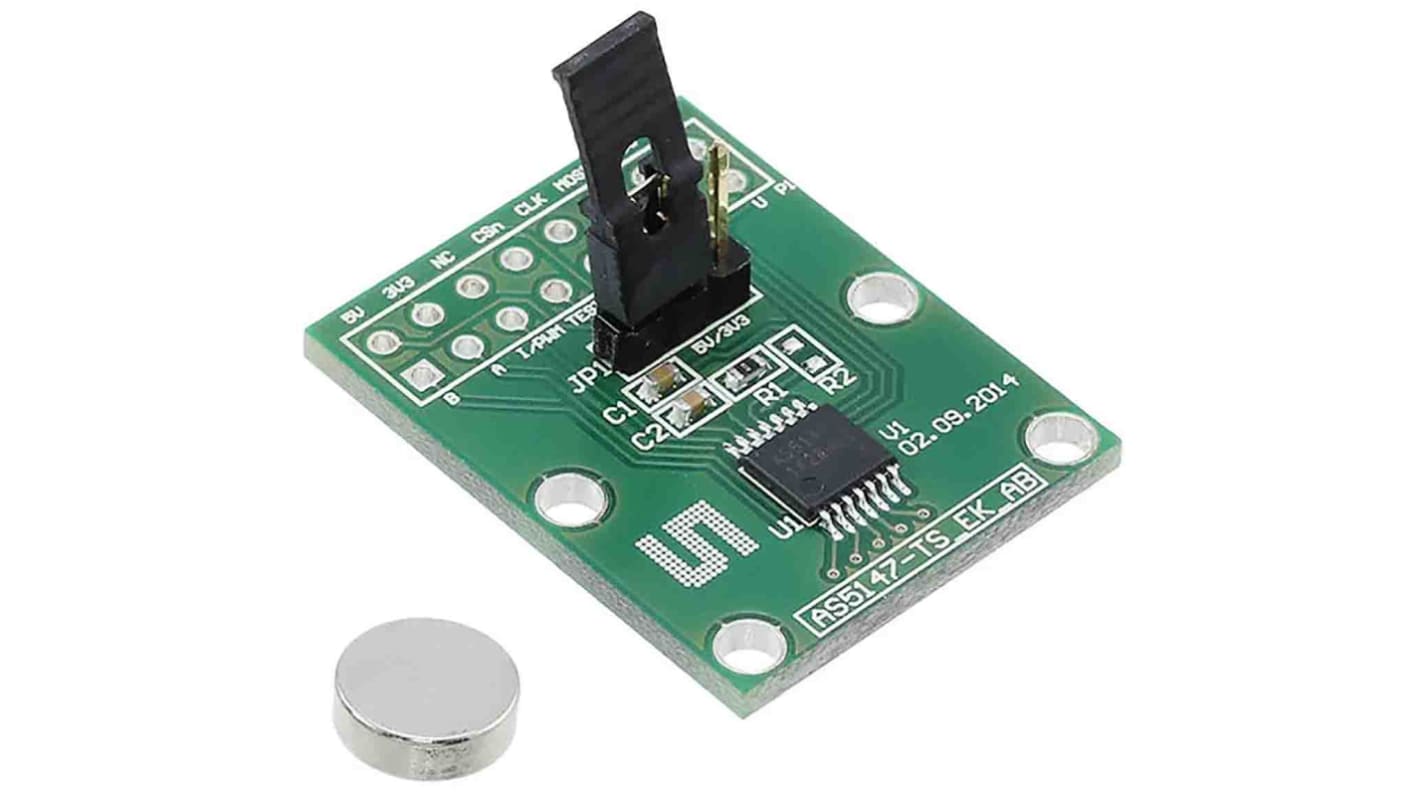

The ams AG 14 pin adapter board has a small PCB allowing simple and quick testing or evaluation of the magnetic position sensor without the need to build a test fixture or design an own PCB.

4x2.6mm mounting holes

JP1 connector

ams OSRAM Surface Eval Kit Adapter Board 3.3 V 5 V, SPI, TSSOP, 16-Pin
