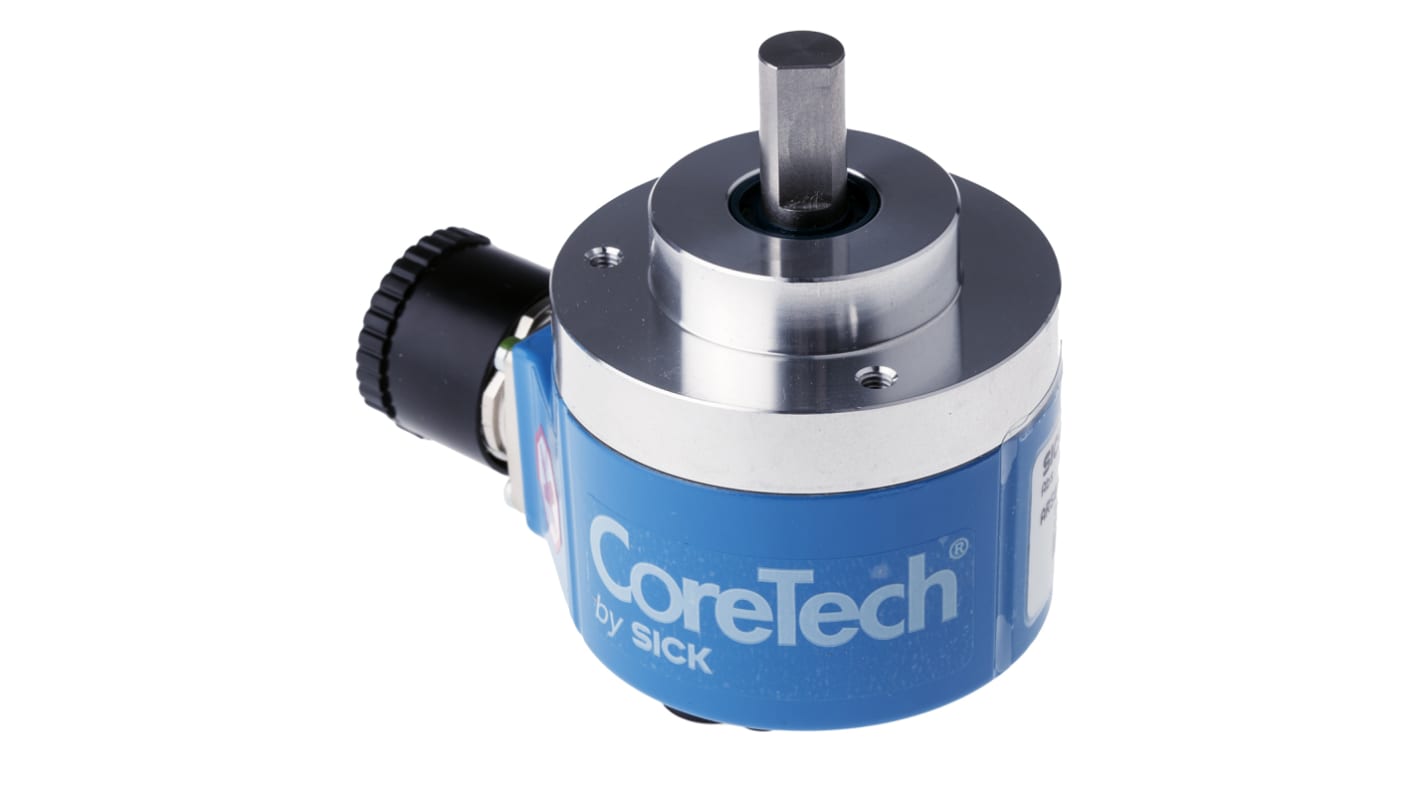

SICK ARS60 Series Absolute Absolute Encoder 32V dc, 8192 ppr ppr, SSI Signal, Solid Type, 10 mm Shaft

RS 제품 번호:: 492-9157
Distrelec 제품 번호:: 304-01-238
제조사 부품 번호:: ARS60-A4A08192 / 1031447
제조업체:: SICK

Subtotal (1 unit)*

₩1,989,760.00

제조사가 재고 비축중

2026년 11월 03일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩1,989,760.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 492-9157
Distrelec 제품 번호:: 304-01-238
제조사 부품 번호:: ARS60-A4A08192 / 1031447
제조업체:: SICK

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Product Type	Absolute Encoder
	Encoder Technology	Absolute
	Series	ARS60
	Pulses Per Revolution	8192ppr
	Maximum Revolutions	10000rpm
	Output Signal Type	SSI
	Shaft Type	Solid
	Shaft Diameter	10mm
	Interface Type	SSI-Grey
	Terminal Type	M12 Male Connector
	IP Rating	IP65
	Maximum Supply Voltage	32V dc
	Minimum Operating Temperature	-20°C
	Overall Depth	60mm
	Overall Height	78.5mm
	Overall Width	78.5mm
	Standards/Approvals	CE, cULus
	Mount Type	Flange
	Maximum Operating Temperature	85°C

	모두 선택
	브랜드 SICK
	Product Type Absolute Encoder
	Encoder Technology Absolute
	Series ARS60
	Pulses Per Revolution 8192ppr
	Maximum Revolutions 10000rpm
	Output Signal Type SSI
	Shaft Type Solid
	Shaft Diameter 10mm
	Interface Type SSI-Grey
	Terminal Type M12 Male Connector
	IP Rating IP65
	Maximum Supply Voltage 32V dc
	Minimum Operating Temperature -20°C
	Overall Depth 60mm
	Overall Height 78.5mm
	Overall Width 78.5mm
	Standards/Approvals CE, cULus
	Mount Type Flange
	Maximum Operating Temperature 85°C

COO (Country of Origin):: DE

SICK ARS60 Series Absolute Encoder, IP65, 32V Maximum Supply Voltage - ARS60-A4A08192 / 1031447

This absolute encoder provides single-turn positional feedback for industrial automation and control systems, delivering absolute angular data via an SSI-Grey interface. Designed for face-mount installation with a solid shaft and radial 12-pin connector, it operates across a wide temperature range and is suited to electrically noisy environments when screened cabling is used.

Features & Benefits

• High single-turn resolution 8192 steps for precise positioning
• Supply range 10V–32V ensures flexible system integration
• Robust enclosure rating IP65 when connector fitted for harsh sites
• Repeatability σr 0.005° supports tight control loops
• Bearing lifetime 3.6x10^9 revolutions minimises maintenance intervals

Applications

• Suitable for servo drives requiring accurate absolute position feedback
• Ideal for rotary indexing tables in assembly automation
• Used with PLCs needing SSI absolute position input
• Can be used for motor feedback in packaging machinery
• Suitable for test rigs requiring high repeatability over many cycles

What connector and wiring options are provided for integration?

A radial M23 12-pin male connector is fitted for direct plug-in

recommended screened SSI cabling and specific prewired cable assemblies are available for different lengths and connector styles.

What mechanical shaft specifics should be considered during installation?

The encoder uses a solid shaft design with 10mm diameter and 18 mm length

permissible loads are 20 N radial and 10 N axial and maximum operating torque is 0.3 Ncm.

How does the device perform under vibration and shock?

It tolerates shocks up to 50g for 11ms and vibration up to 20g across 10Hz–2000Hz in line with relevant EN tests.

What environmental storage and operating limits apply?

Operational temperatures range from −20°C to +85°C and storage from −40°C to +100°C with up to 90% relative humidity where condensation of optical scanning is prevented.

Note

The bus coupler (stock no. 492-9208) is required to form a fully functioning encoder
