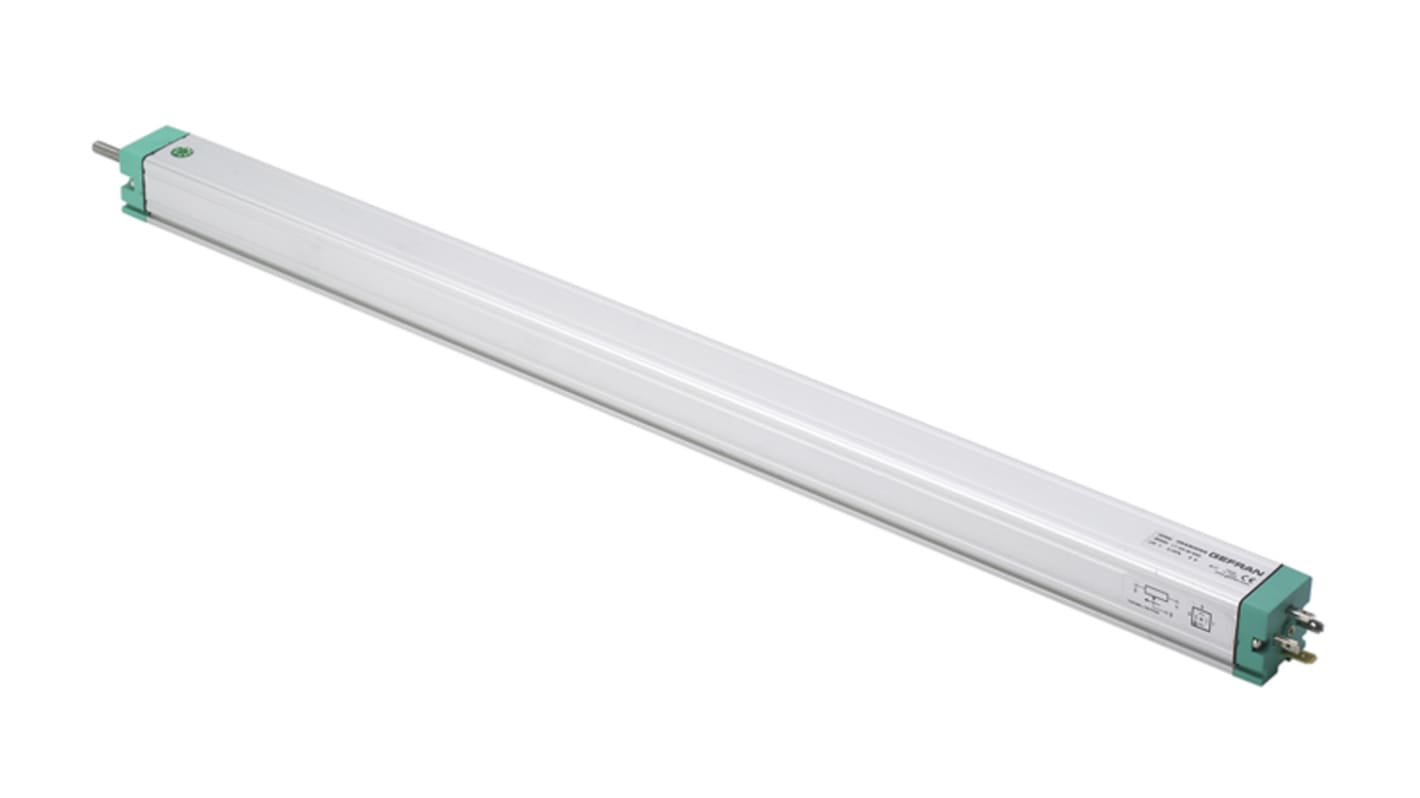

Gefran LT Series Linear Transducer Connector 60V
- RS 제품 번호:
- 332-2195
- 제조사 부품 번호:
- F003549/ LT-M-0225-S 0000X000X00
- 제조업체:
- Gefran
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩455,612.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩455,612.00 |
| 10 - 49 | ₩437,388.00 |
| 50 + | ₩419,162.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 332-2195
- 제조사 부품 번호:
- F003549/ LT-M-0225-S 0000X000X00
- 제조업체:
- Gefran
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Gefran | |
| Product Type | Linear Transducer | |
| Series | LT | |
| Resistance | 5kΩ | |
| Housing Material | Anodised Aluminium, Polyamide 66 | |
| Interface Type | Connector | |
| Stroke | 225 mm | |
| IP Rating | IP60 | |
| Maximum Supply Voltage | 60V | |
| Overall Depth | 33mm | |
| Overall Width | 570mm | |
| Standards/Approvals | CE, RoHS | |
| Overall Height | 34.5mm | |
| Maximum Operating Temperature | 100°C | |
| Resistance Tolerance | ±20 % | |
| 모두 선택 | ||
|---|---|---|
브랜드 Gefran | ||
Product Type Linear Transducer | ||
Series LT | ||
Resistance 5kΩ | ||
Housing Material Anodised Aluminium, Polyamide 66 | ||
Interface Type Connector | ||
Stroke 225 mm | ||
IP Rating IP60 | ||
Maximum Supply Voltage 60V | ||
Overall Depth 33mm | ||
Overall Width 570mm | ||
Standards/Approvals CE, RoHS | ||
Overall Height 34.5mm | ||
Maximum Operating Temperature 100°C | ||
Resistance Tolerance ±20 % | ||
- COO (Country of Origin):
- IT
LT series slide movement sensors
Linear movement sensors for servo control cylinder position.
Axle drive with M6 thread size and mounting with mobile stirrups.
No variation of electrical output signal outside theoretical electrical stroke.
Connector outputs, type DIN 43650 - ISO 4400 4
