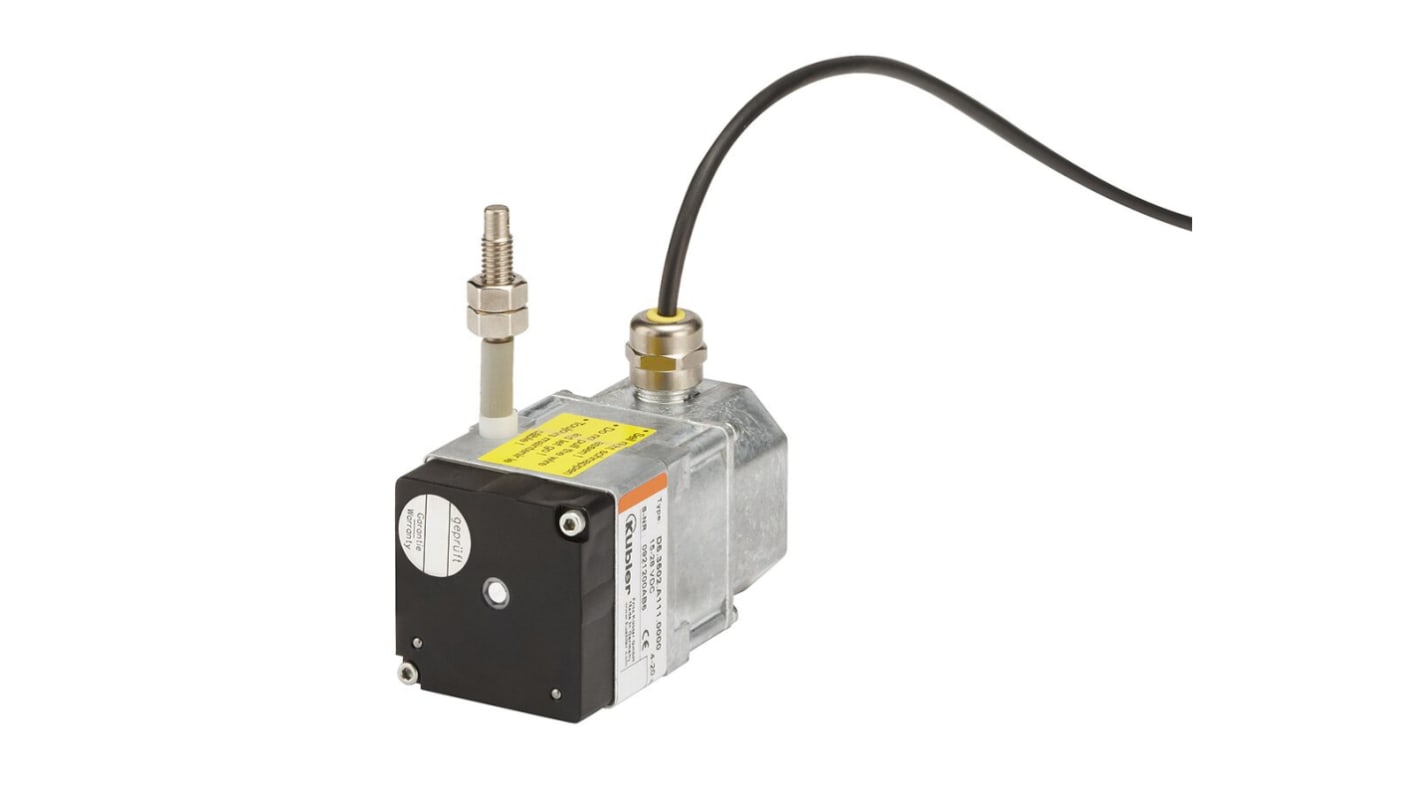

Kubler 3502 Series Linear Measuring Encoder, Analogue Signal

모든 Motion Control Sensors 열람하기

Subtotal (1 unit)*

₩1,084,102.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 +₩1,084,102.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
181-1071
Distrelec 제품 번호:
303-96-645
제조 부품 번호:
D5.3502.A221.0000
제조업체:
Kubler
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Kubler

Encoder Technology

Linear Measuring

Series

3502

Output Signal Type

Analogue

Stroke

2 m

Supply Voltage

15 → 28 V dc

Steps Per Revolution

Analogue

IP Rating

IP65

Overall Height

84mm

Overall Width

55mm

Overall Depth

40mm

Minimum Operating Temperature

0°C

Mounting Type

Wire Draw Encoder

Maximum Operating Temperature

+50°C

Connection Type

Cable

Current Rating

25 mA

COO (Country of Origin):
DE

Kubler Linear Encoder


The Kubler linear encoder 3502 series has an electrical rating of 15VDC to 28VDC, 25mA. This encoder has a miniature cable pull sensor, analogy miniature cable pull sensor with analogue output for length or distance measurement.

Features and Benefits


• Compact design
• Measuring length up to 2000mm
• Operating temperature ranges between 0°C and 50°C
• Robust construction
• Simple processing of analogue signal by means of a digital panel meter
• Voltage or current output

Applications


• Monitoring or controlling motion parameters such as speed, rate, direction, distance or position

Certifications


• IP65 rated
