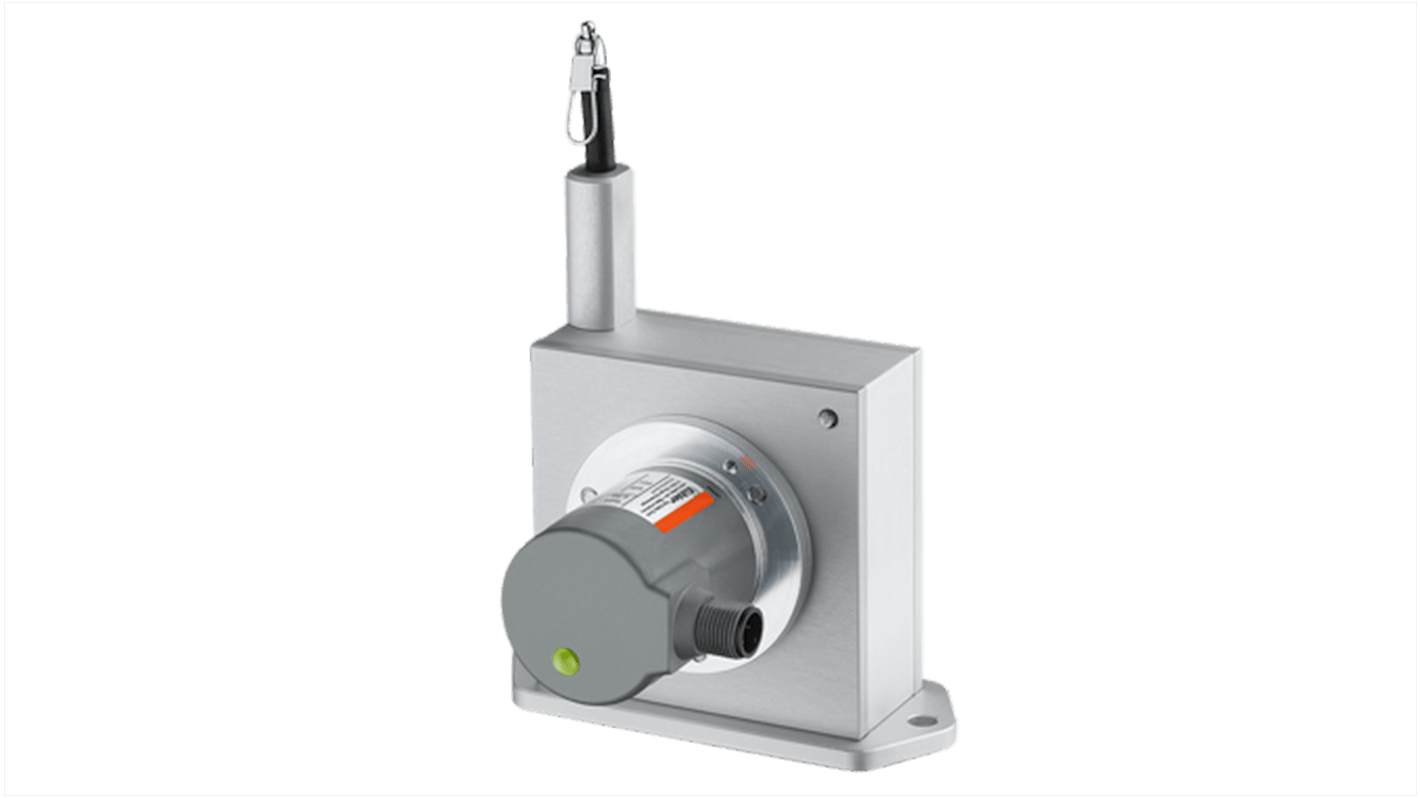

Kubler B80 Series Draw Wire Encoder, Analogue Signal
- RS 제품 번호:
- 179-7726
- Distrelec 제품 번호:
- 301-00-555
- 제조사 부품 번호:
- D8.3B1.0300.A113.0000
- 제조업체:
- Kubler
Subtotal (1 unit)*
₩1,422,502.00
재고있음
- 4 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,422,502.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 179-7726
- Distrelec 제품 번호:
- 301-00-555
- 제조사 부품 번호:
- D8.3B1.0300.A113.0000
- 제조업체:
- Kubler
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Kubler | |
| Series | B80 | |
| Output Signal Type | Analogue | |
| Supply Voltage | 12 → 30 V dc | |
| IP Rating | IP65 | |
| Overall Height | 168.3mm | |
| Overall Width | 110mm | |
| Overall Depth | 45mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Current Rating | 50 mA | |
| Connection Type | 4 Pin M12 Connector | |
| 모두 선택 | ||
|---|---|---|
브랜드 Kubler | ||
Series B80 | ||
Output Signal Type Analogue | ||
Supply Voltage 12 → 30 V dc | ||
IP Rating IP65 | ||
Overall Height 168.3mm | ||
Overall Width 110mm | ||
Overall Depth 45mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Current Rating 50 mA | ||
Connection Type 4 Pin M12 Connector | ||
- COO (Country of Origin):
- DE
Kubler Rotary Encoder
The Kubler B80 series rotary encoder has an electrical rating of 12VDC to 30VDC and 50mA. The draw wire encoder mechanics can be used up to a measuring length of 3 meters. These draw wire encoder mechanics can be combined with the proven Kubler Sendix encoders with an incremental or absolute interface, as well as with analogue sensors. It is made from titanium-anodized aluminium housing and the stainless steel wires make it suitable to use the mechanics in harsh conditions.
Features and Benefits
• High acceleration, up to 140 m/s²
• High traverse speed, up to 10 m/s
• Interchangeable encoders
• Quick fastening by means of two screws
• Various connection possibilities available
• Various wire types and wire fastenings
• Wear-free wire exit. Has a 4pin M12 connector
• High traverse speed, up to 10 m/s
• Interchangeable encoders
• Quick fastening by means of two screws
• Various connection possibilities available
• Various wire types and wire fastenings
• Wear-free wire exit. Has a 4pin M12 connector
Applications
• Outdoor applications
Certifications
• IP65 rated
