Kubler D120 Series Draw Wire Encoder, Analogue Signal

모든 Motion Control Sensors 열람하기

Subtotal (1 unit)*

₩1,658,836.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩1,658,836.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
179-7721
Distrelec 제품 번호:
303-96-646
제조사 부품 번호:
D8.D120.6311.A113.0000
제조업체:
Kübler
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Kübler

Series

D120

Output Signal Type

Analogue

Supply Voltage

12 → 30 V dc

IP Rating

IP67

Overall Height

233mm

Overall Width

120mm

Overall Depth

133mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+85°C

Connection Type

M12 Connector

COO (Country of Origin):
DE

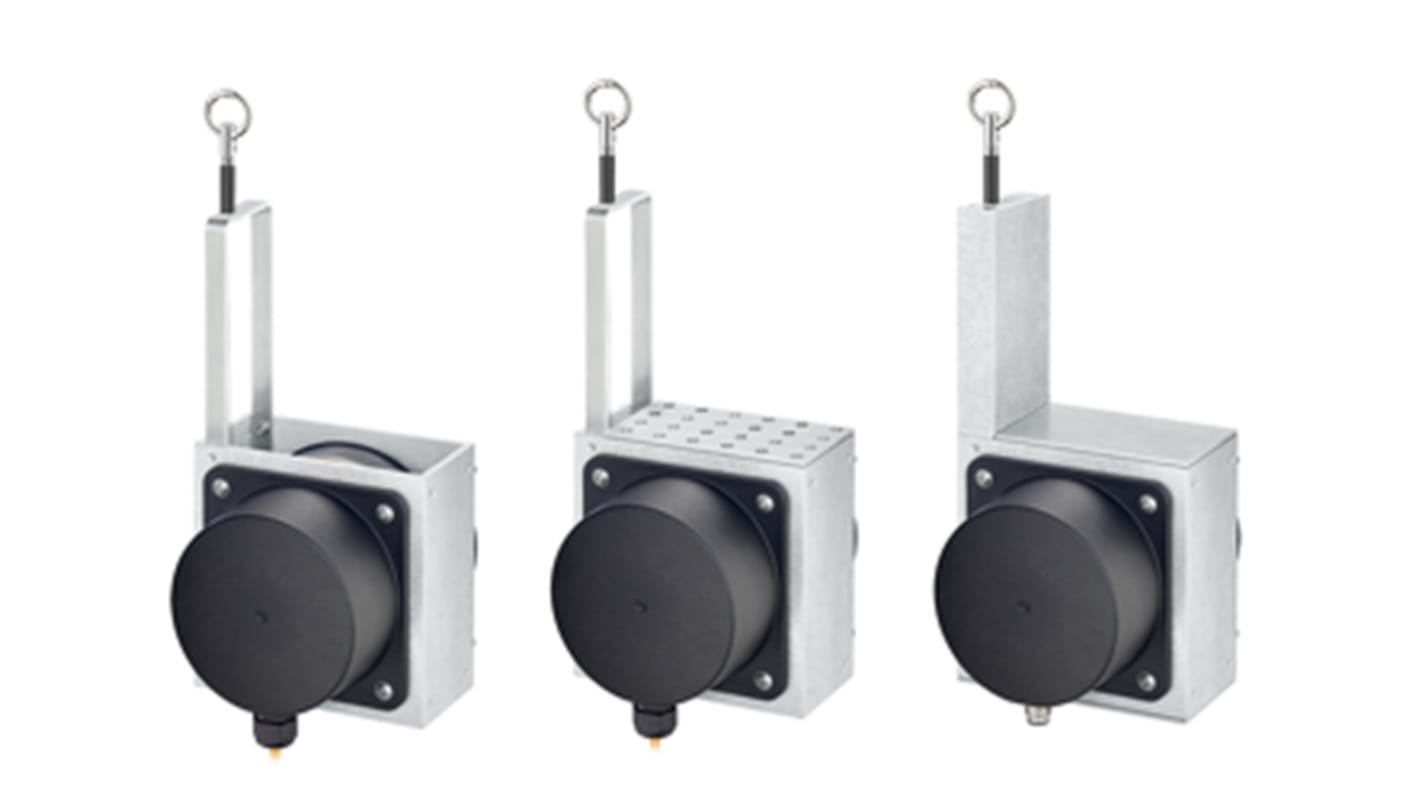

Kubler Rotary Encoder


The Kubler D120 series rotary encoder has an electrical rating of 12VDC to 30VDC. This device has an extremely robust construction. The high protection level and wide temperature range make these new draw wire encoder particularly reliable and durable. Their flexibility and adaptability reflect in the wide range of housing and wire types, the long measuring range and the various interfaces.

Features and Benefits


• Linearity up to ±0.1 % of the measuring range
• Measuring length up to 4m
• Operating temperature ranges between -40°C and 85°C
• Redundant output (mA, V, R, CANopen)
• The right measuring wire and the right wire fastening for every application
• The titanium-anodized aluminium housing and the stainless steel wires make it suitable to be used in harsh conditions
• Various constructions: open, closed housing or housing with perforated sheet steel cover. Has M12 connector

Applications


• Ideal for outdoor applications

Certifications


• IP67 rated
