RS PRO Linear Transducer, 4mm Shaft

RS Stock No.:: 173-0772
Brand:: RS PRO

Image representative of range

Bulk discount available

Subtotal (1 box of 5 units)*

₩1,596,759.20

일시적 품절

2026년 4월 13일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Units	Per unit	Per Box*
5 - 5	₩319,351.84	₩1,596,757.32
10 - 45	₩311,367.48	₩1,556,835.52
50 +	₩256,255.28	₩1,281,276.40

*price indicative

RS Stock No.:: 173-0772
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	브랜드	RS PRO
	Series	149618
	Shaft Diameter	4mm

	Select all
	브랜드 RS PRO
	Series 149618
	Shaft Diameter 4mm

COO (Country of Origin):: CN

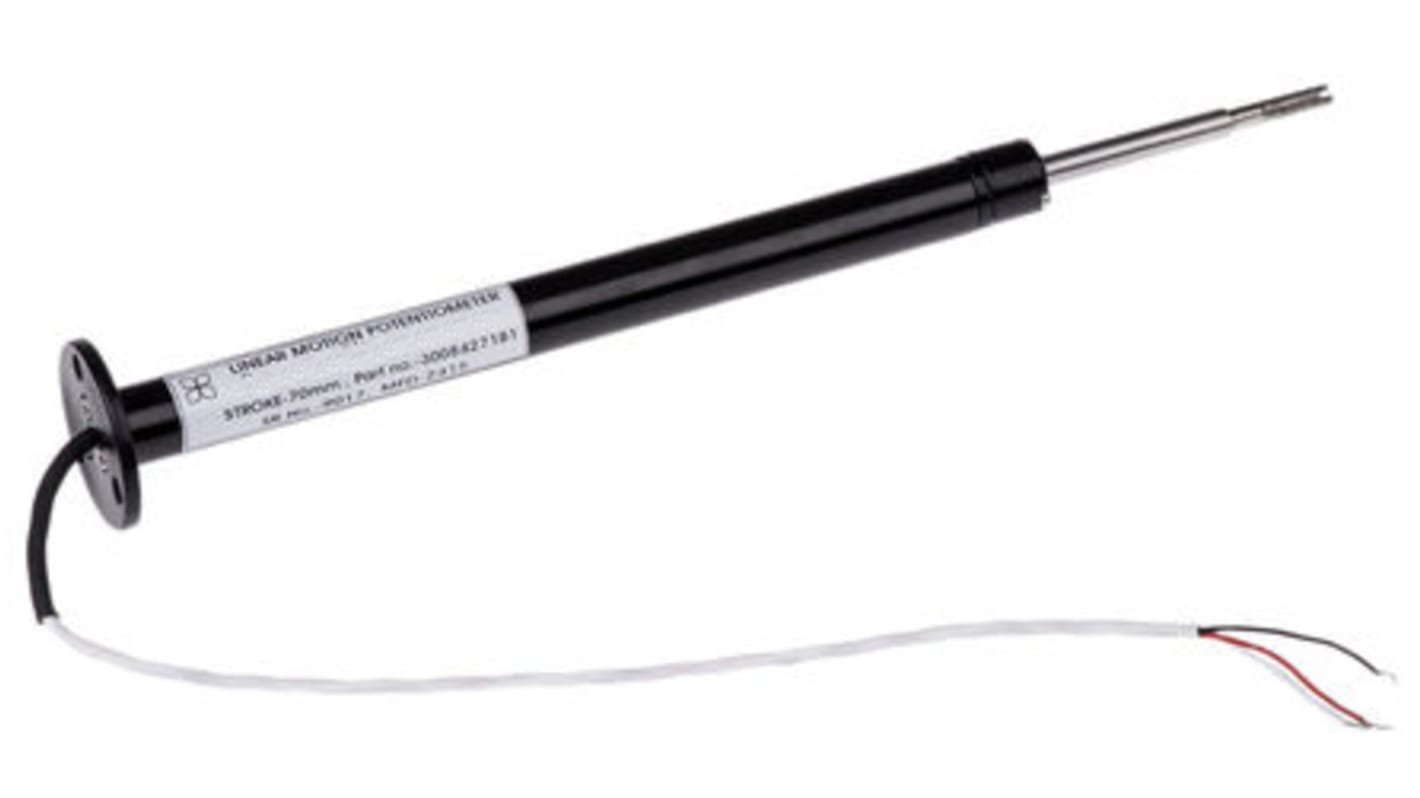

RS Conductive Plastic Linear Motion Potentiometer (Screw Driver Slot)

This series of linear potentiometers provide resistance of 10KΩ and are constructed from a long life conductive plastic resistance element with anodised aluminium housing.

Standard resistance tolerance of ±30%
842-7181 has a stroke length of 70mm
842-7188 has a stroke length of 50mm
Electrical life of 100,000 strokes
Essentially infinite resolution

RS PRO Linear Transducer, 4mm Shaft

RS Conductive Plastic Linear Motion Potentiometer (Screw Driver Slot)
